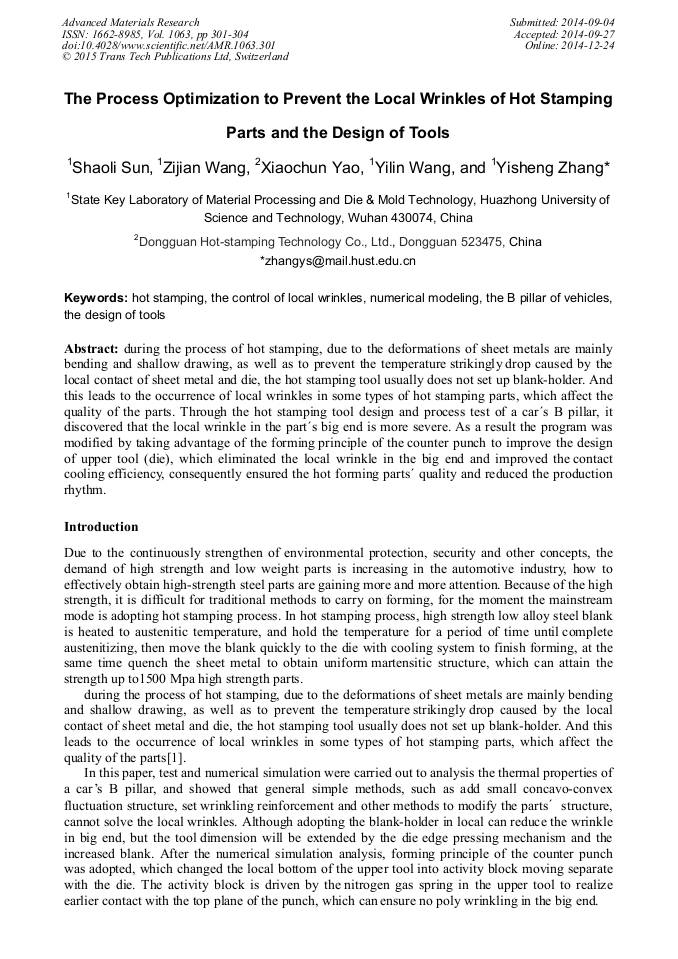

The Process Optimization to Prevent the Local Wrinkles of Hot Stamping Parts and the Design of Tools

Abstract:

During the process of hot stamping, due to the deformations of sheet metals are mainly bending and shallow drawing, as well as to prevent the temperature strikingly drop caused by the local contact of sheet metal and die, the hot stamping tool usually does not set up blank-holder. And this leads to the occurrence of local wrinkles in some types of hot stamping parts, which affect the quality of the parts. Through the hot stamping tool design and process test of a car ́s B pillar, it discovered that the local wrinkle in the part ́s big end is more severe. As a result the program was modified by taking advantage of the forming principle of the counter punch to improve the design of upper tool (die), which eliminated the local wrinkle in the big end and improved the contact cooling efficiency, consequently ensured the hot forming parts ́ quality and reduced the production rhythm.

• Periodical: Advanced Materials Research (Volume 1063)
• Pages: 301-304
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1063.301
• Online since: December 2014
• Authors: Shao Li Sun, Zi Jian Wang, Xiao Chun Yao, Yi Lin Wang, Yi Sheng Zhang*
• Keywords: B Pillar of Vehicles, Control of Local Wrinkles, Design of Tools, Hot Stamping, Numerical Modeling

References

[1] Chao Wang, Bin Zhu, Yisheng Zhang, Jie Shi, Han Dong, Stamping Process Simulation and Optimize Research for Collision Beam of Automobile Door, Journal of Advanced Materials Research Vols. 201-203 (2011) pp.3-8.

DOI: 10.4028/www.scientific.net/amr.201-203.3

[2] Chao Wang, YiSheng Zhang, XiaoWei Tian, Bin Zhu, Jian Li, Thermal contact conductance estimation and experimental validation in hot stamping process, SCIENCE CHINA-TECHNOLOGICAL, JUL. 2012, Vol. 55, 7: 1852-1857.

DOI: 10.1007/s11431-012-4871-0

[3] Zhong-xiang Gui, Wei-kang Liang, Yong Liu, Yi-sheng Zhang, Thermo-mechanical behavior of the Al–Si alloy coated hot stamping boron steel, Materials & Design, Volume 60, August 2014, Pages 26-33.

DOI: 10.1016/j.matdes.2014.03.011

[4] H. Karbasian, A.E. Tekkaya, A review on hot stamping, Journal of Materials Processing Technology, 210 (2010) 2103–2118.

DOI: 10.1016/j.jmatprotec.2010.07.019

[5] Zhong-xiang GUI, Wei-kang LIANG, Yi-sheng ZHANG, Formability of aluminum silicon coated boron steel in hot stamping process , Trans. Nonferrous Met. Soc. China 24(2014) 1750-1757.

DOI: 10.1016/s1003-6326(14)63249-0

[6] Gui Z X, Liang W K, Zhang Y S. Enhancing ductility of the Al-Si coating on hot stamping steel by controlling the Fe-Al phase transformation during austenitization. Sci China Tech Sci, 2014, 57: 1-9.

DOI: 10.1007/s11431-014-5576-3

[7] H. Hoffmann, H. So1, H. Steinbeiss, Design of Hot Stamping Tools with Cooling System, CIRP Annals - Manufacturing Technology Volume 56, Issue 1（2007）269–272.

DOI: 10.1016/j.cirp.2007.05.062

[8] Arthur B Shapiro. Using LS-Dyna for Hot Stamping, 7th European LS-DYNA Conference. Salzburg. (2009).

[9] B. Zhu, Y. -S. Zhang, J. Li, et al., Simulation research of hot stamping and phase transition of automotive high strength steel. Materials Research Innovations, 2011. 15(s1): s426-s430.

DOI: 10.1179/143307511x12858957675435

[10] Zhongxiang Gui, Yisheng Zhang, etc., Hot stamping and blank designing for a vehicle bumper using ultra high strength steel (UHSS), Advanced Materials Research, Vols. 690-693 (2013) pp.2240-2244.

DOI: 10.4028/www.scientific.net/amr.690-693.2240

[11] Zhu Bin, Zhang Yisheng, Wang Chao, Liu Peixing, Liang Weikang, Li Jian. Modeling of the austenitization of ultra-high strength steel during with cellular automation method, Metallurgical and Materials Transactions A, Volume 45（June 2014）, Issue 7, pp.3161-3171.

DOI: 10.1007/s11661-014-2255-8
