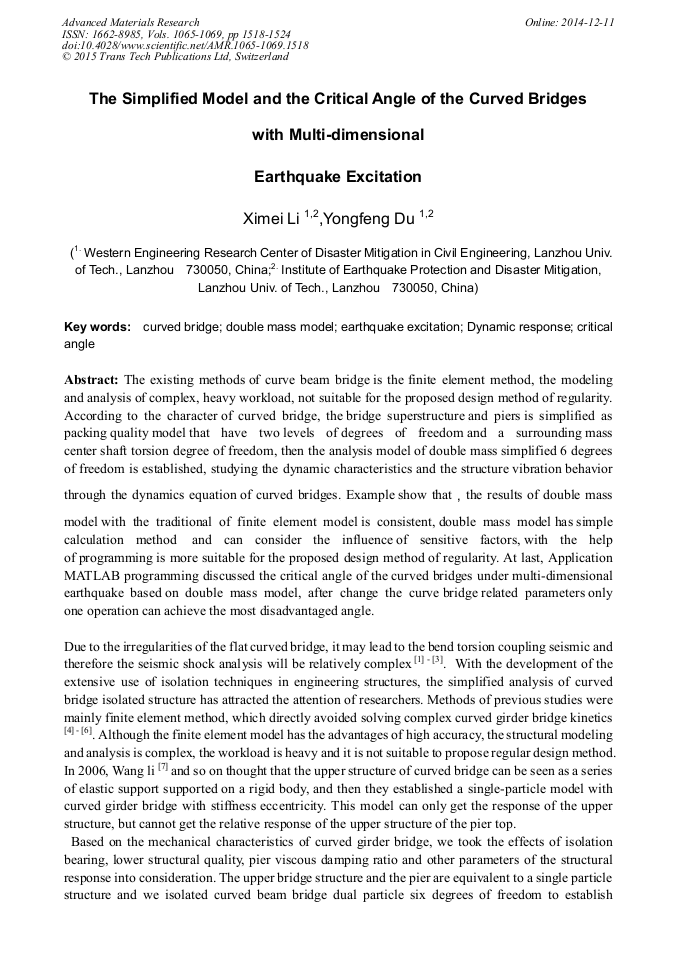

The Simplified Model and the Critical Angle of the Curved Bridges with Multi-Dimensional Earthquake Excitation

Abstract:

The existing methods of curve beam bridge is the finite element method, the modeling and analysis of complex, heavy workload, not suitable for the proposed design method of regularity. According to the character of curved bridge, the bridge superstructure and piers is simplified as packing quality model that have two levels of degrees of freedom and a surrounding mass center shaft torsion degree of freedom, then the analysis model of double mass simplified 6 degrees of freedom is established, studying the dynamic characteristics and the structure vibration behavior through the dynamics equation of curved bridges. Example show that,the results of double mass model with the traditional of finite element model is consistent, double mass model has simple calculation method and can consider the influence of sensitive factors, with the help of programming is more suitable for the proposed design method of regularity. At last, Application MATLAB programming discussed the critical angle of the curved bridges under multi-dimensional earthquake based on double mass model, after change the curve bridge related parameters only one operation can achieve the most disadvantaged angle.

• Periodical: Advanced Materials Research (Volumes 1065-1069)
• Pages: 1518-1524
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1065-1069.1518
• Online since: December 2014
• Authors: Xi Mei Li, Yong Feng Du
• Keywords: Critical Angle, Curved Bridge, Double Mass Model, Dynamic Response, Earthquake Excitation

References

[1] Williams D, Godden W. Seismic response of long curved bridge structures: experimental model studies [J]. Earthquake Engineering and Structural Dynamics, 1979, (7): 107~128.

DOI: 10.1002/eqe.4290070202

[2] Guanhua Sun. Calculation of curve bridge[M]. China Communications Press. 1995. ( In Chinese).

[3] Charles G. Culver. Natural frequencies of horizontally curved beams [J]. Journal of Structure Division, 1967, 4: 189~203.

[4] Fanlin Zeng,  Haixia Li, analysis of seismic response of horizontal two-way coupling effect of curved girder bridge. Traffic based on science and technology, 2012 (4): 1-3.

[5] Linjun Jiang, Zhengying Li, Zeguo Wang. Seismic mitigation and isolation analysis of continuous curved beam bridge with different height piers. Sichuan Building Science. 2014(2): 200-206. ( In Chinese).

[6] Xiangyu Zhao, Bo Yuan, Guanghui Li. Seismic response analysis of curved girder bridge[J]. World Earthquake Engineering, 2011, 27(3): 142-145. ( In Chinese).

[7] Li Wang, Xiyuan Zhou, Weiming Yan. Simplified Analysis Method for Seismic Response of Curved Bridges[J]. Engineering Echanics, 2006. 23(6): 77-84( In Chinese).

[8] Hongnan Li, Linsheng Huo. Structural Multidimensional Vibration Control [M]. Beijing: Science and technology publishing house, 2008. ( In Chinese).

[9] Yu Dang, Analysis and Software Development of Complex Isolated Buildings[D]. Doctoral dissertation of Wuhan University of Technology. 2011( In Chinese).

[10] Lichu Fan, Liying Nie, Jianzhong Li . Discussion on Standard of Critical Angle of Seismic Wave in Seismic Analysis of Complicated Structures[J]. Journal of Tong Ji University, 2003. 31(6): 631-636. ( In Chinese).

[11] Zhigang Zhao. The influence of input direction of Seismic motion to the irregular viaduct' dynamic characteristic [D]. Xi'an University Of Architecture And Technology, 2007( In Chinese).

[12] Wei Quan, Hongnan Li. Main direction study on curve bridge under multi-dimensional time history analysis during earthquakes[J]. Journal of Vibration and Shock, 2008, 27(8): 20-24. ( In Chinese).
