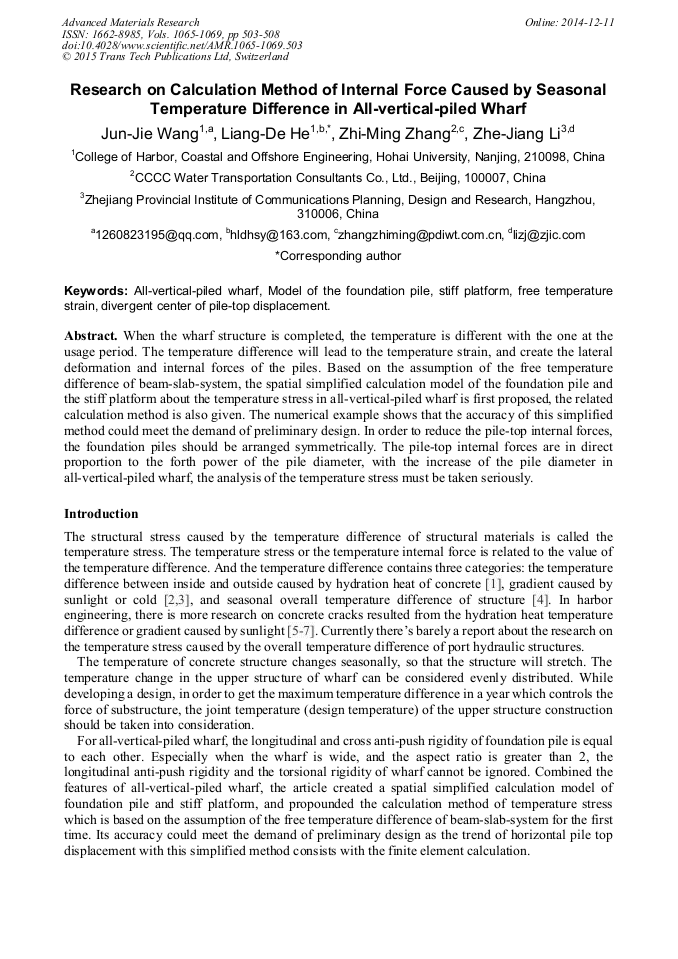

Research on Calculation Method of Internal Force Caused by Seasonal Temperature Difference in All-Vertical-Piled Wharf

Abstract:

When the wharf structure is completed, the temperature is different with the one at the usage period. The temperature difference will lead to the temperature strain, and create the lateral deformation and internal forces of the piles. Based on the assumption of the free temperature difference of beam-slab-system, the spatial simplified calculation model of the foundation pile and the stiff platform about the temperature stress in all-vertical-piled wharf is first proposed, the related calculation method is also given. The numerical example shows that the accuracy of this simplified method could meet the demand of preliminary design. In order to reduce the pile-top internal forces, the foundation piles should be arranged symmetrically. The pile-top internal forces are in direct proportion to the forth power of the pile diameter, with the increase of the pile diameter in all-vertical-piled wharf, the analysis of the temperature stress must be taken seriously.

• Periodical: Advanced Materials Research (Volumes 1065-1069)
• Pages: 503-508
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1065-1069.503
• Online since: December 2014
• Authors: Jun Jie Wang, Liang De He*, Zhi Ming Zhang, Zhe Jiang Li
• Keywords: All-Vertical-Piled Wharf, Divergent Center of Pile-Top Displacement, Free Temperature Strain, Model of the Foundation Pile, Stiff Platform

References

[1] Tohru Kawaguchi, Sunao Nakane, Investigation on determining thermal stress in massive concrete structures, J. ACI Materials Journal. 1996, 93(1): 96-101.

[2] Krit Laosiriphong, Hota V. S. GangaRao, Woraphot Prachasaree, Vimala Shekar. Theoretical and Experimental Analysis of GFRP Bridge Deck under Temperature Gradient, J. Journal of Bridge Engineering, 2006, 11(4): 507-512.

DOI: 10.1061/(asce)1084-0702(2006)11:4(507)

[3] I. C. Potigieter, W. L. Gamble, Nonlinear temperature distribution bridges at different Locations in the United States, J. PCI Journal, 1989, 34(4): 80-92.

DOI: 10.15554/pcij.07011989.80.103

[4] K. N. Shiu, H. Tabatabai. Measured thermal response of concrete box-grider bridge. Transportation Research Record, 1994, (1460): 94-105.

[5] Wang, C., Wang, D., Hu, L., etc, Field Testing and Study of Surface Concrete for Berths in Middle Port Area of Yangshan Deepwater Port in Shanghai, J. China Harbor Engineering, 2008(2): 27~30. In Chinese.

[6] Huang, P., Jin, X., Wang, X., Cause of Cracks of Tianjin Port High-pile Wharf Surface Layer Concretes and Its Control Measures, J. China Harbour Engineering, 2009(1): 22~24. In Chinese.

[7] Chen, Z., Fu, X., Wang, W., etc, Cause Analysis of Cracks in Longitudinal Beams of Piled Wharf and Countermeasures, J. Port & Waterway Engineering, 2005(11): 40~44. In Chinese.

[8] Zhang, Z.: Analysis of dynamic response of damping characteristic of still water and piled wharf, D. Nanjing, Hohai University, 1990. In Chinese.

[9] Wang, Y., Zhu, X., Zhang, Z., Model test research of all-vertical-piled wharf (model test research of wharf supported on large diameter cylindrical piles part 2), Hohai university, 1990. In Chinese.

[10] JTJ254-98. The Code for Pile Foundation of Port Engineering, China Communications Press, Beijing, 1998. In Chinese.

[11] JTJ291-98. Design and Construction Code for Open Type Wharf on Piles, China Communications Press, Beijing, 1998. In Chinese.

[12] Zhao, M., Pile calculation and test of bridge, M. China Communications Press, Beijing, 1998. In Chinese.
