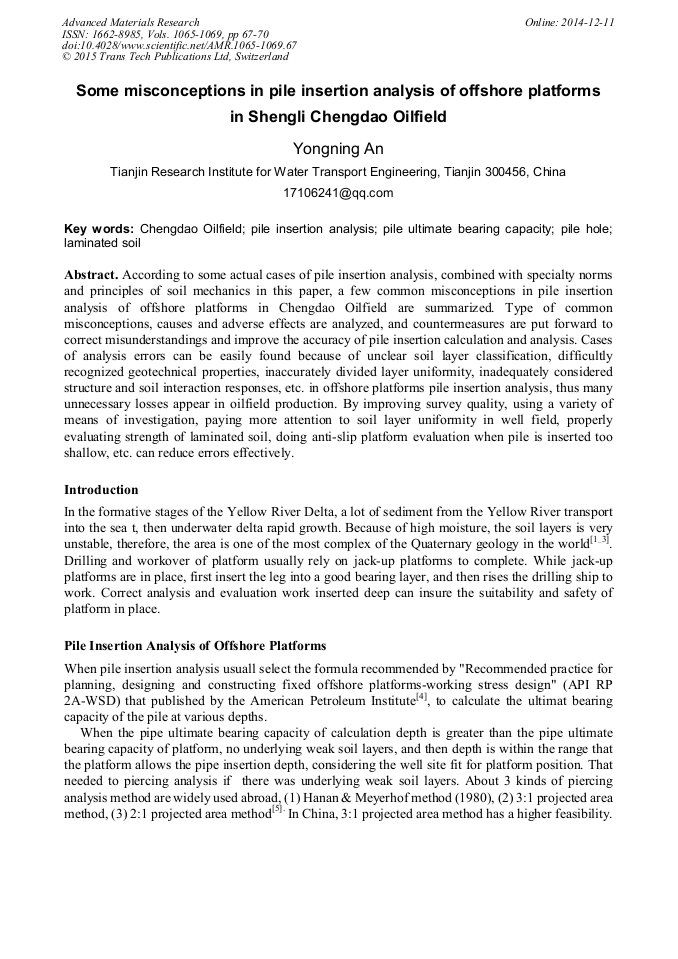

Some Misconceptions in Pile Insertion Analysis of Offshore Platforms in Shengli Chengdao Oilfield

Abstract:

According to some actual cases of pile insertion analysis, combined with specialty norms and principles of soil mechanics in this paper, a few common misconceptions in pile insertion analysis of offshore platforms in Chengdao Oilfield are summarized. Type of common misconceptions, causes and adverse effects are analyzed, and countermeasures are put forward to correct misunderstandings and improve the accuracy of pile insertion calculation and analysis. Cases of analysis errors can be easily found because of unclear soil layer classification, difficultly recognized geotechnical properties, inaccurately divided layer uniformity, inadequately considered structure and soil interaction responses, etc. in offshore platforms pile insertion analysis, thus many unnecessary losses appear in oilfield production. By improving survey quality, using a variety of means of investigation, paying more attention to soil layer uniformity in well field, properly evaluating strength of laminated soil, doing anti-slip platform evaluation when pile is inserted too shallow, etc. can reduce errors effectively.

• Periodical: Advanced Materials Research (Volumes 1065-1069)
• Pages: 67-70
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1065-1069.67
• Online since: December 2014
• Authors: Yong Ning An*
• Keywords: Chengdao Oilfield, Laminated Soil, Pile Hole, Pile Insertion Analysis, Pile Ultimate Bearing Capacity

References

[1] CHEN Qing-hua, LIU Chi-yang, LU Hong-you, et al．Character of Sedimentary Sequence and Structural Settlement of Shallow Layers in the Yellow River Delta[J]．Geotectonica et Metallogenia，2002，26(4)：386–389.

[2] LI Guangxue, ZHUANG Kelin, JIANG Yuchi．Engineering Instability of the Deposition Bodies in the Yellow River Delta[J]．Marine Geology & Quaternary Geology，2000，20(2)：21–26.

[3] SHI You-gang．Ship Collision Probability Analysis in Chengdao Oilfield[J]．Oil Field Equipment，2010，30(98)：98–100.

[4] API RP 2A–WSD, 2000．Recommended practice for planning, designing and constructing fixed offshore platforms—working stress design [S].

DOI: 10.4043/23558-ms

[5] WU Qiu-yun, ZHOU Yang-rui, FENG Xiu-li, et al．Applying of the Punch-Throuch Analysis Method of Rig-Drilling Ship in Bohai Open up Oil Fields[J]．Coastal Engineering，1999，18(4)：16–21.

[6] SONG Qing-feng, WU Jian-zheng, QI Fa-qing, et al．Study on Disturbance and Renewal of Shallow Soil in the Yellow River Subaqueous Delta Area Due to Pile Insertion and Pullout[J]．Coastal Engineering，2007，26(2)：11–18.

[7] GB 50021-2001, Geotechnical Investigation Specification [S].

[8] JTS 167-4-2012, Port Engineering Foundation Specification [S].

[9] ASTM D2487, 2010．Standard Practice for Classification of Soils for Engineering Purposes (Unified Soil Classification System) [S].
