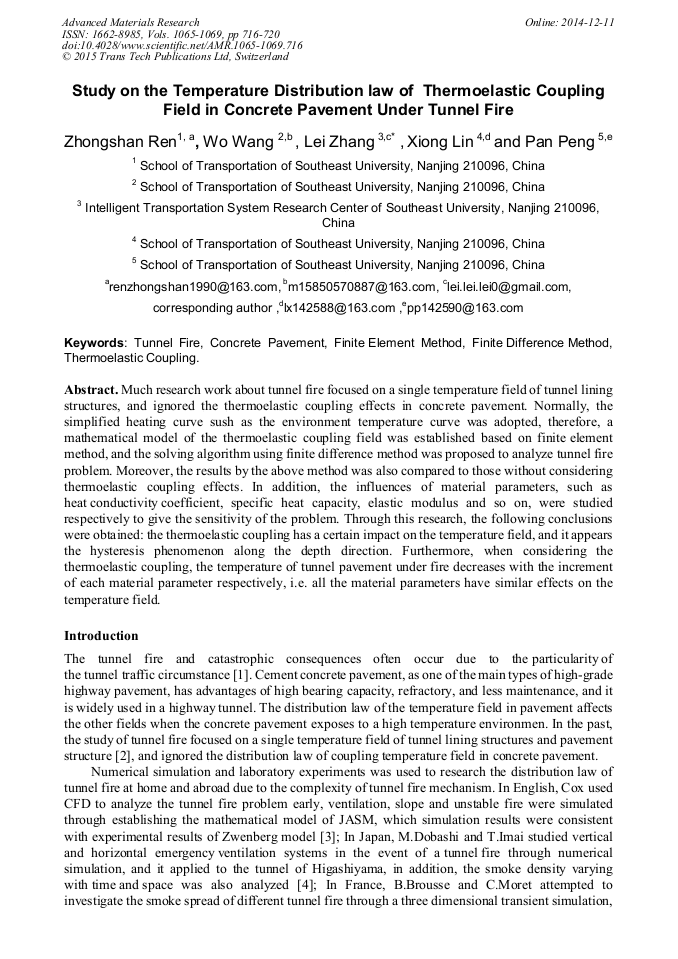

Study on the Temperature Distribution Law of Thermoelastic Coupling Field in Concrete Pavement under Tunnel Fire

Abstract:

Much research work about tunnel fire focused on a single temperature field of tunnel lining structures, and ignored the thermoelastic coupling effects in concrete pavement. Normally, the simplified heating curve sush as the environment temperature curve was adopted, therefore, a mathematical model of the thermoelastic coupling field was established based on finite element method, and the solving algorithm using finite difference method was proposed to analyze tunnel fire problem. Moreover, the results by the above method was also compared to those without considering thermoelastic coupling effects. In addition, the influences of material parameters, such as heat conductivity coefficient, specific heat capacity, elastic modulus and so on, were studied respectively to give the sensitivity of the problem. Through this research, the following conclusions were obtained: the thermoelastic coupling has a certain impact on the temperature field, and it appears the hysteresis phenomenon along the depth direction. Furthermore, when considering the thermoelastic coupling, the temperature of tunnel pavement under fire decreases with the increment of each material parameter respectively, i.e. all the material parameters have similar effects on the temperature field.

• Periodical: Advanced Materials Research (Volumes 1065-1069)
• Pages: 716-720
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1065-1069.716
• Online since: December 2014
• Authors: Zhong Shan Ren, Wo Wang, Lei Zhang*, Xiong Lin, Pan Peng
• Keywords: Concrete Pavement, Finite Difference Method, Finite Element Method (FEM), Thermoelastic Coupling, Tunnel Fire

References

[1] Haack A, J. Tunnelling and Underground Space Technology. 13(4) (1998) 377-381.

[2] Hehua Zhu, Zhiguo Yan, Li Liang and Yi Shen, J. Underground Space and Engineering, 8(1) (2012) 1595-1600. (in Chinese).

[3] D L, The new PLARC report on fire and smoke control in road tunnels, Third International Conference on Safety in Road and Rail Tunnels, Nice, France (1998).

[4] M Dobashi, T. Imai, H. Yanagi and A. Mizuno, Numerical simulation of the emergency tunnel ventilation for a tunnel with longitudinal and transverse systems combined, 10th International Symposium on the Aerodynamics & Ventilation of Vehicle Tunnels (2000).

[5] B Brousse and C Moret, ID-computer simulations and field fire testing using a chimney limited longitudinal smoke control system, 10th AVVT (2000).

[6] S.S. Levy and J.R. Sandzimier, Smoke contral for the Ted Williams Tunnel-a comparative of extraction rate, 10th International Symposium on the Aerodynamics & Ventilation of Vehicle Tunnels (2000).

[7] Lian Feng, Wandi Wang, Qixin Yang and Mingnian Wang, J. Underground Space, 24(3) (2004) 359-362 (in Chinese).

[8] Yongli Zhao, Tao Xu and Xiaoming Huang, J. Wuhan University of Technology (Transportation Science & Engineering), 34(5) (2010) 882-885 (in Chinese).

[9] Hosseini-Tehrani P and Eslami M R, Boundary element analysis of coupled thermoelasticity with relaxation times in finite domain , AIAA J (2000).

DOI: 10.2514/3.14443
