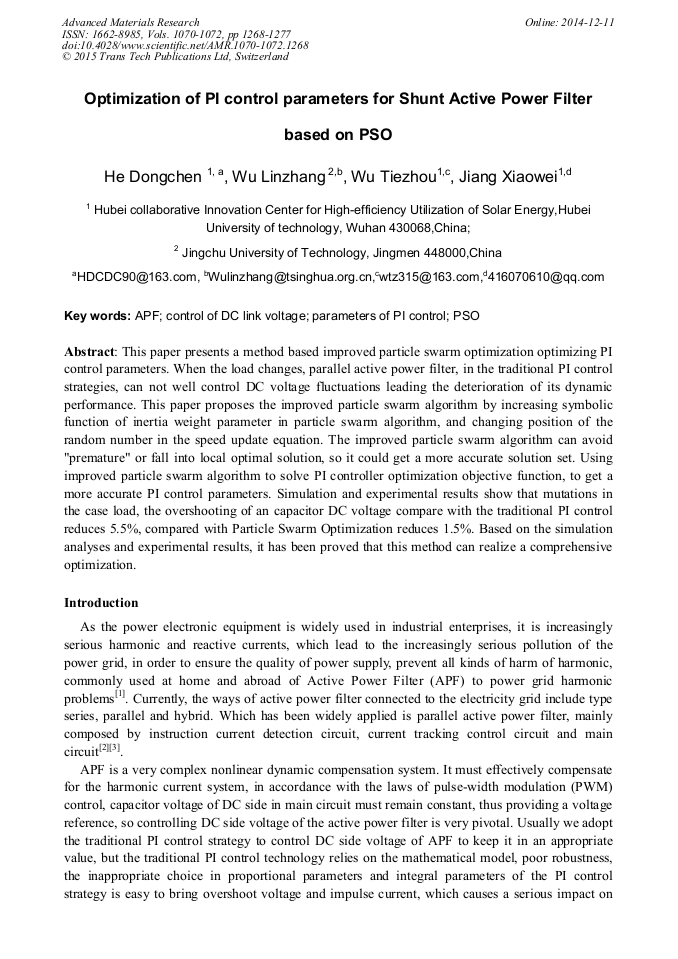

Optimization of PI Control Parameters for Shunt Active Power Filter Based on PSO

Abstract:

This paper presents a method based improved particle swarm optimization optimizing PI control parameters. When the load changes, parallel active power filter, in the traditional PI control strategies, can not well control DC voltage fluctuations leading the deterioration of its dynamic performance. This paper proposes the improved particle swarm algorithm by increasing symbolic function of inertia weight parameter in particle swarm algorithm, and changing position of the random number in the speed update equation. The improved particle swarm algorithm can avoid "premature" or fall into local optimal solution, so it could get a more accurate solution set. Using improved particle swarm algorithm to solve PI controller optimization objective function, to get a more accurate PI control parameters. Simulation and experimental results show that mutations in the case load, the overshooting of an capacitor DC voltage compare with the traditional PI control reduces 5.5%, compared with Particle Swarm Optimization reduces 1.5%. Based on the simulation analyses and experimental results, it has been proved that this method can realize a comprehensive optimization.

• Periodical: Advanced Materials Research (Volumes 1070-1072)
• Pages: 1268-1277
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1070-1072.1268
• Online since: December 2014
• Authors: Dong Chen He*, Lin Zhang Wu, Tie Zhou Wu, Xiao Wei Jiang
• Keywords: APF, Control of DC Link Voltage, Parameters of PI Control, PSO

References

[1] Wang Zhao'an, Yang Jun, Liu Jinjun. Harmonics elimination and reactive power compensation[M]. Beijing: China Machine Press, 2005: 271-298(in Chinese).

[2] Hurel J, Mandow A, Garcia-Cerezo A. Tuning a fuzzy controller by particle swarm optimization for an active suspension system [C]. Paper presented at: IECON 2012 - 38th Annual Conference on IEEE Industrial Electronics Society; 25-28 Oct. 2012, (2012).

DOI: 10.1109/iecon.2012.6388697

[3] S. S. Patnaik, Prof. A. K. Panda. Performance Improvement of id–iq Method Based Active Filter Using Particle Swarm Optimization. Chennai and Dr. MGR University Second International Conference on Sustainable Energy and Intelligent System. July, 20-22, (2011).

[4] Alok Kumar Dubey, Satya Prakash Dubey, Anurag Singh Tomar. Performance Analysis of PSO Based Hybrid Active Filter for Harmonic and Reactive Power Compensation under Non-ideal Mains [C]. 2013 International Conference on Advanced Electronic Systems. June (2013).

DOI: 10.1109/icaes.2013.6659392

[5] Corasaniti, V. F., Barbieri, M. B., Arnera, P. L., Valla, M. I. Hybrid Active Filter for Reactive and Harmonics Compensation in a Distribution Network [C]. IEEE Trans. on Industrial Electronics, Vol. 56, Issue 3, March 2009, pp.670-677.

DOI: 10.1109/tie.2008.2007997

[6] Yang Gang, Xi Ziqiang, Zhang Jia, Zhang Zhiwen. Shunt Active Power Filter DC Side Voltage Particle Swarm PI Control Method [J]. Industrial Control Computer, 2013(26) (in Chinese).

[7] HUANG Hai-tao, ZHENG Hua, ZHANG Li-zi. Study of Available Transfer Capability Based on Improved Particle Swarm Optimization [J]. Proceedings of the Chinese Society for Electrical, 2006, 26(20): 45-49.
