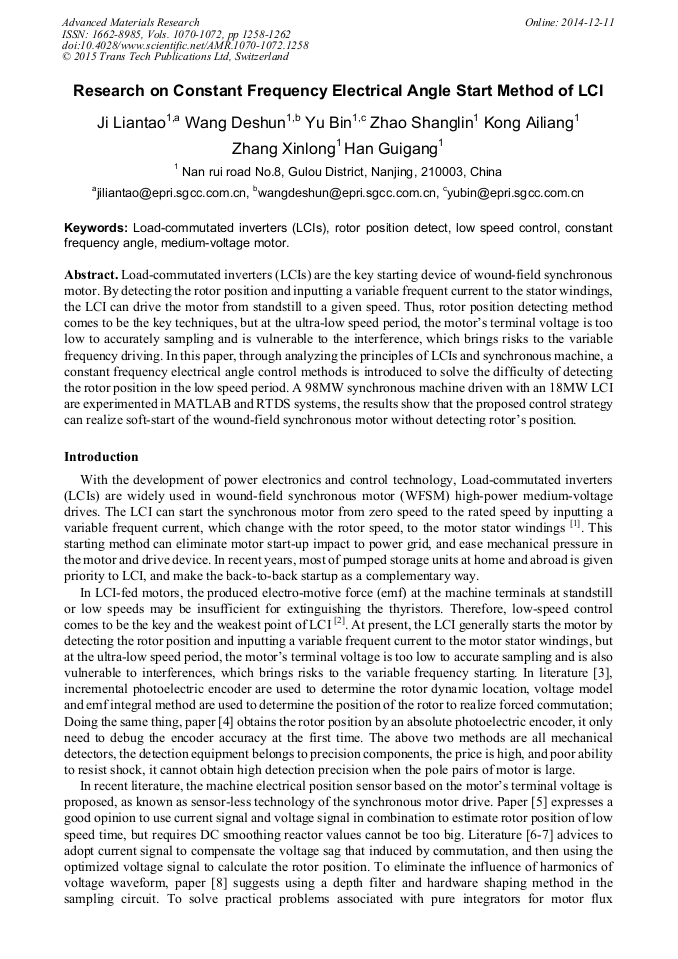

Research on Constant Frequency Electrical Angle Start Method of LCI

Abstract:

Load-commutated inverters (LCIs) are the key starting device of wound-field synchronous motor. By detecting the rotor position and inputting a variable frequent current to the stator windings, the LCI can drive the motor from standstill to a given speed. Thus, rotor position detecting method comes to be the key techniques, but at the ultra-low speed period, the motor’s terminal voltage is too low to accurately sampling and is vulnerable to the interference, which brings risks to the variable frequency driving. In this paper, through analyzing the principles of LCIs and synchronous machine, a constant frequency electrical angle control methods is introduced to solve the difficulty of detecting the rotor position in the low speed period. A 98MW synchronous machine driven with an 18MW LCI are experimented in MATLAB and RTDS systems, the results show that the proposed control strategy can realize soft-start of the wound-field synchronous motor without detecting rotor’s position.

• Periodical: Advanced Materials Research (Volumes 1070-1072)
• Pages: 1258-1262
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1070-1072.1258
• Online since: December 2014
• Authors: Lian Tao Ji*, De Shun Wang, Bin Yu, Shang Lin Zhao, Ai Liang Kong, Xin Long Zhang, Gui Gang Han
• Keywords: Constant Frequency Angle, Load-Commutated Inverters (LCIs), Low Speed Control, Medium-Voltage Motor, Rotor Position Detect

References

[1] Wang Deshun, Yang Bo, Li Guanjun. A control Strategy of Static Frequency Converter Start-up for Pumped-storage Power Plant Without Position Sensors[J]. Automation of Electric Power System, 2012, 36 (23): 114-119.

[2] LI Gui-fen, Sun Yu-tian, Zhang Chun-li. Simulation of static frequency converter starting of pump storage machine[J]. Dian gong wen zhai, 2012(04): 66-68.

[3] Yanb Bo, Li Guanjun, Hu Xuguang. Research Static Frequency Converter of Large Pumped Storage Machines Based on RTDS[J]. Electric Drive, 2010, 40(5): 20- 23.

[4] Chen Gang, Liao Wen1ian, Peng Yonghuai. Comparison of three rotor position measurement modes in frequency conversion stating of pumped storage units[J]. East China Electric Power, 2008, 36(10): 142- 144.

[5] Ge Baojun, Tao Dajun, Dong Chuanyou. Initial Control Scheme for Pumped Storage Machine Starting With SFC[J]. Transactions of China Electrotechnical Society, 2013, 11(28): 147- 154.

[6] Xia Changliang, Yang Xiaojun. Position Sensorless Control of Brushless DC Motor Based on the Disturbance Observe[J]. Transactions of China Electrotechnical Society, 2002, 17(6): 25- 28.

[7] Wu Wenxuan, Wu Danyue, Lin Yan, et al. Inter-harmonic analysis and application model construction of current source inverter[J]. Transac- tions of China Electrotechnical Society, 2010, 25(2): 163-169, 176.

[8] Li Guanjun, Yang Bo, Tao Yibin. Accurate Detection for Initial Rotor Position of Large Synchronous[J]. Automation of Electric Power System, 2011, 35(8): 72- 75.

[9] Wang Deshun, Yanb Bo, Ji Liantao. A control strategy of static frequency converter start-up for pumped-storage power plants without position sensors[J]. Automation of Electric Power System, 2012, 36(23): 114- 119.

[10] Wang Deshun, Yanb Bo, Ji Liantao. Research and develop on static frequency converter of pumped storage power plant[J]. 2th international conference on EESD, 2012(10): 1120- 1126.

DOI: 10.4028/www.scientific.net/amr.608-609.1120
