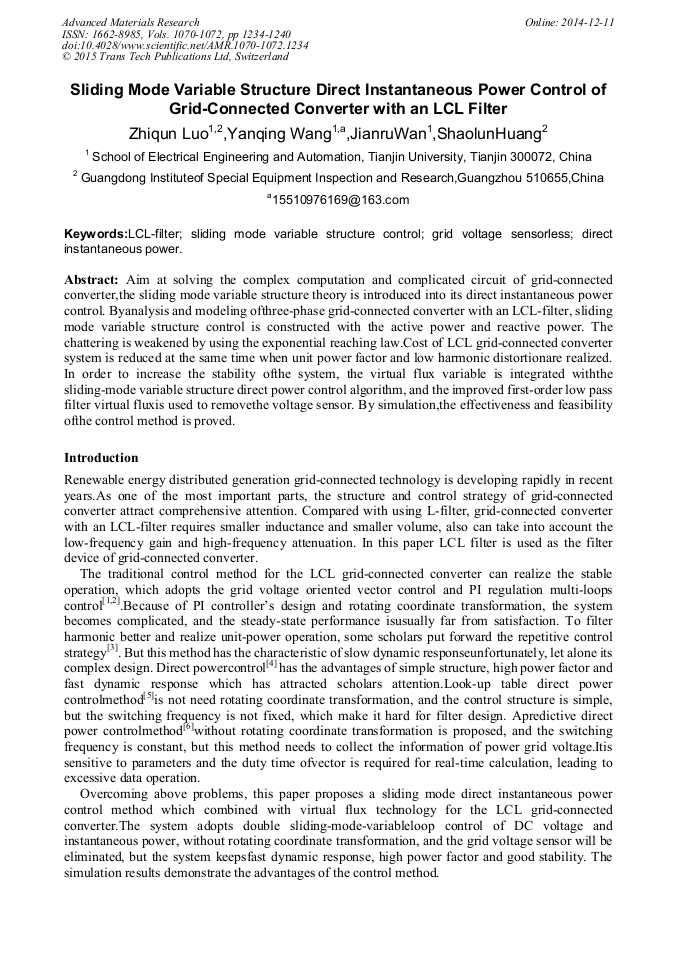

Sliding Mode Variable Structure Direct Instantaneous Power Control of Grid-Connected Converter with an LCL Filter

Abstract:

Aim at solving the complex computation and complicated circuit of grid-connected converter, the sliding mode variable structure theory is introduced into its direct instantaneous power control. By analysis and modeling of three-phase grid-connected converter with an LCL-filter, sliding mode variable structure control is constructed with the active power and reactive power. The chattering is weakened by using the exponential reaching law. Cost of LCL grid-connected converter system is reduced at the same time when unit power factor and low harmonic distortion are realized. In order to increase the stability of the system, the virtual flux variable is integrated with the sliding-mode variable structure direct power control algorithm, and the improved first-order low pass filter virtual flux is used to remove the voltage sensor. By simulation, the effectiveness and feasibility of the control method is proved.

• Periodical: Advanced Materials Research (Volumes 1070-1072)
• Pages: 1234-1240
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1070-1072.1234
• Online since: December 2014
• Authors: Zhi Qun Luo, Yan Qing Wang*, Jian Ru Wan, Shao Lun Huang
• Keywords: Direct Instantaneous Power, Grid Voltage Sensorless, LCL-Filter, Sliding Mode Variable Structure Control

References

[1] ZhiyingXu, AiguoXu, ShaojunXie. Dual-loop Grid Current Control Technique for Grid-connected Inverter Using An LCL Filter[J]. Proceedings of the CSEE, 2009, 27: 36-41. In Chinese.

[2] FeiLiu, ShanxuDuan, XiaomingZha. Design of Two Loop Controller in Grid-connected Inverter With LCL Filter[J]. Proceedings of the CSEE, 2009, S1: 234-240. In Chinese.

[3] YunquanSun, JianfeiZhong, JiSheng. PI and Repetitive Control Method Applied to Grid-Connected Inverter with LCL Filter [J]. Low Voltage Apparatus, 2012, 05: 29-33. In Chinese.

[4] Akagi, H.,Y. Kanazawa, A. Nabae. Generalized theory of the instantaneous reactive power in three-phase circuits[J]. IPEC 1983, 1983：1375~1386.

[5] R.J. Ong, J.T. Dawley and P.G. Clem: submitted to Journal of Materials Research (2003).

[5] Noguchi.T., Tomiki.H., Kondo.S., Takahashi.I. Direct power control of PWM converter without power-source voltage sensors[J]. IEEE Transactions on Industry Applications: 1998, 34(3): 473 – 479.

DOI: 10.1109/28.673716

[6] LeiShang, DanSun, JiabingHu, YikangHe. Predictive Direct Power Control of Three-Phase Grid-Connected Voltage-Sourced Inverters[J]. TRANSACTIONS OF CHINA ELECTROTECHNICAL SOCIETY, 2011, 07: 216-222+229. In Chinese.

[7] Larrinaga S.A., Vidal M.A.R., Oyarbide.E., Apraiz, J.R.T. Predictive Control Strategy for DC/AC Converters Based on Direct Power Control[J]. IEEE Transactions on Industrial Electronics, 2007，54(3): 1261~1271.

DOI: 10.1109/tie.2007.893162

[8] Joaquín González Norniella, José M. Cano, Gonzalo Alonso Orcajo, Improving the Dynamics of Virtual-Flux-Based Control of Three-Phase Active Rectifiers, IEEE TRANSACTIONS ON INDUSTRIAL ELECTRONICS, 2014, 61(1): 177~187.

DOI: 10.1109/tie.2013.2245614
