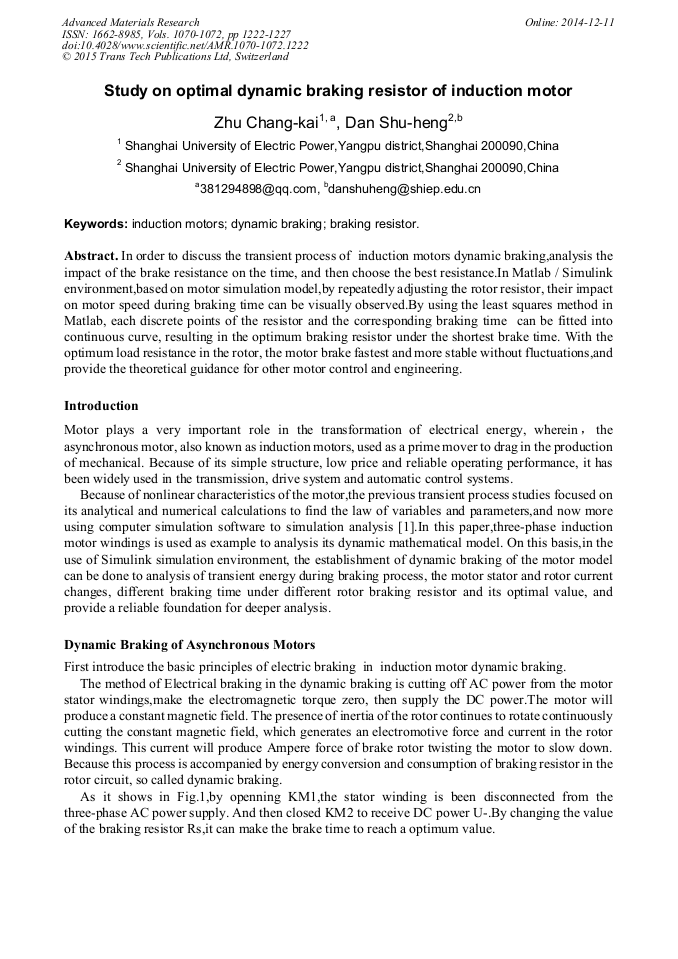

Study on Optimal Dynamic Braking Resistor of Induction Motor

Abstract:

In order to discuss the transient process of induction motors dynamic braking,analysis the impact of the brake resistance on the time, and then choose the best resistance.In Matlab / Simulink environment,based on motor simulation model,by repeatedly adjusting the rotor resistor, their impact on motor speed during braking time can be visually observed.By using the least squares method in Matlab, each discrete points of the resistor and the corresponding braking time can be fitted into continuous curve, resulting in the optimum braking resistor under the shortest brake time. With the optimum load resistance in the rotor, the motor brake fastest and more stable without fluctuations,and provide the theoretical guidance for other motor control and engineering.

• Periodical: Advanced Materials Research (Volumes 1070-1072)
• Pages: 1222-1227
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1070-1072.1222
• Online since: December 2014
• Authors: Chang Kai Zhu*, Shu Heng Dan
• Keywords: Braking Resistor, Dynamic Braking, Induction Motor (IM)

References

[1] Chunyang Zhu, Zhengxin Zhou, Simulation study on transient process of 3-phase asynchronous motor braking: Computer Engineering and Design 2013, 34(6) : 2121-2131 In Chinese.

[2] Yinhai Zhang, Jinfa Ge, Songsong Wang: Energy-Consumed Braking Phase Trajectory of Induction Motor Based on Bang-Bang Optimal Theory: TRANSACTIONS OF CHINA ELECTROTECHNICAL SOCIETY: 2011, 26(2): 74-80 In Chinese.

[3] Xinping Yan, Minsha Chen, Pengfei Li: Motor drag foundation , Beijing: Metallurgical Industry Press, 2009 In Chinese.

[4] Jianguo Deng, Longfu Luo, De-rong Luo, in: Simulation for Energy Consume Braking Single-Phase Capacitance Motors: Motor and control applications 2007, 34 (6): 13-16. In Chinese.

[5] Wei-bo Li: MATLAB application examples in electrical engineering: Beijing: China Electric Power Press, 2009. In Chinese.
