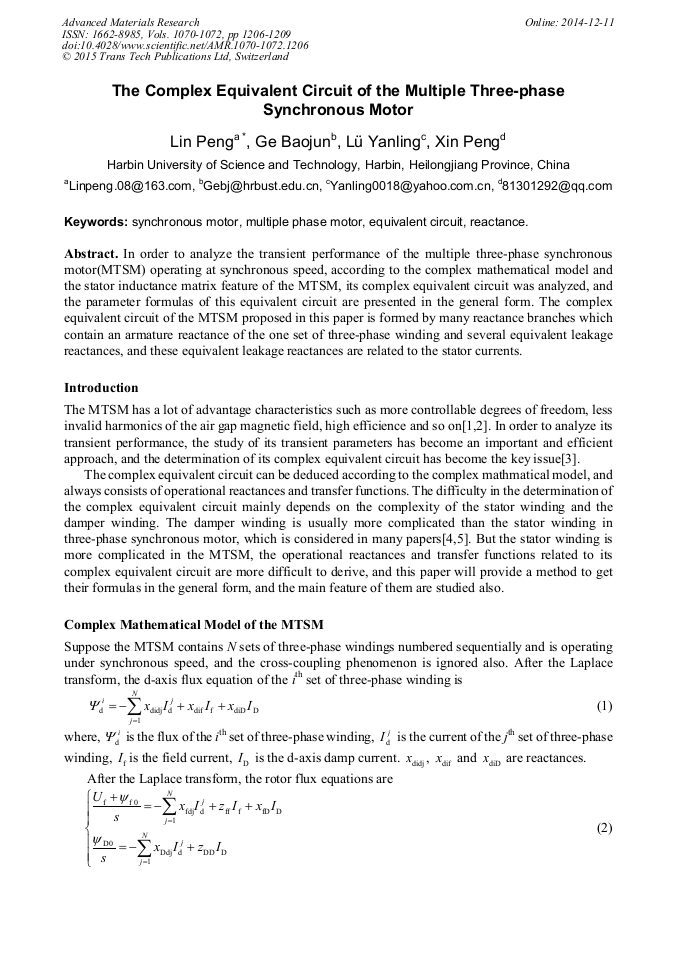

The Complex Equivalent Circuit of the Multiple Three-Phase Synchronous Motor

Abstract:

In order to analyze the transient performance of the multiple three-phase synchronous motor (MTSM) operating at synchronous speed, according to the complex mathematical model and the stator inductance matrix feature of the MTSM, its complex equivalent circuit was studied, and the parameter formulas of this equivalent circuit are presented in the general form. The complex equivalent circuit of the MTSM proposed in this paper is formed by many reactance branches which contain an armature reactance of the one set of three-phase winding and several equivalent leakage reactances, and the equivalent leakage reactances are related to the stator currents.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 1070-1072)

Pages:

1206-1209

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1070-1072.1206

Citation:

Cite this paper

Online since:

December 2014

Authors:

Peng Lin*, Bao Jun Ge, Yan Ling Lü, Peng Xin

Keywords:

Equivalent Circuit, Multiple Phase Motor, Reactance, Synchronous Motor
