Multi-Field Coupling Modeling and Analysis for Cylinder Liner of Slow Speed Two Stroke Marine Diesel Engine

Abstract:

To predict accurately the stress and deformation of combustion chamber components of large slow speed two stroke marine diesel engines, based on AVL Fire and ANSYS Workbench software, multi-field coupling modeling and analysis technology was employed to carry out the strength analysis for combustion chamber components of crosshead type marine diesel engine. The boundary conditions, i.e., the temperature field distribution, the mean temperature and the mean heat transfer coefficient are obtained firstly. Then the strength analysis for cylinder liner of crosshead type marine diesel engine under the thermal loads, mechanical loads and thermal mechanical coupled loads was conducted. The results show that the strength meets the design requirement and the stress concentration and the deformation of the cylinder liner were mainly dependent on the thermal load.

You might also be interested in these eBooks

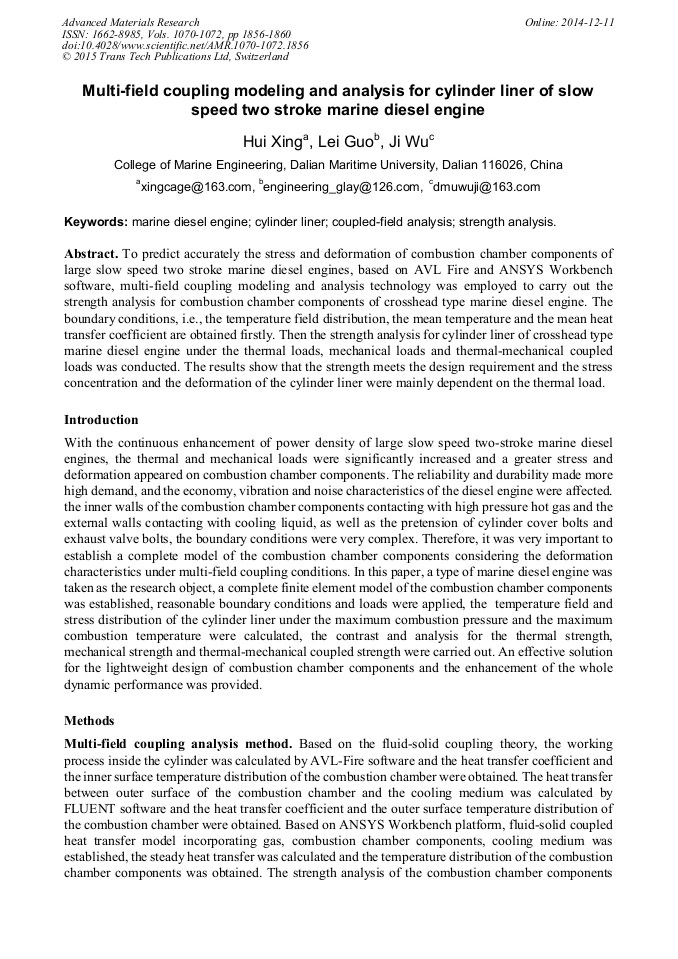

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 1070-1072)

Pages:

1856-1860

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1070-1072.1856

Citation:

Cite this paper

Online since:

December 2014

Authors:

Hui Xing*, Lei Guo, Ji Wu

Keywords:

Coupled-Field Analysis, Cylinder Liner, Marine Diesel Engine, Strength Analysis

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] AVL List GmbH. FIRE Version 8. 5 Manual[M]. Austria, (2007).

Google Scholar

[2] LI Ying, YU Xiao-li, CHEN Hong-yan, et al. 3-D Simulation of Steady Heat Transfer of Fluid-Solid Coupled System in Engine Coolant System[J]. Transactions of CSICE, 2007, 25(3): 252-257.

Google Scholar

[3] LI Ting, YU Xiao-li, LI Ying, et al. FEA Based Piston-Liner-Coolant System Fluid-Solid Coupling Heat Transfer[J]. Chinese Internal Combustion Engine Engineering, 2006, 27(5): 41-45.

Google Scholar

[4] FENG Li-yan, GAO Xi-yan, XIA Hui-min, XU Feng. The coupled thermal and mechanical load analysis in the 8E160 type diesel's piston assembly[J]. Transactions of CSICE, 2002, 20(5): 441-445.

Google Scholar

[5] Rui-song Lu, Fa-sen Lin, Rui Zhang. Heat transfer and thermal load of the internal combustion engine[M]. Bei Jing: National Defense Industry Press, (1985).

Google Scholar
