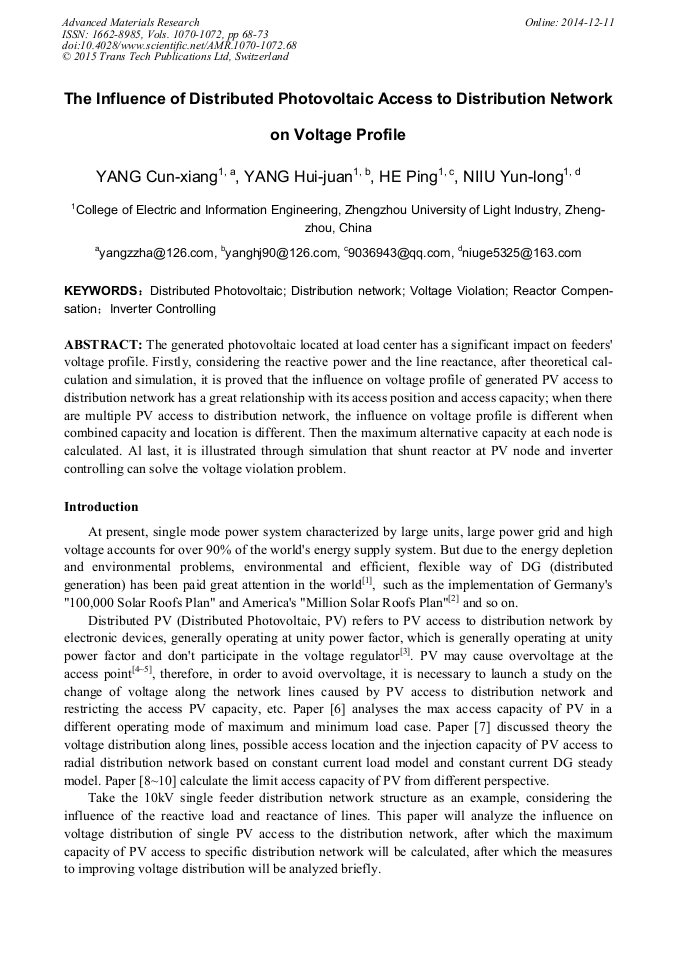

The Influence of Distributed Photovoltaic Access to Distribution Network on Voltage Profile

Abstract:

The generated photovoltaic located at load center has a significant impact on feeders' voltage profile. Firstly, considering the reactive power and the line reactance, after theoretical calculation and simulation, it is proved that the influence on voltage profile of generated PV access to distribution network has a great relationship with its access position and access capacity; when there are multiple PV access to distribution network, the influence on voltage profile is different when combined capacity and location is different. Then the maximum alternative capacity at each node is calculated. Al last, it is illustrated through simulation that shunt reactor at PV node and inverter controlling can solve the voltage violation problem.

• Periodical: Advanced Materials Research (Volumes 1070-1072)
• Pages: 68-73
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1070-1072.68
• Online since: December 2014
• Authors: Cun Xiang Yang, Hui Juan Yang*, Ping He, Yun Long Niu
• Keywords: Distributed Photovoltaic, Distribution Network, Inverter Controlling, Reactor Compensation, Voltage Violation

References

[1] Kang Zhen. Research on power quality and interaction in high permeably photovoltaic grid-connected system[D]. Hunan University, (2011).

[2] Li Baoqing. Research of Financial Policy and taxations to Promote Renewable Energy Development[D]. Research Institute For Fiscal Science, Ministry of Finance, P.R. China. (2010).

[3] Carrasco J M，Franquelo L G，Bialasiewicz J T，et al．Power-electronic systems for the grid integration of renewable energy sources：a survey[J]．IEEE Transactions on Industrial Electronics，2006，53(4)：1002-1016.

DOI: 10.1109/tie.2006.878356

[4] P. Barker. Over Voltage Considerations in Applying Distributed Resources on Power Systems. IEEE 2002. （1）: 109-114.

[5] Conti S，Raiti S，Tina G，et al．Study of the impact of PV generation on voltage profile in LV distribution networks[C]/2001 IEEE Porto Power Technology Conference．Porto，Portugal：IEEE，2001.

DOI: 10.1109/ptc.2001.964845

[6] Arne Faaborg POVL SEH． Impact of power penetration from photovoltaic power systems in distribution networks[R]．Fredericia，Denmark：IEA，2002.

[7] WANG Zhi-qun, ZHU Shou-zhen, ZHOU Shuang-xi, et al. Study on Location and Penetration of Distributed Generations[J]. PROCEEDINGS OF THE CSU-EPSA, 2005, 17(1): 53-58.

[8] HU Hua, WU Shan, XIA Xiang et al. Computing the Maximum Penetration Level of Multiple Distributed Generators in Distribution Network Taking into Account Voltage Regulation Constraints[J]. PROCEEDINGS OF THE CSEE, 2006, 26(19): 13-17.

[9] HUANG Wei; XIONG Jun; XU Xianghai et al. Penetration Level Calculation Considering Tap Changer Oscillations[J]. AUTOMATION OF ELECTRIC POWER SYSTEMS, 2007, 31(14): 43-46, 56.

[10] FAN Yuanliang, ZHAO Bo, JIANG Quanyuan et al. Peak Capacity Calculation of Distributed Photovoltaic Source with Constraint of Over-voltage[J]. AUTOMATION OF ELECTRIC POWER SYSTEMS, 2012, 36(17): 40-44.

[11] Wang Shouxiang, Wang Chengshan. Modern Distribution System Analysis[M]. Beijing: Higher Education Press, (2007).
