Isothermal Crystallization Behavior of Cu₄₂Zr₄₂Al₈Ag₈ BMG Investigated with Electrical Resistance Measurement

Abstract:

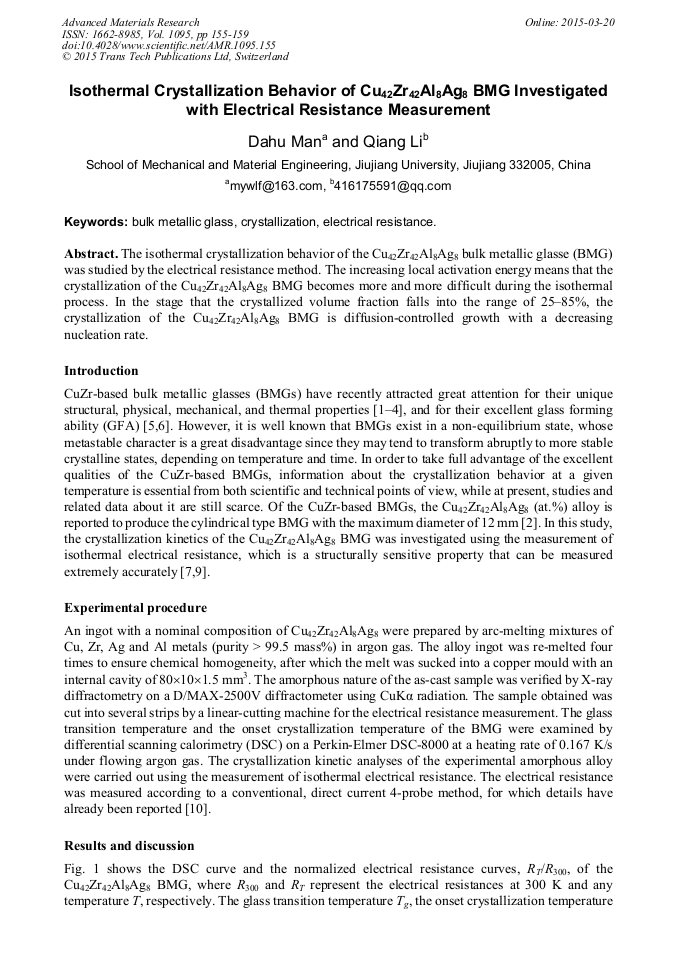

The isothermal crystallization behavior of the Cu₄₂Zr₄₂Al₈Ag₈ bulk metallic glasse (BMG) was studied by the electrical resistance method. The increasing local activation energy means that the crystallization of the Cu₄₂Zr₄₂Al₈Ag₈ BMG becomes more and more difficult during the isothermal process. In the stage that the crystallized volume fraction falls into the range of 25–85%, the crystallization of the Cu₄₂Zr₄₂Al₈Ag₈ BMG is diffusion-controlled growth with a decreasing nucleation rate.

• Periodical: Advanced Materials Research (Volume 1095)
• Pages: 155-159
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1095.155
• Online since: March 2015
• Authors: Da Hu Man*, Qiang Li
• Keywords: Bulk Metallic Glass, Crystallization, Electrical Resistance

References

[1] C.L. Qin, W. Zhang, Q.S. Zhang, K. Asami and A. Inoue: J. Mater. Res. Vol. 23, (2008), p. (2091).

[2] Q.S. Zhang, W. Zhang and A. Inoue: Scripta Mater. Vol. 55, (2006), p.711.

[3] C.L. Qin, W. Zhang, Q.S. Zhang, K. Asamib and A. Inoue: J. Alloy. Compd. Vol. 483, (2009), p.317.

[4] Q.S. Zhang, W. Zhang, G.Q. Xie and A. Inoue: Mater. Trans. Vol. 48, (2007), p.1626.

[5] Q.S. Zhang, W. Zhang and A. Inoue: Mater. Trans. Vol. 48, (2007), p.629.

[6] W. Zhang, Q.S. Zhang, C. Qin and A. Inoue: Mater. Sci. Eng. B Vol. 148, (2008), p.92.

[7] H.W. Yang, J. Gong, R.D. Li and J.Q. Wang: J. Non-Cryst. Solids Vol. 355, (2009), p.2205.

[9] K.L. Sahoo, A.K. Panda, S. Das and V. Rao: Mater. Lett. Vol. 58, (2004), p.316.

[10] J. Guo, F.Q. Zu, Z.H. Chen, S.B. Zheng and Y. Yuan: Solid State Commun. Vol. 135, (2005), p.103.

[11] Y.Z. Lu, Y.J. Huang, X.S. Wei and J. Shen: Intermetallics Vol: 30, (2012), p.144.

[12] O. Haruyama, H. Kimura, N. Nishiyama and A. Inoue: Mater. Sci. Eng. A Vol. 304–306, (2001), p.740.

[13] A. Mitra, V. Rao, S. Pramanick and O.N. Mohanty: J. Mater. Sci. Vol. 27, (1992), p.5863.

[14] D. Xu, G. Duan and W.L. Johnson: Phys. Rev. Lett. Vol. 92, (2004), p.245504.

[15] J.F. Li, Z.H. Huang and Y.H. Zhou: Intermetallics Vol. 15, (2007), p.1013.

[16] Z.Z. Yuan, X.D. Chen, B.X. Wang and Y.J. Wang: J. Alloy. Compd. Vol. 407, (2006), p.163.

[17] L.C. Zhang, J. Xu and J. Eckert: J. Appl. Phys. Vol. 100, (2006), p.033514.

[18] S.W. Wei, B.Z. Ding, T.Q. Li and Z.Q. Hu: Mater. Lett. Vol. 37, (1998), p.263.

[19] C.W. Price: Acta Metal. Mater. Vol. 38, (1990), p.727.

[20] Y.L. Gao, J. Shen, J.F. Sun, G. Wang, D.W. Xing, H.Z. Xian and B.D. Zhou: Mater. Lett. Vol. 57, (2003), p.1894.
