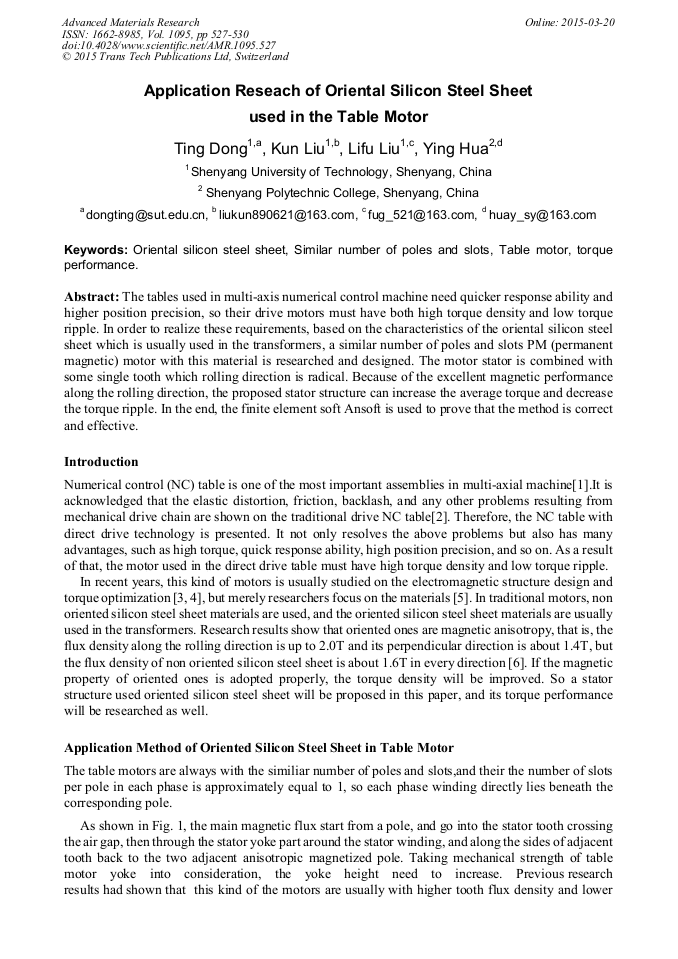

Application Reseach of Oriental Silicon Steel Sheet Used in the Table Motor

Abstract:

The tables used in multi-axis numerical control machine need quicker response ability and higher position precision, so their drive motors must have both high torque density and low torque ripple. In order to realize these requirements, based on the characteristics of the oriental silicon steel sheet which is usually used in the transformers, a similar number of poles and slots PM (permanent magnetic) motor with this material is researched and designed. The motor stator is combined with some single tooth which rolling direction is radical. Because of the excellent magnetic performance along the rolling direction, the proposed stator structure can increase the average torque and decrease the torque ripple. In the end, the finite element soft Ansoft is used to prove that the method is correct and effective.

• Periodical: Advanced Materials Research (Volume 1095)
• Pages: 527-530
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1095.527
• Online since: March 2015
• Authors: Ting Dong*, Kun Liu, Li Fu Liu, Ying Hua
• Keywords: Oriental Silicon Steelsheet, Similar Number of Poles and Slots, Table Motor, Torque Performance

References

[1] H. Wang. Flexibility, Complex, Multi-Axis Motion, High Precision, High Speed is the Mainstream of Development in Multi-Axis Motion Machine. Machinist Metal Cutting, 2011, 18: 24-29. (In Chinese).

[2] T. Dong. Influences of Torque Characteristics on Direct Drive Table Motor with Unequal Teeth Interval Winding Structure. Transactions of China Electro technical Society, 2010, 8: 12-17. (In Chinese).

[3] R. H. Qu. Analysis and Modeling of Air Gap & Zigzag Leakage Fluxes in A Surface Mounted-PM Machine. IEEE Transactions on Industry Applications, 2004, 40: 121-127.

DOI: 10.1109/tia.2003.821790

[4] D. Zarko. Analytical Calculation of Magnetic Field Distribution in Slotted Air Gap of Surface Permanent-Magnet Motor using Complex Relative Air Gap Permance Magnetics. IEEE Transactions on Magnetics. 2006, 42: 1828-1837.

DOI: 10.1109/tmag.2006.874594

[5] B. G. Liang. The Discussion on Silicon Steel Sheet used in High Efficient Motor. Explosion-Proof Electric Machine, 2010, 1(45): 12-13. (In Chinese).

[6] M. Enokizono. Vector Magneto-Hysteresis E&S Modeland Magnetic Characteristic Analysis. IEEE Transactions on Magnetics, 2006, 42(4): 915-918.

DOI: 10.1109/tmag.2006.871667

[7] Libert F. Soulard J. Manufacturing Methods of Stator Cores with Concentrated Windings. The 3rd IET International Conference on Power Electronics, Machines and Drives, 2006: 676-680.

DOI: 10.1049/cp:20060194
