The Influence of Doping Both NiO and CoO on the Properties of Low-Loss and High Bs MnZn Ferrites

Abstract:

MnZn soft ferrite materials with NiO-CoO dopant are prepared by conventional oxide technique.The influences of CoO and NiO addition on the microstructure and magnetic properties of low-loss and high Bs MnZn ferrites are investigated. The present results show that MnZn soft ferrite materials with CoO addition of 0.1wt% and NiO addition of 1.28wt% possess both homogeneous grains and high saturation magnetic flux density. The lowest loss point is located at 100°C. The valley point of power loss shifts to higher temperature with increasing of NiO dopant. The power losses decrease and sintering density increases with increase of CoO addition. The sintered MnZn ferrite materials based upon a specific sinter curve possesss excellent comprehensive properties: μi=2198 , Pcv=319 kw/m3 , Bs=540mT (T=25°C), Bs=451mT (T=100°C).

You might also be interested in these eBooks

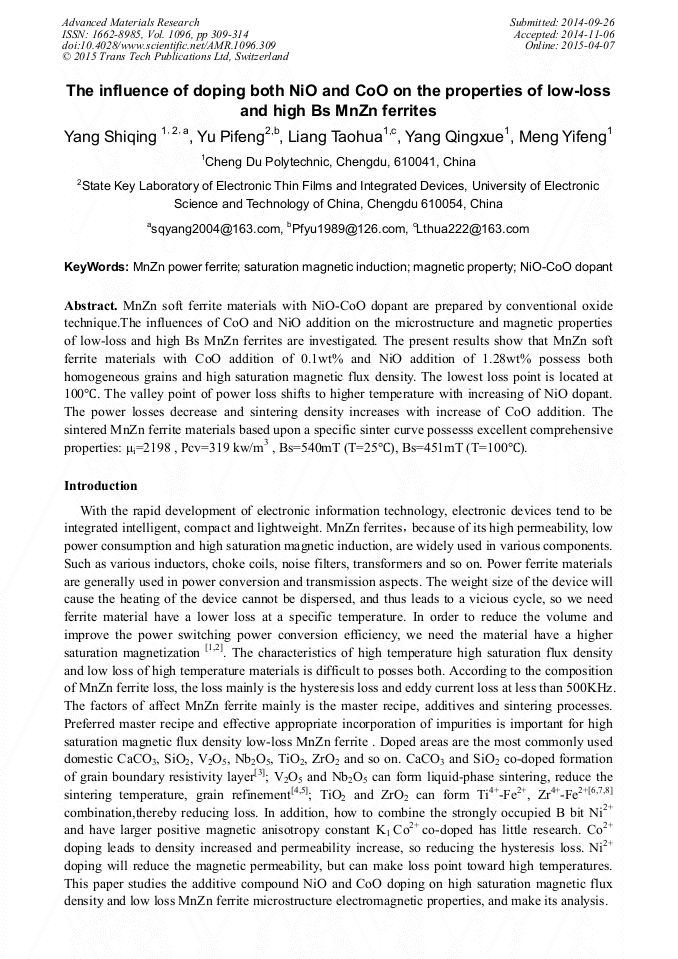

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1096)

Pages:

309-314

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1096.309

Citation:

Cite this paper

Online since:

April 2015

Authors:

Shi Qing Yang*, Pi Feng Yu, Tao Hua Liang, Qing Xue Yang, Yi Feng Meng

Keywords:

Magnetic Property, MnZn Power Ferrite, NiO-CoO Dopant, Saturation Magnetic Induction

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Huang Yongjie,Li Shikun,Lan Zhongwen. magnetic materials [M] Chengdu :University of Electronic Science and Technology Press, 1993,5-32.

Google Scholar

[2] Wan Defu,Ma Xinglong magnetic physics[M]Beijing:Electronic Industry Press,2002,55-173.

Google Scholar

[3] Liu Zhi, Lan Zhongwen, Sun Ke, et al. Influence of CaCO3-SiO2 dopants on the phase and property of MnZn ferrites [J]. Journal of Magnetic Materials and Devices, 2011, 42(001): 32-35.

Google Scholar

[4] Liu Ya,Yu Zhong,Sun Ke, et al. Influence of Combined CuO and V2O5 Dopants on the Properties of MnZn Ferrites [J].Piezoelectrics & Acoustooptics , 2011, 33(4): 623-627.

Google Scholar

[5] Li Yinchuan, Dong Shengyu, Shen Guilin. The Role of Nb2O5 Additive in the High Permeability ,Low Distortion and Low Core Loss MnZn Ferrite [J]. Journal of Magnetic Materials and Devices, 2008, 39(5): 53-55.

Google Scholar

[6] Zhi Yanjun, Yu Zhong, Ji Haining, et al. Effect of ZrO_2 Addition on the Temperature Dependence of MnZn Power Ferrites [J]. Piezoelectrics & Acoustooptics, 2011, 33(2): 258-263.

Google Scholar

[7] Feng Zekun, Li Haihua, He Huahui. The study of addition Co2+or Sn4+on the magnetic properties dependence of MnZn power ferrites materials [J]. Function Materials, 2004, 34(6): 649-651.

Google Scholar

[8] Lin H, Sun B, Wang L, et al. Development of powder preparation technology and additives in MnZn ferrites[J]. Liaoning Keji Daxue Xuebao(Journal of University of Science and Technology Liaoning), 2012, 35(4): 369-374.

Google Scholar

[9] Wang Chaoming, Lan Zhongwen, Yu Zhong.The effect of calcining temperature on the microstructure and magnetic properties of high permeability MnZn ferrites [J]. Function Materials, 2006, 37(4): 552-554.

Google Scholar

[10] Real Janasi S, Lázaro-Colán V A, Landgraf F J G, et al. Effect of Oxygen Content during Sintering on the Losses of MnZn Ferrites[C]/Materials Science Forum. 2014, 775: 404-409.

DOI: 10.4028/www.scientific.net/msf.775-776.404

Google Scholar

[11] Zhang Q, Zheng P, Zheng L, et al. Effect of Co-substitution on the structure and magnetic properties of MnZn power ferrite[J]. Journal of Electroceramics, 2013: 1-4.

DOI: 10.1007/s10832-013-9878-9

Google Scholar

[12] Tong S Y, Wu J M, Tung M J, et al. Effect of Ni concentration on electromagnetic wave absorption of (Ni, Mn, Zn) Fe<sub> 2</sub> O<sub> 4</sub>/resin particulate composites[J]. Journal of Alloys and Compounds, 2012, 525: 143-148.

DOI: 10.1016/j.jallcom.2012.02.093

Google Scholar

[13] Sun K, Lan Z, Yu Z, et al. Analysis of losses in NiO doped MnZn ferrites[J]. Journal of Alloys and Compounds, 2009, 468(1): 315-320.

DOI: 10.1016/j.jallcom.2007.12.099

Google Scholar

[14] Huang Aiping, Tan Fuqing, Dou Xiaoming. Application of empirical formula for secondary peak temperature in the main component design of MnZn ferrite materials [J]. Journal of Magnetic Materials and Devices, 2012, 43(2): 49-51.

Google Scholar

[15] Fu Bin, Zhou Xiaojun, Fan Zhongkang, et al.Influence of Ni-substitution on the magnetic properties of MnZn ferrite [J]. Journal of Magnetic Materials and Devices, 2012, 43(1): 61-63.

Google Scholar
