Influence of Grain Formation on Electrical Properties of La_0.67Sr_0.33MnO₃

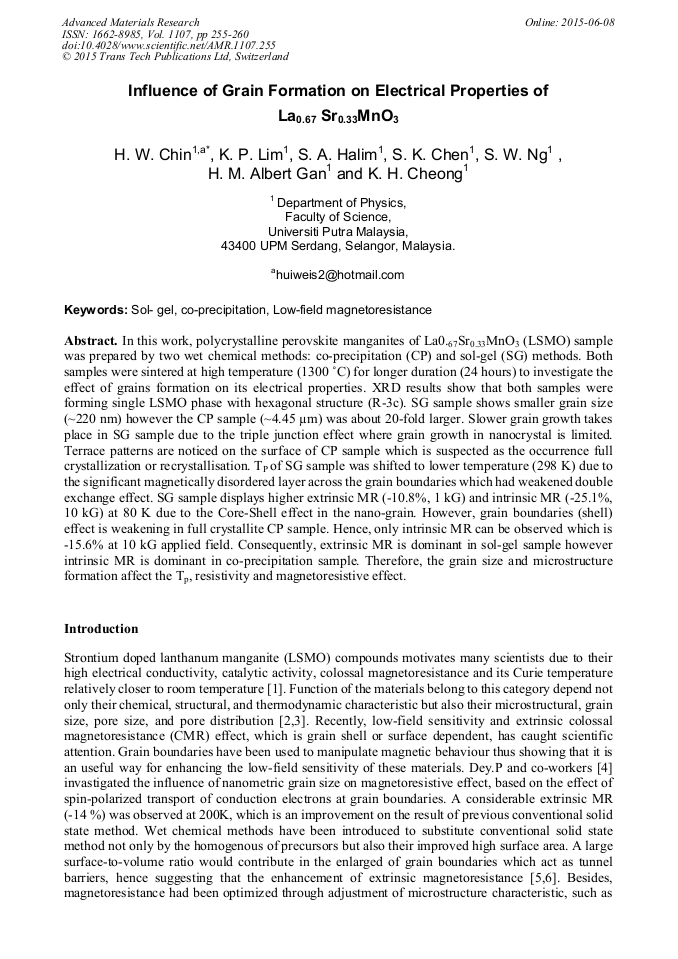

Abstract:

In this work, polycrystalline perovskite manganites of La0.₆₇Sr_0.33MnO₃ (LSMO) sample was prepared by two wet chemical methods: co-precipitation (CP) and sol-gel (SG) methods. Both samples were sintered at high temperature (1300 °C) for longer duration (24 hours) to investigate the effect of grains formation on its electrical properties. XRD results show that both samples were forming single LSMO phase with hexagonal structure (R-3c). SG sample shows smaller grain size (~220nm) however the CP sample (~4.45μm) was about 20-fold larger. Slower grain growth takes place in SG sample due to the triple junction effect where grain growth in nanocrystal is limited. Terrace patterns are noticed on the surface of CP sample which is suspected as the occurrence full crystallization or recrystallisation. T_P of SG sample was shifted to lower temperature (298 K) due to the significant magnetically disordered layer across the grain boundaries which had weakened double exchange effect. SG sample displays higher extrinsic MR (-10.8%, 1 kG) and intrinsic MR (-25.1%, 10 kG) at 80 K due to the Core-Shell effect in the nanograin. However, grain boundaries (shell) effect is weakening in full crystallite CP sample. Hence, only intrinsic MR can be observed which is-15.6% at 10 kG applied field. Consequently, extrinsic MR is dominant in sol-gel sample however intrinsic MR is dominant in co-precipitation sample. Therefore, the grain size and microstructure formation affect the T_p, resistivity and magnetoresistive effect.

• Periodical: Advanced Materials Research (Volume 1107)
• Pages: 255-260
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1107.255
• Online since: June 2015
• Authors: Hui Wei Chin, Kean Pah Lim*, S.A. Halim, S.K. Chen, S.W. Ng, Albert H.M. Gan, K.H. Cheong
• Keywords: Co-Precipitation, Low-Field Magnetoresistance, Sol-Gel

References

[1] P. K. Siwach, H. K. Singh, O. N. Srivastava, Low field magnetotransport in manganite, Journal of Physic: Condensed Matter. 20 (2008) 2732011-43.

[2] P. A. Yadav, A. V. Deshmukh, K. P. Adhi, B. B. Kale, N. Basavaih, S. I. Patil, Role of grain size on the magnetic properties of La0. 7Sr0. 3MnO3, Journal of Magnetism and Magnetic Materials. 328 (2013) 86-90.

DOI: 10.1016/j.jmmm.2012.09.056

[3] A. Ghosh , A. K. Sahu, A. K. Gulnar, A. K. Suri, Synthesis and characterization of lanthanum strontium manganite, Scripta Materialia. 52 (2005) 1305-1309.

DOI: 10.1016/j.scriptamat.2005.02.020

[4] P. Dey, T. K. Nath, K. Uday, P.K. Mukhopadhyay, Effect of nanosize modulation of granular La0. 67Sr0. 33MnO3 manganites on temperature dependent low-field spin-polarized tunneling magnetoresistance, Journal Applied Physic. 98 (2005) 014306.

DOI: 10.1063/1.1928307

[5] A. Singh, D. K. Aswal, C. S. Viswanadham, G. L. Goswami, L. C. Gupta, S. K. Gupta, J. V. Yakhmi, Enhanced magnetoresistance in nanocrystalline La0. 6Pb0. 4MnO3 thin flims, Journal of Crystal Growth. 244 (2002) 313-317.

DOI: 10.1016/s0022-0248(02)01699-8

[6] H. Reshi, V. Shelke, Grain size Induced metal-insulator transition in La0. 7Sr0. 3MnO3 Compound, Journal of Nano and Electronic Physic. 5 (2013) 04053.

[7] G. Gottstein, A. H. King, L. S. Shvindlerman, The effect of triple junction drag on grain growth, Acta Materialia. 48 (2000) 397-403.

DOI: 10.1016/s1359-6454(99)00373-0

[8] A. H. Chokshi, Triple junction limited grain growth in nanomaterials. Scripta Materialia. 59 (2008) 726-729.

DOI: 10.1016/j.scriptamat.2008.06.009

[9] N. Zhang, W. P. Ding, W. Zhong, D. Y. Xing, & Y. W. Du, Tunnel-type giant magnetoresistance in the granular perovskite La0. 85Sr0. 15MnO3, Physical Review B. 56 (1997) 8138-8142.
