Investigation on the Flash Butt Welding of 51CrV4 Steels for Saw Blades

Abstract:

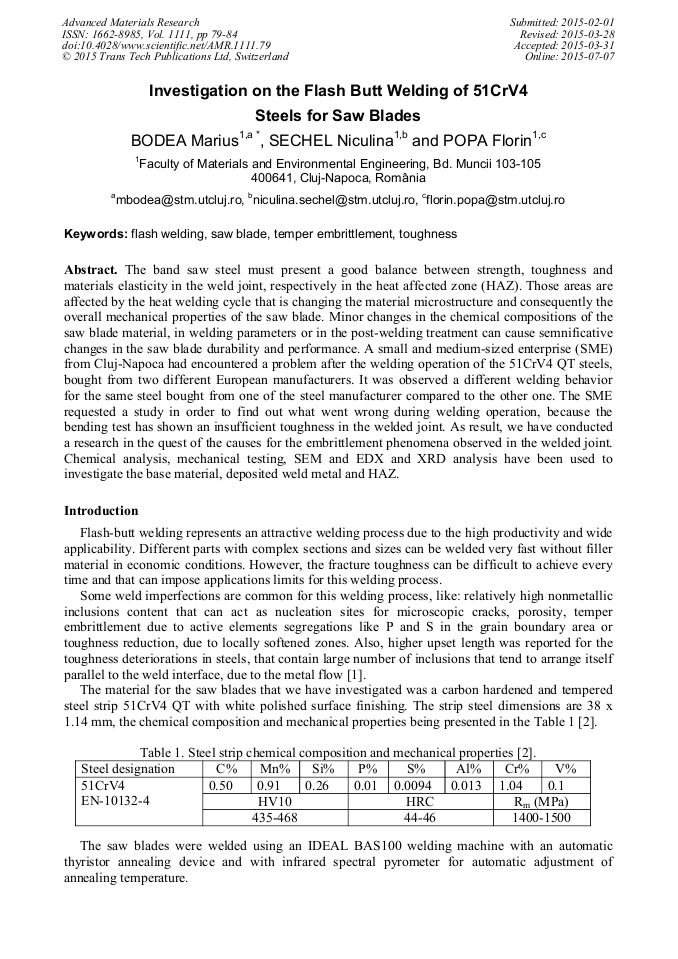

The band saw steel must present a good balance between strength, toughness and materials elasticity in the weld joint, respectively in the HAZ. Those areas are affected by the heat welding cycle that is changing the material microstructure and consequently the overall mechanical properties of the saw blade. Minor changes in the chemical compositions of the saw blade material, in welding parameters or in the post-welding treatment can cause semnificative changes in the saw blade durability and performance. A SMEs from Cluj-Napoca had encountered a problem after the welding operation of the 51CrV4 QT steels, bought from two different European manufacturers. It was observed a different welding behavior for the same steel bought from one of the steel manufacturer compared to the other one. The SMEs requested a study in order to find out what went wrong during welding operation, because the bending test has shown an insufficient toughness in the welded joint. As result, we have conducted a research in the quest of the causes for the embrittlement phenomena observed in the welded joint. Chemical analysis, mechanical testing, SEM and EDX and XRD analysis have been used to investigate the material properties in the parent material, weld and HAZ.

• Periodical: Advanced Materials Research (Volume 1111)
• Pages: 79-84
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1111.79
• Online since: July 2015
• Authors: Marius Bodea*, Argentina Niculina Sechel, Florin Popa
• Keywords: Flash Welding, Saw Blade, Temper Embrittlement, Toughness

References

[1] Y. Ichiyama, S. Kodama, Flash-Butt Welding of High Strength Steels, Nippon Steel Technical Report no. 95, (2007).

[2] Sp.A. Metallurgica Luigi Pessina Acciai, www. pessinaacciai. com.

[3] R. A. Swift, H. C. Rogers, A Critical Review of Weld Metal Embrittlement, Welding Research Supplement (1971), 357-372.

[4] E. Kozeschnik, H. K. D. H. Bhadeshia, Influence of silicon on cementite precipitation in steels, Materials Science and Technology Vol. 24/3 (2008), 343-347.

DOI: 10.1179/174328408x275973

[5] A. Reguly, T. R. Strohaecker, G. Krauss, D. K. Matlock, Quench embrittlement of hardened 5160 steel as a function of austenitizing temperature, Metall. and Mat. Trans. A, (2004), Vol. 35, 153-162.

DOI: 10.1007/s11661-004-0118-4

[6] H. P. Romero, H. Bhadeshia, Coalesced Martensite in Pressure Vessel Steels, J. Pressure Vessel Tech. 136 (2014), doi: 10. 1115/1. 4026192.

DOI: 10.1115/1.4026192

[7] H. K. D. H. Bhadeshia, Possible Effects of Stress on Steel Weld Microstructures, Mathematical Modell. of Weld Phen., Inst. of Materials, London, (1995), pp.72-115.

[8] Jinxu Li, T. Ohmura, K. Tsuzaki, Evaluation of Grain Boundary Effect on Strength of Fe–C Low Alloy Martensitic Steels by Nanoindentation Technique, Materials Transactions, Vol. 46, No. 6 (2005) pp.1301-1305.

DOI: 10.2320/matertrans.46.1301

[9] B. Senčič, V. Leskovšek, Fracture Toughness of the Vacuum-Heat-Treated Spring Steel 51CrV4, Materials and Technology 45 (2011), 67–73.
