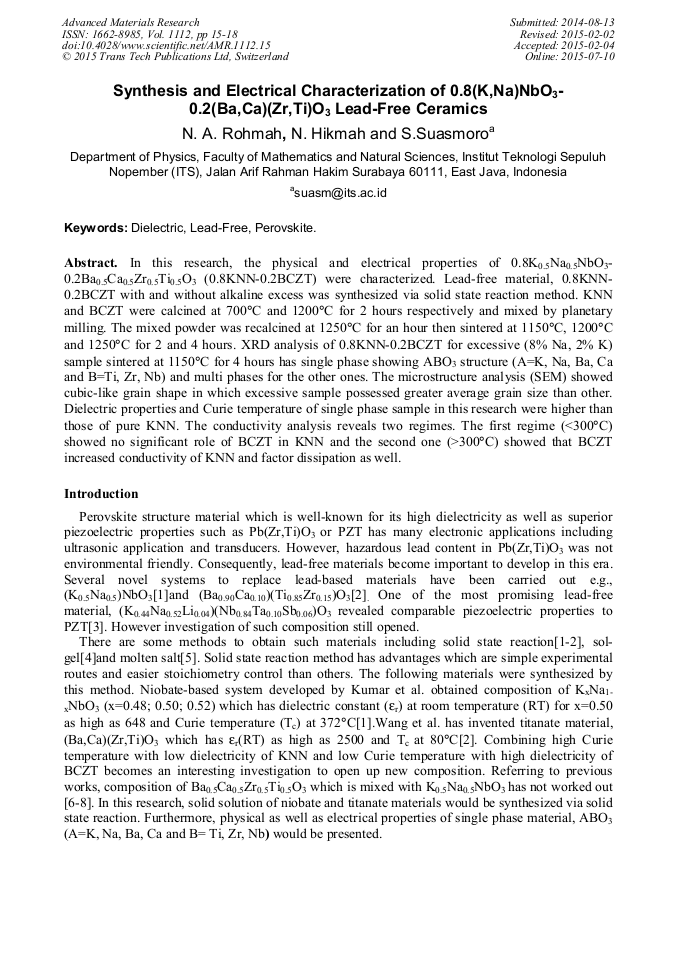

Synthesis and Electrical Characterization of 0.8(K,Na)NbO₃-0.2(Ba,Ca)(Zr,Ti)O₃ Lead-Free Ceramics

Abstract:

In this research, the physical and electrical properties of 0.8K_0.5Na_0.5NbO₃-0.2Ba_0.5Ca_0.5Zr_0.5Ti_0.5O₃ (0.8KNN-0.2BCZT) were characterized. Lead-free material, 0.8KNN-0.2BCZT with and without alkaline excess was synthesized via solid state reaction method. KNN and BCZT were calcined at 700°C and 1200°C for 2 hours respectively and mixed by planetary milling. The mixed powder was recalcined at 1250°C for an hour then sintered at 1150°C, 1200°C and 1250°C for 2 and 4 hours. XRD analysis of 0.8KNN-0.2BCZT for excessive (8% Na, 2% K) sample sintered at 1150°C for 4 hours has single phase showing ABO₃ structure (A=K, Na, Ba, Ca and B=Ti, Zr, Nb) and multi phases for the other ones. The microstructure analysis (SEM) showed cubic-like grain shape in which excessive sample possessed greater average grain size than other. Dielectric properties and Curie temperature of single phase sample in this research were higher than those of pure KNN. The conductivity analysis reveals two regimes. The first regime (<300°C) showed no significant role of BCZT in KNN and the second one (>300°C) showed that BCZT increased conductivity of KNN and factor dissipation as well.

You might also be interested in these eBooks

Advanced Materials Research and Production

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1112)

Pages:

15-18

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1112.15

Citation:

Cite this paper

Online since:

July 2015

Authors:

Nur Amaliya Rohmah*, Nahariatul Hikmah, Suasmoro Suasmoro

Keywords:

Dielectric, Lead-Free, Perovskite

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] P. Kumar, M. Pattanaik, Sonia, Synthesis and characterizations of KNN ferroelectric ceramics near 50/50 MPB, Ceram Int. 39(1) (2013) 65–69.

DOI: 10.1016/j.ceramint.2012.05.093

Google Scholar

[2] P. Wang, Y. Li, Y. Lu, Enhanced piezoelectric properties of (Ba0. 85Ca0. 15)(Ti0. 9Zr0. 1)O3 lead-free ceramics by optimizing calcination and sintering temperature, J Eur Ceram Soc. 31(11) (2011)2005–(2012).

DOI: 10.1016/j.jeurceramsoc.2011.04.023

Google Scholar

[3] Y. Saito, H. Takao, T. Tani, T. Nonoyama, et al., Lead-Free Piezoceramics. Nature. 432 (2004) 84–87.

DOI: 10.1038/nature03028

Google Scholar

[4] M. Shi,J. Zhong, Effect of annealing process on the structural and electrical properties of the lead-free thin films of (Ba0. 9Ca0. 1)(Ti0. 9Zr0. 1)O3, J. Alloys Compd. 562 (2013) 116-122.

DOI: 10.1016/j.jallcom.2013.02.054

Google Scholar

[5] Y. Saito, H. Takao, Synthesis of polycrystalline plate like KNbO3 particles by thetopochemical micro-crystal conversion method and fabrication ofgrain-oriented (K0. 5Na0. 5)NbO3 ceramics, J Eur Ceram Soc. 27 (2007) 4085-4092.

DOI: 10.1016/j.jeurceramsoc.2007.02.099

Google Scholar

[6] T. Chen, H. Wang, T. Zhang, et al., Piezoelectric behavior of (1-x)K0. 5Na0. 5NbO3–xBa0. 8Ca0. 2ZrO3, Ceram Int. 39 (2013) 6619-6622.

Google Scholar

[7] S.H. Lee, S.G. Lee, Y.H. Lee,. Piezoelectric and dielectric properties of 0. 98(Na00. 5K0. 5)NbO3–0. 02Ba(ZrxTi(1−x)O3 ceramics, Mater Res Bull. 47(10)(2012) 2863–2866.

DOI: 10.1016/j.materresbull.2012.04.095

Google Scholar

[8] J. Hao, W. Li, W. Bai, B. Shen, J. Zhai, Phase structures and electrical properties of (1−x)(K0. 48Na0. 52)NbO3–x(Ba0. 85Ca0. 15)(Zr0. 1Ti0. 9)O3 lead-free ceramics, Ceram Int. 39 (2013) S685–S689.

DOI: 10.1016/j.ceramint.2012.10.162

Google Scholar

[9] K. Wang, J.F. Li, (K, Na)NbO3-based lead-free piezoceramics: Phase transition, sintering and property enhancement, J Adv Ceram. 1 (2012) 24–37.

DOI: 10.1007/s40145-012-0003-3

Google Scholar
