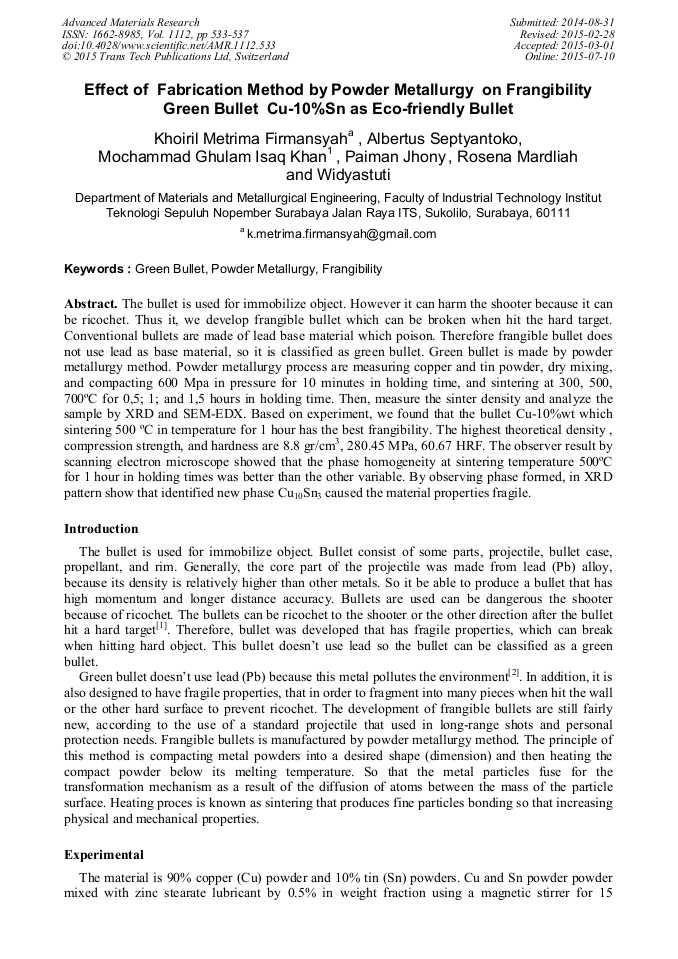

Effect of Fabrication Method by Powder Metallurgy on Frangibility Green Bullet Cu-10%Sn as Eco-Friendly Bullet

Abstract:

The bullet is used for immobilize object. However it can harm the shooter because it can be ricochet. Thus it, we develop frangible bullet which can be broken when hit the hard target. Conventional bullets are made of lead base material which poison. Therefore frangible bullet does not use lead as base material, so it is classified as green bullet. Green bullet is made by powder metallurgy method. Powder metallurgy process are measuring copper and tin powder, dry mixing, and compacting 600 Mpa in pressure for 10 minutes in holding time, and sintering at 300, 500, 700°C for 0,5; 1; and 1,5 hours in holding time. Then, measure the sinter density and analyze the sample by XRD and SEM-EDX. Based on experiment, we found that the bullet Cu-10%wt which sintering 500 °C in temperature for 1 hour has the best frangibility. The highest theoretical density , compression strength, and hardness are 8.8 gr/cm³, 280.45 MPa, 60.67 HRF. The observer result by scanning electron microscope showed that the phase homogeneity at sintering temperature 500°C for 1 hour in holding times was better than the other variable. By observing phase formed, in XRD pattern show that identified new phase Cu₁₀Sn₃ caused the material properties fragile.

• Periodical: Advanced Materials Research (Volume 1112)
• Pages: 533-537
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1112.533
• Online since: July 2015
• Authors: Khoiril Metrima Firmansyah*, Albertus Septyantoko, Mochammad Ghulam Isaq Khan, Paiman Jhony, Rosena Mardliah, Widyastuti Widyastuti
• Keywords: Frangibility, Green Bullet, Powder metallurgy

References

[1] S.W., Banovic, Microstructural Characterization and Mechanical Behaviour of Cu-Sn Frangible Bullets, Journal Material Science & Engineering, National Institute of Standards and Technology, United States, (2007).

DOI: 10.1016/j.msea.2007.01.113

[2] Mullins, John F, Frangible Ammunition The New Wave in Firearms Ammunition, (2010).

[3] Benini, Joseph C., Frangible Metal Bullets, Ammunition and Method of Making Such Articles, SCM Metal Products, Inc. USA, (2002).

[4] Mikko, Don., et. all, Frangible Bullets, Dynamic Research Technolgies, United States Army Criminal Investigation Laboratory (USACIL), Forest Park, (2008).

[5] Rydlo, M., Theoretical Criterion for Evaluation of the Frangibility Factor, Department of Weapons and Ammunition, University of Defence, Czech Republic, Journal Advances in Military Technology, (2002).
