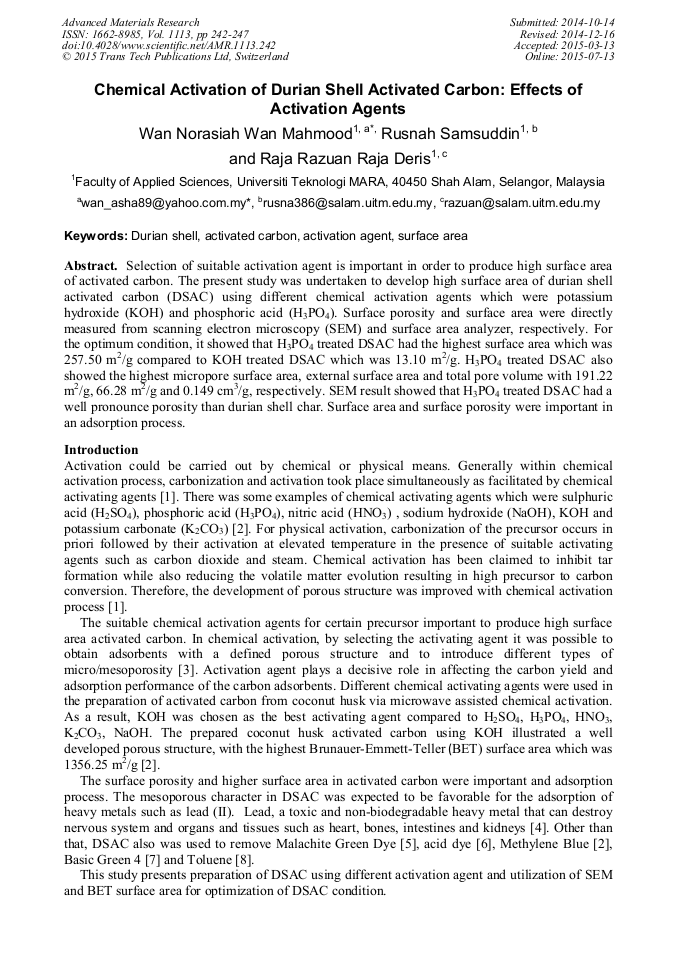

Chemical Activation of Durian Shell Activated Carbon: Effects of Activation Agents

Abstract:

Selection of suitable activation agent is important in order to produce high surface area of activated carbon. The present study was undertaken to develop high surface area of durian shell activated carbon (DSAC) using different chemical activation agents which were potassium hydroxide (KOH) and phosphoric acid (H₃PO₄). Surface porosity and surface area were directly measured from scanning electron microscopy (SEM) and surface area analyzer, respectively. For the optimum condition, it showed that H₃PO₄ treated DSAC had the highest surface area which was 257.50 m²/g compared to KOH treated DSAC which was 13.10 m²/g. H₃PO₄ treated DSAC also showed the highest micropore surface area, external surface area and total pore volume with 191.22 m²/g, 66.28 m²/g and 0.149 cm³/g, respectively. SEM result showed that H₃PO₄ treated DSAC had a well pronounce porosity than durian shell char. Surface area and surface porosity were important in an adsorption process.

• Periodical: Advanced Materials Research (Volume 1113)
• Pages: 242-247
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1113.242
• Online since: July 2015
• Authors: Wan Norasiah Wan Mahmood*, Rusnah Samsuddin, Raja Razuan Raja Deris
• Keywords: Activated Carbon, Activation Agent, Durian Shell, Surface Area

References

[1] T.C. Chandra, M.M. Mirna, J. Sunarso, Y. Sudaryanto, S. Ismadji, Activated carbon from durian shell: Preparation and characterization, Journal of the Taiwan Institute of Chemical Engineers. 40 (2009) 457-462.

DOI: 10.1016/j.jtice.2008.10.002

[2] K.Y. Foo, B.H. Hameed, Coconut husk derived activated carbon via microwave induced activation: Effects of activation agents, preparation parameters and adsorption performance, Chemical Engineering Journal. 184 (2012) 57-65.

DOI: 10.1016/j.cej.2011.12.084

[3] M.E. Ramos, P.R. Bonelli, S. Blacher, M.M.L. Ribeiro Carrott, P.J.M. Carrott, A.L. Cukierman, Effect of the activating agent on physico-chemical and electrical properties of activated carbon cloths developed from a novel cellulosic precursor, Colloids and Surfaces A: Physicochem. Eng. Aspects. 378 (2011).

DOI: 10.1016/j.colsurfa.2011.02.005

[4] S. Srikhun, S. Hirunpraditkoon, K. Nuithitikul, Lead Adsorption of Activated Carbon Synthesized from Durian Peel, Advances in Fluid Mechanics and Heat & Mass Transfer Lead. (n. d) 66-71.

[5] S. Srikhun, S. Hirunpraditkun, K. Nuithitikul, Adsorption of Malachite Green Dye onto Activated Carbon Derived from Durian Peel : Proceedings of the 7th IASME / WSEAS International Conference on Heat Transfer, Thermal Engineering and Environment. (2009).

[6] B.H. Hameed, H. Hakimi, Utilization of durian (Durio zibenthinus Murray) peel as low cost sorbent for the removal of acid dye from aqueous solutions, Biochemical Engineering Journal. 39 (2008) 338-343.

DOI: 10.1016/j.bej.2007.10.005

[7] K. Nuithitikul, S. Srikhun, S. Hirunpraditkoon, Influences of pyrolysis condition and acid treatment on properties of durian peel-based activated carbon, Bioresource Technology. 101 (2010) 426-429.

DOI: 10.1016/j.biortech.2009.07.040

[8] Y.J. Tham, P.A. Latif, A.M. Abdullah, A. Shamala-Devi, Y. H Taufiq-Yap, Performances of toluene removal by activated carbon derived from durian shell. Bioresource Technology. 102 (2011) 724-728.

DOI: 10.1016/j.biortech.2010.08.068

[9] A.T.M. Din, B.H. Hameed, A.L. Ahmad, Batch adsorption of phenol onto physiochemical-activated coconut shell. Journal of Hazardous Materials. 161 (2009) 1522-1529.

DOI: 10.1016/j.jhazmat.2008.05.009

[10] W. Li, K. Yang, J. Peng, L. Zhang, S. Guo, H. Xia, Effects of carbonization temperatures on characteristics of porosity in coconut shell chars and activated carbons derived from carbonized coconut shell chars. Industrial crops and products. 28 (2008).

DOI: 10.1016/j.indcrop.2008.02.012

[11] M.K.B. Gratuito, T. Panyathanmaporn, R. -A. Chumnanklang, N. Sirinuntawittaya, A. Dutta, Production of activated carbon from coconut shell: Optimization using response surface methodology, Bioresource Technology. 99 (2008) 4887-4895.

DOI: 10.1016/j.biortech.2007.09.042

[12] M. Molina-Sabio, F. Rodríguez-Reinoso, Role of chemical activation in the development of carbon porosity, Colloids and Surfaces A: Physicochem. Eng. Aspects. 241 (2004) 15-25.

DOI: 10.1016/j.colsurfa.2004.04.007

[13] A.L. Cazetta, A.M. M Vargas, E.M. Nogami, M.H. Kunita, M.R. Guilherme, A.C. Martins, T.L. Silva, J.C.G. Moraes, V.C. Almeida, NaOH-activated carbon of high surface area produced from coconut shell : Kinetics and equilibrium studies from the methylene blue adsorption, Chemical Engineering Journal. 174 (2011).

DOI: 10.1016/j.cej.2011.08.058

[14] O. W-. Achaw, G. Afrane, The evolution of the pore structure of coconut shells during the preparation of coconut-shell based activated carbons, Microporous and Mesoporous Materials. 112 (2008) 284-290.

DOI: 10.1016/j.micromeso.2007.10.001

[15] C. Saka, C, BET, TG-DTG, FT-IR, SEM, iodine number analysis and preparation of activated carbon from acorn shell by chemical activation with ZnCl2, Journal of Analytical and Applied Pyrolysis. 95 (2012) 21-24.

DOI: 10.1016/j.jaap.2011.12.020

[16] Z. Hu, M.P. Srinivasan, Preparation of high-surface-area activated carbons from coconut shell, Microporous and Mesoporous Materials. 27 (1999) 11-18.

DOI: 10.1016/s1387-1811(98)00183-8

[17] N. Passe-Coutrin, S. Altenor, D. Cossement, C. Jean-Marius, S. Gaspard, Comparison of parameters calculated from the BET and Freundlich isotherms obtained by nitrogen adsorption on activated carbos: A new method for calculating the specific surface area, Microporous and Mesoporous Materials. 111 (2008).

DOI: 10.1016/j.micromeso.2007.08.032

[18] M. Danish, R. Hashim, M.N. Mohamad Ibrahim, O. Sulaiman, Effect of acidic activating agents on surface area and surface functional groups of activated carbons produced from Acacia mangium wood, Journal of Analytical and Applied Pyrolysis. 104 (2013).

DOI: 10.1016/j.jaap.2013.06.003

[19] C. Nieto-Delgado, J.R. Rangel-Mendez, Production of activated carbon from organic by-products from the alcoholic beverage industry: Surface area and hardness optimization by using the response surface methodology, Industrial Crops and Products. 34 (2011).

DOI: 10.1016/j.indcrop.2011.05.014

[20] T.Y. Jun, S.D. Arumugam, N.H.A. Latip, A.M. Abdullah, M.A. Latif, Effect of Activation Temperature and Heating Duration on Physical Characteristics of Activated Carbon Prepared from Agriculture Waste, EnvironmentAsia. 3 (2010) 143-148.
