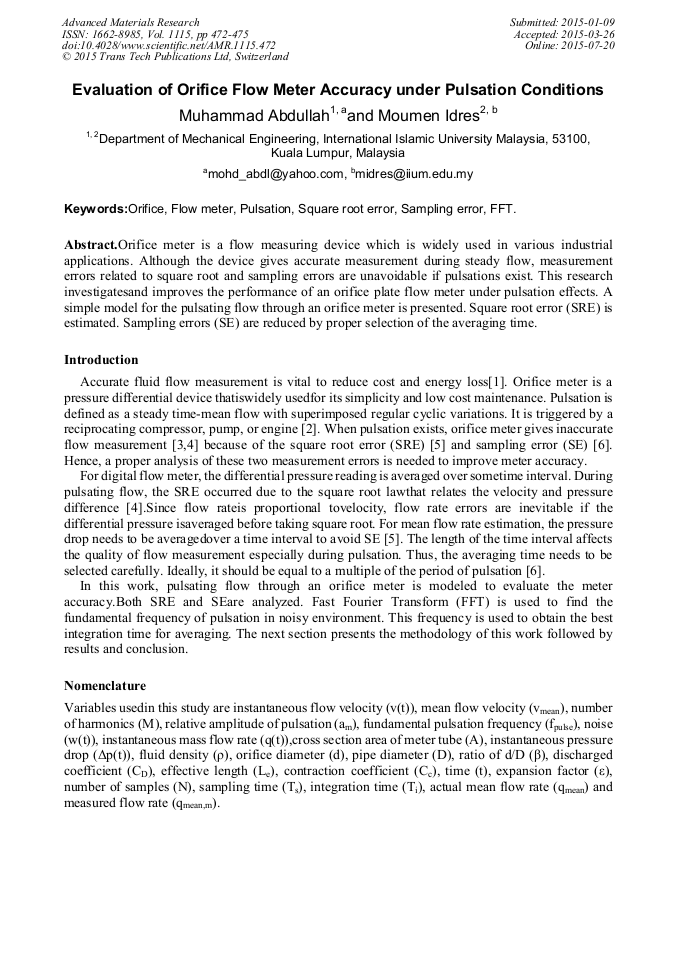

Evaluation of Orifice Flow Meter Accuracy under Pulsation Conditions

Abstract:

Orifice meter is a flow measuring device which is widely used in various industrial applications. Although the device gives accurate measurement during steady flow, measurement errors related to square root and sampling errors are unavoidable if pulsations exist. This research investigatesand improves the performance of an orifice plate flow meter under pulsation effects. A simple model for the pulsating flow through an orifice meter is presented. Square root error (SRE) is estimated. Sampling errors (SE) are reduced by proper selection of the averaging time.

• Periodical: Advanced Materials Research (Volume 1115)
• Pages: 472-475
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1115.472
• Online since: July 2015
• Authors: Muhammad Abdullah, Moumen Idres*
• Keywords: FFT, Flow Meter, Orifice, Pulsation, Sampling Error, Square Root Error

References

[1] D.L. George: Southwest Research Institute, San Antonio, TX (2002).

[2] R.J. McKee: Proceedings of the Twenty-Second Gulf Coast Measurement Short Course, Southwest Research Institute, San Antonio (1989) pp.112-118.

[3] R.S. Ettouney and M.A. El-Rifai: submitted to Journal of Petroleum Science and Engineering, Vol. 80 (2012), pp.102-106.

[4] D. R Smith, K.S. Waltson, S. Price and J.P. Smith: Operations Conference, American Gas Association, Chicago, Illinois (2002).

[5] K. Doblhoff-Dier, K. Kudlaty, M. Wiesinger and M. Gröschl: submitted to Flow Measurement and Instrumentation, Vol. 22 (2011), pp.97-103.

DOI: 10.1016/j.flowmeasinst.2010.12.001

[6] J. Berrebi, J. van Deventer, J. Delsing: Lule˚a University of Technology, Lule˚a, Sweden (2002).
