The Influence of Electric Parameters on Film Quality of GZO Thin Film Fabricated by APPJ Process

Abstract:

In this paper, APPJ (Atmospheric pressure Pules arc Plasma Jet) is used to generate a DC pulse source depositing GZO thin film under atmospheric pressure. Thus, no vacuum chamber needed leads to the cost downward. With scanning operation, makes single unit area into large size area. Several key process parameters have been studied, including the power supply voltage, DC pulse, the length of the nozzle extended head, and depositing gap to understand their relationship with the film quality and atmospheric plasma state.In this study, with adjusting DC pulse, the pulse frequency is found to have a great impact on the plasma state and the film quality. When the pulse frequency is near 25 kHz, lower sheet resistance can be retained. Besides, adjusting T_off time, the plasma and thin film quality are influenced more than T_on time. By changing the power supply voltage, the secondary-side voltage decreases with increasing of the instantaneous current; moreover, the plasma will become more intense.

You might also be interested in these eBooks

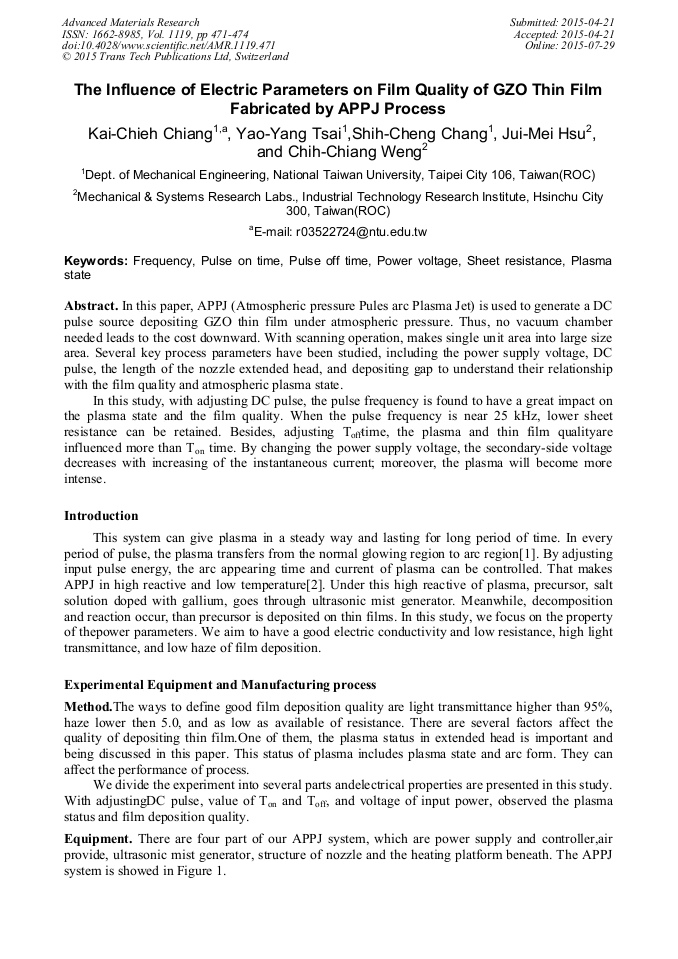

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1119)

Pages:

471-474

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1119.471

Citation:

Cite this paper

Online since:

July 2015

Authors:

Kai Chieh Chiang*, Yao Yang Tsai, Shih Cheng Chang, Jui Mei Hsu, Chih Chiang Weng

Keywords:

Frequency, Plasma State, Power Voltage, Pulse OFF Time, Pulse on Time, Sheet Resistance

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] C. -c. Hsu, C. -y. Wu, C. -w. Chen, and W. -c. Cheng: Japanese Journal of Applied PhysicsVol. 48 (2009).

Google Scholar

[2] C. C. Hsu and C. Y. W: Journal of Physics D-Applied PhysicsVol 42(2009), p.8.

Google Scholar

[3] Y. H. Choi, J. H. Kim, and Y. S. Hwang: Thin Solid FilmsVol. 506(2006), pp.389-395.

Google Scholar

[4] Y. W. Hsu: Study of an Atmospheric Pressure, Pulsed Arc Plasma Jet: Downstream Characterization and it Application to ZnO Thin Film Deposition, Master Thesis, National Taiwan University, Taiwan ROC (2010).

Google Scholar
