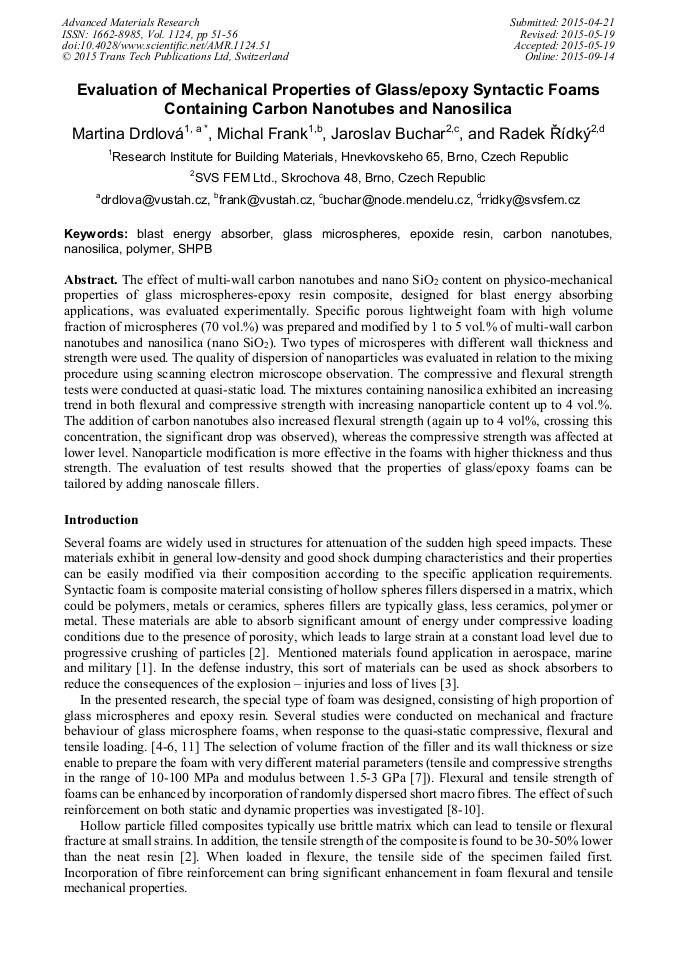

Evaluation of Mechanical Properties of Glass/Epoxy Syntactic Foams Containing Carbon Nanotubes and Nanosilica

Abstract:

The effect of multi-wall carbon nanotubes and nanoSiO₂ content on physico-mechanical properties of glass microspheres-epoxy resin composite, designed for blast energy absorbing applications, was evaluated experimentally. Specific porous lightweight foam with high volume fraction of microspheres (70 vol.%) was prepared and modified by 1 to 5 vol.% of multi-wall carbon nanotubes and nanosilica (nanoSiO₂). Two types of microsperes with different wall thickness and strength were used. The quality of dispersion of nanoparticles was evaluated in relation to the mixing procedure using scanning electron microscope observation. The compressive and flexural strength tests were conducted at quasi-static load. The mixtures containing nanosilica exhibited an increasing trend in both flexural and compressive strength with increasing nanoparticle content up to 4 vol.%. The addition of carbon nanotubes also increased flexural strength (again up to 4 vol%, crossing this concentration, the significant drop was observed), whereas the compressive strength was affected at lower level. Nanoparticle modification is more effective in the foams with higher thickness and thus strength. The evaluation of test results showed that the properties of glass/epoxy foams can be tailored by adding nanoscale fillers.

• Periodical: Advanced Materials Research (Volume 1124)
• Pages: 51-56
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1124.51
• Online since: September 2015
• Authors: Martina Drdlová*, Michal Frank, Jaroslav Buchar, Radek Řídký
• Keywords: Blast Energy Absorber, Carbon Nanotubes, Epoxide Resin, Glass Microspheres, Nanosilica, Polymer, SHPB

References

[1] J. Bibin, C.P.R. Nair, In Handbook of Thermoset plastics, (Elsevier, 2014), pp.411-55.

[2] M. Dimchev, N. Gupta, R. Caeti. Effect of carbon nanofibers on tensile and compressive characteristics of hollow particle filled composites Mater Design 31 (2010).

DOI: 10.1016/j.matdes.2009.09.007

[3] http: /www. trelleborg. com/en/Advanced-Engineering-Materials/Markets-Applications/Defence/Syntactic-Foam-Blast-Protection.

[4] N. Gupta, E. Woldesenbet, P. Mensah. Compression properties of syntactic foams: effect of cenosphere radius ratio and specimen aspect ratio. Compos Part A-Appl S 35, 1 (2004).

DOI: 10.1016/j.compositesa.2003.08.001

[5] M. Porfiri, N. Gupta. Effect of volume fraction and wall thickness on the elastic properties of hollow particle filled composites. Compos Part B-Eng 40, 2 (2009).

DOI: 10.1016/j.compositesb.2008.09.002

[6] N. Gupta, W. Ricci. Comparison of compressive properties of layered syntactic foamshaving gradient in microballoon volume fraction and wall thickness. Mater Sci Eng 427, 1-2 (2006).

DOI: 10.1016/j.msea.2006.04.078

[7] N.Q. Nguyen, N. Gupta. Analyzing the effect of fiber reinforcement on properties of syntactic foams. Materials Science and Engineering. Mater Sci Eng 527 (2010).

DOI: 10.1016/j.msea.2010.06.077

[8] M.V. Alonso, M.L. Auad, S. Nutt. Short-fiber-reinforced epoxy foams. Compos Part A-Appl S 37, 11 (2006).

DOI: 10.1016/j.compositesa.2005.12.011

[9] C.S. Karthikeyan, S. Sankaran, Kishore. Elastic behaviour of plain and fibre-reinforced syntactic foams under compression. Mater Lett 58, 6 (2004).

DOI: 10.1016/j.matlet.2003.08.012

[10] J.A.M. Ferreira, C. Capela, J.D. Costa. A study of the mechanical behaviour on fibre reinforced hollow microspheres hybrid composites. Compos Part A-Appl S 41, 3, (2010).

DOI: 10.1016/j.compositesa.2009.10.018

[11] N. Gupta, V. Ch. Shunmugasamy. High strain rate compressive response of syntactic foams: Trends in mechanical properties and failure mechanism Mater Sci Eng A 528 (2011).

DOI: 10.1016/j.msea.2011.06.073

[12] Y. Zheng, R. Ning, Mater Lett 57 (2003).

[13] L. Sun, R.F. Gibson, F. Gordaninejad, J. Suhr. Energy absorption capability of nanocomposites: A review Composites Science and Technology 69 (2009).

DOI: 10.1016/j.compscitech.2009.06.020
