Optimization and Characterization of Anatase Formed on Anodized Titanium in Sulfuric Acid

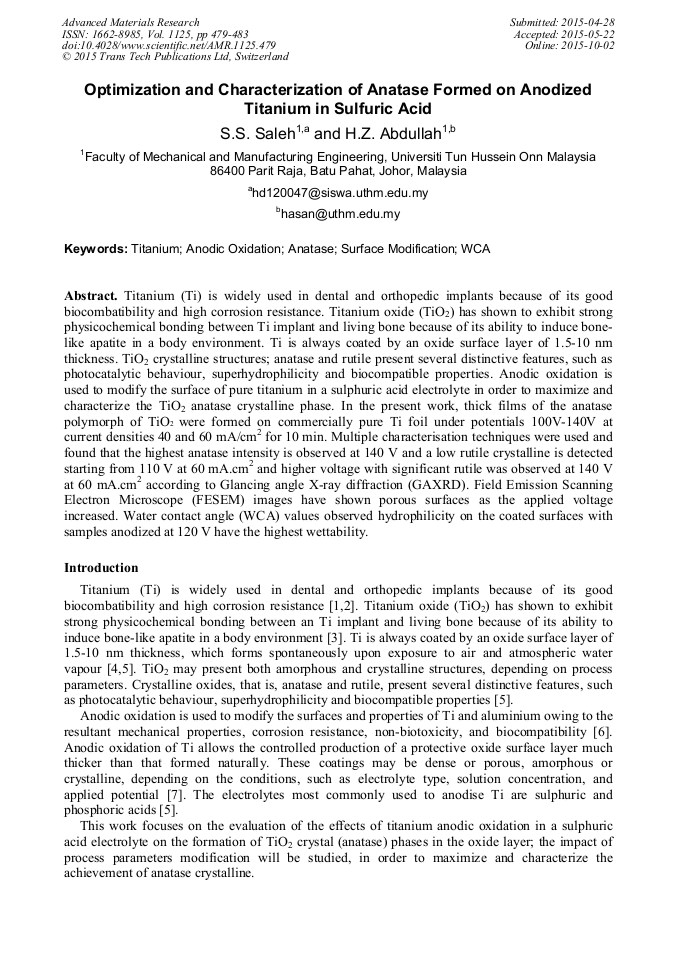

Article Preview

Abstract:

Titanium (Ti) is widely used in dental and orthopedic implants because of its good biocombatibility and high corrosion resistance. Titanium oxide (TiO2) has shown to exhibit strong physicochemical bonding between Ti implant and living bone because of its ability to induce bone-like apatite in a body environment. Ti is always coated by an oxide surface layer of 1.5-10 nm thickness. TiO2 crystalline structures; anatase and rutile present several distinctive features, such as photocatalytic behaviour, superhydrophilicity and biocompatible properties. Anodic oxidation is used to modify the surface of pure titanium in a sulphuric acid electrolyte in order to maximize and characterize the TiO2 anatase crystalline phase. In the present work, thick films of the anatase polymorph of TiO2 were formed on commercially pure Ti foil under potentials 100V-140V at current densities 40 and 60 mA/cm2 for 10 min. Multiple characterisation techniques were used and found that the maximum level of significantly formed anatase intensity where no significant rutile formation is observed at potential 140 V according to Glancing angle X-ray diffraction (GAXRD). Field Emission Scanning Electron Microscope (FESEM) images have shown porous surfaces as the applied voltage increased. Water contact angle (WCA) values observed hydrophilicity on the coated surfaces with samples anodized at 120 V have the highest wettability.

You might also be interested in these eBooks
Materials, Industrial, and Manufacturing Engineering Research Advances 2 View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1125)

Pages:

479-483

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1125.479

Citation:

Cite this paper

Online since:

October 2015

Authors:

Saleh S. Saleh*, Hasan Zuhudi Abdullah

Keywords:

Anatase, Anodic Oxidation, Surface Modification, Titanium, WCA

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2015 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] R. Adell, B. Eriksson, U. Lekholm, P. I. Branemark, T. Jemt, A long-term follow-up study of osseointegrated implants in the treatment of the totally edentulous jaw, Int. J. Oral. Maxillofac Implants. 5 (1990) 347–359.

DOI: 10.1016/s0300-9785(81)80077-4

Google Scholar

[2] D. van Steenberghe, U. Lekholm, C. Bolender, T. Folmer, P. Henry, I. Herrmann, K. Higuchi, W. Laney, U. Linden, P. Astrand, Applicability of osseointegrated oral implants in the rehabilitation of partial edentulism: a prospective multicenter study on 558 fixtures, Int. J. Oral. Maxillofac Implants. 5 (1990).

Google Scholar

[3] R. Hazan, R. Brener, U. Oron, Bone growth to metal implants is regulated by their surface chemical properties, Biomater. 14 (1993) 570–574.

DOI: 10.1016/0142-9612(93)90172-x

Google Scholar

[4] Y.T. Sul, C.B. Johanson, Y. Jeong, and T. Albrektsson, The electrochemical oxide growth behaviour on titanium in acid and alkaline electrolytes, Med. Eng. Phys. 23 (2001) 329-346.

DOI: 10.1016/s1350-4533(01)00050-9

Google Scholar

[5] M.V. Diamanti, M.P. Pedeferri. Effect of anodic oxidation parameters on the titanium oxide formation, Corr. Sci. 49 (2007) 939-948.

DOI: 10.1016/j.corsci.2006.04.002

Google Scholar

[6] H.Z. Abdullah, C.C. Sorrell, Preparation and characterisation of TiO2 thick films fabricated by anodic oxidation, Mater. Sci. Forum. 561-565 (2007) 2159-2162.

DOI: 10.4028/www.scientific.net/msf.561-565.2159

Google Scholar

[7] C. Jaeggi, P. Kern, J. Michler, T. Zehnder, H. Siegenthaler, Anodic thin films on titanium used as masks for surface micropatterning of biomedical devices, Surf. Coat. Tech. 200 (2005) 1913-(1919).

DOI: 10.1016/j.surfcoat.2005.08.021

Google Scholar

[8] H.Z. Abdullah, Titanium surface modification by oxidation for biomedical application, Ph. D, University New South Wales, (2010).

Google Scholar

[9] T.H. Teh, A. Berkani, S. Mato, P. Skeldon, G.E. Thompson, H. Habazaki, K. Shimizu, Initial stages of plasma electrolytic oxidation of titanium. Corr. Sci. 45 (2003) 2757–2768.

DOI: 10.1016/s0010-938x(03)00101-x

Google Scholar

[10] K. Das, S. Bose, A. Bandyopadhyay. Surface modification and cell-materials interactions with anodized Ti. Acta. Biomater. 3 (2007) 573–85.

DOI: 10.1016/j.actbio.2006.12.003

Google Scholar

[11] D. Yamamoto, I. Kawai, K. Kuroda, R. Ichino, M. Okido, A. Seki, Osteoconductivity and hydrophilicity of TiO2 coatings on Ti substrates prepared by different oxidizing processes, Bioinorg. Chem. Appl. 2012 (2012) 7.

DOI: 10.1155/2012/495218

Google Scholar
