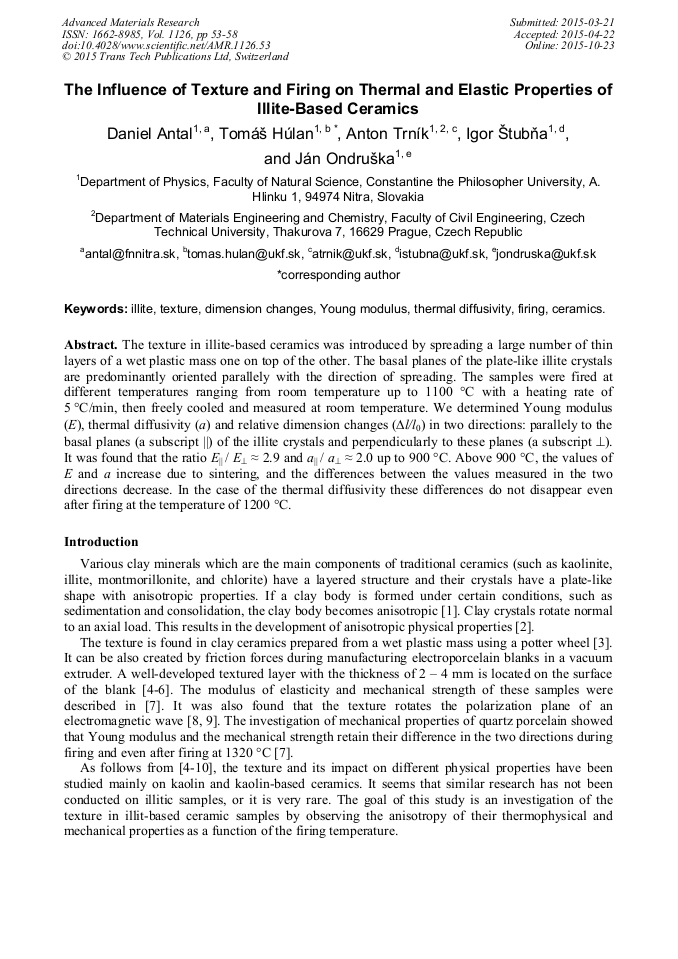

The Influence of Texture and Firing on Thermal and Elastic Properties of Illite-Based Ceramics

Abstract:

The texture in illite-based ceramics was introduced by spreading a large number of thin layers of a wet plastic mass one on top of the other. The basal planes of the plate-like illite crystals are predominantly oriented parallely with the direction of spreading. The samples were fired at different temperatures ranging from room temperature up to 1100 °C with a heating rate of 5 °C/min, then freely cooled and measured at room temperature. We determined Young modulus (E), thermal diffusivity (a) and relative dimension changes (Δl/l₀) in two directions: parallely to the basal planes (a subscript ||) of the illite crystals and perpendicularly to these planes (a subscript ⊥). It was found that the ratio E_|| / E_⊥ ≈ 2.9 and a_|| / a_⊥ ≈ 2.0 up to 900 °C. Above 900 °C, the values of E and a increase due to sintering, and the differences between the values measured in the two directions decrease. In the case of the thermal diffusivity these differences do not disappear even after firing at the temperature of 1200 °C.

• Periodical: Advanced Materials Research (Volume 1126)
• Pages: 53-58
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1126.53
• Online since: October 2015
• Authors: Daniel Antal, Tomáš Húlan*, Anton Trník, Igor Štubňa, Ján Ondruška
• Keywords: Ceramic, Dimension Changes, Firing, Illite, Texture, Thermal Diffusivity, Young Modulus

References

[1] T. Vanorio, M. Prasad, A. Nur, Elastic properties of dry clay mineral aggregates, suspensions and sandstones, Geophysical Journal International, 155 (2003) 319-326.

DOI: 10.1046/j.1365-246x.2003.02046.x

[2] M.B. Clennell, D.N. Dewhurst, K.M. Brown, G.K. Westbrook, Permeability of consolidated clays, Geological Society, Special Publications, 158 (1999) 79-96.

DOI: 10.1144/gsl.sp.1999.158.01.07

[3] J. Barrios Neira, J.C. Martín de la Cruz, Y.M. Montealegre Contreras, Study of the raw materials used in the manufacture of ceramic in Fran Ali (Oued Lau. Marruecos), Boletin de la Societad Espanola de Ceramica y Vidrio, 51 (2012) 222-230.

DOI: 10.3989/cyv.322012

[4] V. Trnovcová, I. Furár, F. Hanic, Influence of technological texture on electrical properties of industrial ceramics, Physics and Chemistry of Solids, 68 (2007) 1135-1139.

DOI: 10.1016/j.jpcs.2007.03.004

[5] I. Štubňa, Š. Valovič, Thermal expansion of textured electroceramics, Industrial Ceramics, 24 (2004) 121-124.

[6] I. Štubňa, V. Trnovcová, The effect of texture on thermal expansion of extruded ceramics, Ceramics – Silikáty, 42 (1998) 21-24.

[7] I. Štubňa, A. Lintnerová, L. Vozár, Anisotropic mechanical properties of textured quartz porcelain, Ceramics – Silíkáty, 52 (2008) 90-94.

[8] A.N. Beljanin, V.N. Rudakov, Radiodefectoscopy of the ordered inhomogeneous dielectrics, Izvestia Vuzov – Defektoskopia, 4 (1968) 1-4 (in Russian).

[9] I. Štubňa, M. Kalužná, V. Trnovcová, Mapping the texture of electroporcelain blank by radiointroscopy, Industrial Ceramics, 30 (2010) 17-20.

[10] K. Boussois, S. Deniel, N. Tessier-Doyen, D. Chateigner, C. Dublanche-Tixier, P. Blanchart, Characterization of textured ceramics containing mullite from phyllosilicates, Ceramics International, 39 (2013) 5327-5333.

DOI: 10.1016/j.ceramint.2012.12.038

[11] R. Podoba, Ľ. Podobník, A. Trník, Upgrading of TGA/DTA analyzer derivatograph, Épitőanyag 64 (2012) 28-29.

DOI: 10.14382/epitoanyag-jsbcm.2012.5

[12] T. Húlan, A. Trník, I. Štubňa, The apparatus form measurement of Young modulus of ceramics at elevated temperatures, Vestnik MGOU, seria fizika – matematika (2014) 21-29.

[13] H. Mehling, G. Hautzinger, O. Nilsson, J. Fricke, R. Hofmann, O. Hahn, Thermal diffusivity of semitransparent materials determined by the laser-flash method applying a new analytical model, International Journal of Thermophysics, 19(3) (1998).

DOI: 10.1023/a:1022611527321

[14] T. Húlan, I. Štubňa, A. Trník, P. Bačík, T. Kaljuvee, L. Vozár, Thermomechanical analysis of illite from Fuzérradvány, Materials Science (Medžiagotyra), accepted manuscript.

DOI: 10.5755/j01.ms.21.3.7152

[15] V.A. Drits, D. McCarty, The nature of structure-bonded H2O in illite and leucophyllite from dehydratation and dehydroxylation experiments, Clay and Clay Minerals, 55 (2007) 45-58.

DOI: 10.1346/ccmn.2007.0550104

[16] C. Venturelli, M. Paganelli, Sintering behaviour of clays for the production of ceramics, Ceramic Forum International Ber. DKG, 84 (2007) E1-E3.
