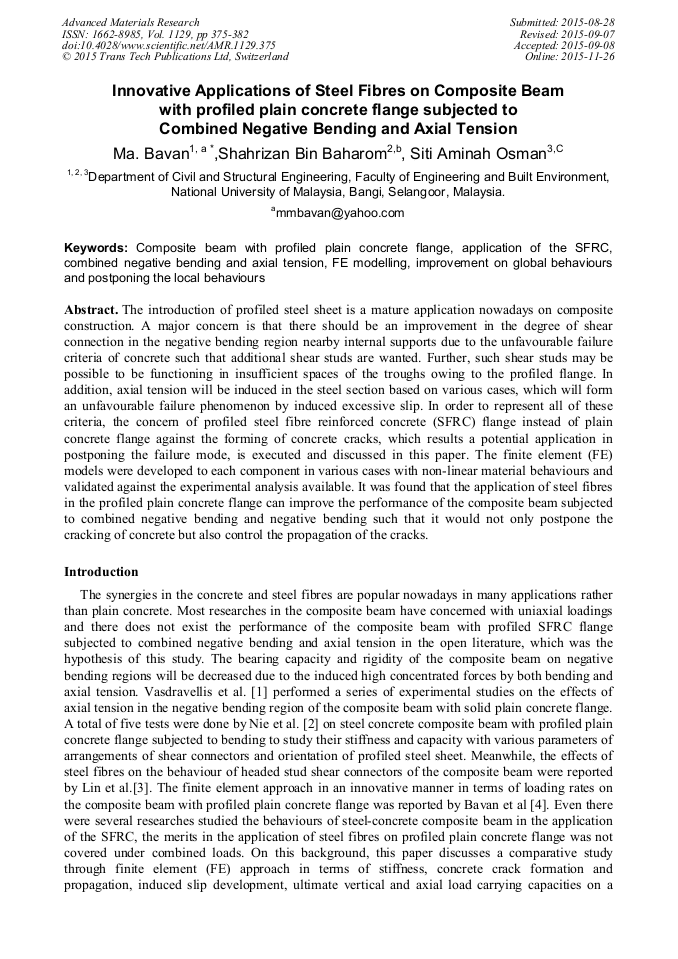

Innovative Applications of Steel Fibres on Composite Beam with Profiled Plain Concrete Flange Subjected to Combined Negative Bending and Axial Tension

Abstract:

The introduction of profiled steel sheet is a mature application nowadays on composite construction. A major concern is that there should be an improvement in the degree of shear connection in the negative bending region nearby internal supports due to the unfavourable failure criteria of concrete such that additional shear studs are wanted. Further, such shear studs may be possible to be functioning in insufficient spaces of the troughs owing to the profiled flange. In addition, axial tension will be induced in the steel section based on various cases, which will form an unfavourable failure phenomenon by induced excessive slip. In order to represent all of these criteria, the concern of profiled steel fibre reinforced concrete (SFRC) flange instead of plain concrete flange against the forming of concrete cracks, which results a potential application in postponing the failure mode, is executed and discussed in this paper. The finite element (FE) models were developed to each component in various cases with non-linear material behaviours and validated against the experimental analysis available. It was found that the application of steel fibres in the profiled plain concrete flange can improve the performance of the composite beam subjected to combined negative bending and negative bending such that it would not only postpone the cracking of concrete but also control the propagation of the cracks.

• Periodical: Advanced Materials Research (Volume 1129)
• Pages: 375-382
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1129.375
• Online since: November 2015
• Authors: Mahesan Bavan*, Shahrizan bin Baharom, Siti Aminah Osman
• Keywords: Application of SFRC, Combined Negative Bending and Axial Tension, Composite Beam with Profiled Plain Concrete Flange, FE Modelling, Improvement on Global Behaviours, Postponing the Local Behaviours

References

[1] G. Vasdravellis, B. Uy, E.L. Tan, B. Kirkland, The effects of axial tension on the Hogging moment region of composite beams, J Constr Steel Res 68 (2012) 20-33.

DOI: 10.1016/j.jcsr.2011.06.017

[2] J. Nie, C.S. Cai, T. Wang, Stiffness and capacity of steel-concrete composite beams with profiled sheeting, Engineering Structures 27 (2005) 1074-1085.

DOI: 10.1016/j.engstruct.2005.02.016

[3] W. Lin, T. Yoda, N. Taniguchi, Application of SFRC in steel-concrete composite beam subjected to hogging moment, Journal of Construction steel research (2014) 175-183.

DOI: 10.1016/j.jcsr.2014.05.008

[4] M. Bavan, S. Baharom, A. Suyanthiran, Improved 3D-nonlinear FEM model to simulate continuous steel-concrete composite beams with steel metal-ribbed decking, The Pacific Structural Steel Conference, Singapore, 2013, pp.61-66.

DOI: 10.3850/978-981-07-7137-9_069

[5] S.O. Mpegetis, Behaviour and design of steel fibre reinforced concrete slabs, PhD Thesis, Department of Civil and Environmental Engineering, Imperial College London, (2012).

[6] P. Desayi, S. Krishnan. Equation for the stress-strain curve of concrete. ACIJ Proceed. 61(22) (1964) 345-350.

[7] BS EN 1994-1-1, Euro code 4, Design of composite steel and concrete structure; Part 1. 1, general rules and rules for buildings, London (UK); British Standards Institution (2004).

[8] P. Kmiecik, M. Kaminski, Proceedings of conference on modelling of reinforced concrete structures and composite structures with concrete strength degradation taken into consideration in Archives of Civil and Mechanical Engineering VI, Wroclaw, Poland, 2011, pp.623-636.

DOI: 10.1016/s1644-9665(12)60105-8

[9] J. Lubliner, J. Oliver, S. Oller, E. Onate. A plastic-damage model for concrete. International Journal of Solids and Structures (1989) 299-329.

DOI: 10.1016/0020-7683(89)90050-4

[10] N. Gattesco. Analytical modelling of nonlinear behavior of composite beams with deformable connection. J Constr Steel Res (1999) 195-218.

DOI: 10.1016/s0143-974x(99)00026-7

[11] ABAQUS user's manual, version 6. 11, Dassault Systèmes Simulia Corp., Providence, RI, USA.
