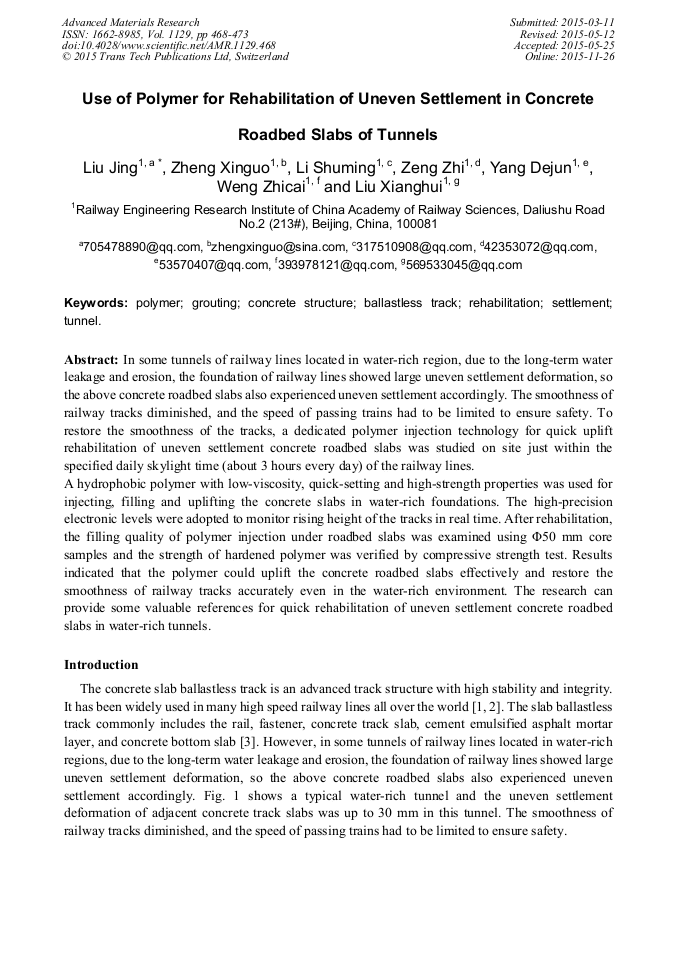

Use of Polymer for Rehabilitation of Uneven Settlement in Concrete Roadbed Slabs of Tunnels

Abstract:

In some tunnels of railway lines located in water-rich region, due to the long-term water leakage and erosion, the foundation of railway lines showed large uneven settlement deformation, so the above concrete roadbed slabs also experienced uneven settlement accordingly. The smoothness of railway tracks diminished, and the speed of passing trains had to be limited to ensure safety. To restore the smoothness of the tracks, a dedicated polymer injection technology for quick uplift rehabilitation of uneven settlement concrete roadbed slabs was studied on site just within the specified daily skylight time (about 3 hours every day) of the railway lines. A hydrophobic polymer with low-viscosity, quick-setting and high-strength properties was used for injecting, filling and uplifting the concrete slabs in water-rich foundations. The high-precision electronic levels were adopted to monitor rising height of the tracks in real time. After rehabilitation, the filling quality of polymer injection under roadbed slabs was examined using Φ50 mm core samples and the strength of hardened polymer was verified by compressive strength test. Results indicated that the polymer could uplift the concrete roadbed slabs effectively and restore the smoothness of railway tracks accurately even in the water-rich environment. The research can provide some valuable references for quick rehabilitation of uneven settlement concrete roadbed slabs in water-rich tunnels.

• Periodical: Advanced Materials Research (Volume 1129)
• Pages: 468-473
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1129.468
• Online since: November 2015
• Authors: Jing Liu*, Xin Guo Zheng, Shu Ming Li, Zhi Zeng, De Jun Yang, Zhi Cai Weng, Xiang Hui Liu
• Keywords: Ballastless Track, Concrete Structure, Grouting, Polymer, Rehabilitation, Settlement, Tunnel

References

[1] Zheng X. G., Liu J. et al., Preparation of Cement Emulsified Asphalt Mortar for CRTSⅡSlab Ballastless Track, Railway Engineering, (8), 2009, pp.121-124 (in Chinese).

[2] Jin, S. H., Chen, X. F. et al., Key technologies of CA mortar for slab track, China Railway Science, 27(2), 2006, p.20–24 (in Chinese).

[3] Zeng, Z., Zheng, X. G. et al., Construction technology of cement-emulsified asphalt mortar used in CRTS II ballastless slab track, Railway Engineering, (9), 2009, p.97–100 (in Chinese).

DOI: 10.1061/9780784412299.0065

[4] O. Buzzi , S. Fityus, Y. Sasaki et al., Structure and properties of expanding polyurethane foam in the context of foundation remediation in expansive soil, Mechanics of Materials, 40, 2008, pp.1012-1021.

DOI: 10.1016/j.mechmat.2008.07.002

[5] Seo D, Youn J.R., Numerical analysis on reaction injection molding of polyurethane foam by using a finite volume method, Polymer, 46, 2005, p.6482–6493.

DOI: 10.1016/j.polymer.2005.03.126

[6] Byung-Sik Chun, Dong-Seong Ryu., A Study on Applications of Polyurethane Injection Material for Ground Improvement, Journal of Civil Engineering, 4(2), 2000, pp.113-118.

DOI: 10.1007/bf02830823

[7] Aksoy CO., Chemical injection application at tunnel service shaft to prevent ground settlement induced by groundwater drainage: a case study, International Journal of Rock Mechanics and Mining Sciences, 45, 2008, p.376–383.

DOI: 10.1016/j.ijrmms.2007.06.005

[8] Ahmet Varol, Suleyman Dalgıc., Grouting applications in the Istanbul metro Turkey, Tunneling and Underground Space Technology, 21, 2006, p.602–612.

DOI: 10.1016/j.tust.2005.11.002
