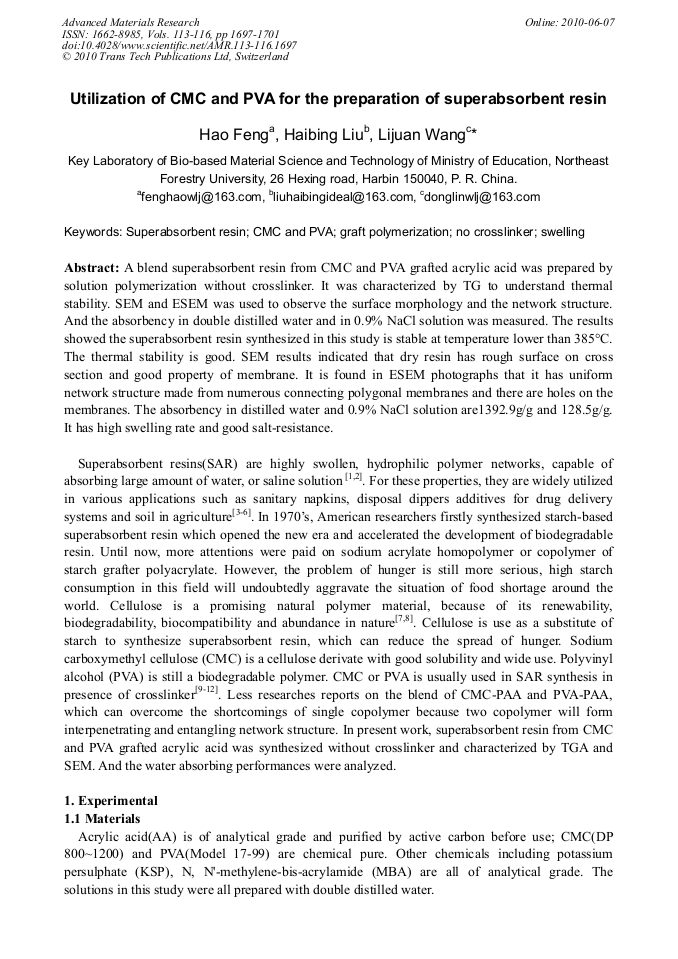

Utilization of CMC and PVA for the Preparation of Superabsorbent Resin

Abstract:

A blend superabsorbent resin from CMC and PVA grafted acrylic acid was prepared by solution polymerization without crosslinker. It was characterized by TG to understand thermal stability. SEM and ESEM was used to observe the surface morphology and the network structure. And the absorbency in double distilled water and in 0.9% NaCl solution was measured. The results showed the superabsorbent resin synthesized in this study is stable at temperature lower than 385°C. The thermal stability is good. SEM results indicated that dry resin has rough surface on cross section and good property of membrane. It is found in ESEM photographs that it has uniform network structure made from numerous connecting polygonal membranes and there are holes on the membranes. The absorbency in distilled water and 0.9% NaCl solution are1392.9g/g and 128.5g/g. It has high swelling rate and good salt-resistance.

• Periodical: Advanced Materials Research (Volumes 113-116)
• Pages: 1697-1701
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.113-116.1697
• Online since: June 2010
• Authors: Hao Feng, Hai Bing Liu, Li Juan Wang
• Keywords: Ceramic Matrix Composite (CMC), Graft Polymerization, No Crosslinker, PVA, Superabsorbent Resin, Swelling

References

[1] Lu Shaojie, Duan Menglin, Lin Songbai. Synthesis of superabsorbent starch-graft -poly (potassium acrylate-co-acrylamide) and its properties. Journal of Applied Polymer Science Vol. 88(2003), pp.1536-1542.

DOI: 10.1002/app.12025

[2] Zhao Ying, Su Haijia, Fang Li, et al. Superabsorbent hydrogels from poly(aspartic acid) with salt-, temperature- and pH-responsiveness properties. Polymer Vol. 46(2005), pp.5368-5376.

DOI: 10.1016/j.polymer.2005.04.015

[3] Jun Yang, Li Fang, Tianwei Tan. Synthesis and characterization of superabsorbent hydrogels composites based on polysuccinimide. Journal of Applied Polymer Science Vol. 102(2006), pp.550-557.

DOI: 10.1002/app.24282

[4] K. Xu, W. D. Zhang, Y. M. Yue, et al. Swelling behaviors of a three-component copolymer (starch graft sodium acrylate and 2-acrylamido-2-methylpropanosulfonic acid) synthesized by microwave polymerization. Journal of Applied Polymer ScienceVol. 98(2005).

DOI: 10.1002/app.22234

[5] Li An, Zhang Junping, Wang. Aiqin. Utilization of starch and clay for the preparation of superabsorbent composite. Bioresource Technology Vol. 98(2007), pp.327-332.

DOI: 10.1016/j.biortech.2005.12.026

[6] Zhang Ji , Yuan Kun, Wang Yunpu, et al. Preparation and properties of polyacrylate/bentonite superabsorbent hybrid via intercalated polymerization. Materials Letters Vol. 61(2007), pp.316-320.

DOI: 10.1016/j.matlet.2006.04.055

[7] Dong Haiqing, Xu Qi, Li Yongyong, et al. The synthesis of biodegradable graft copolymer cellulose-graft-poly(l-lactide) and the study of its controlled drug release. Colloids and Surfaces B: Biointerfaces Vol. 66(2008), pp.26-33.

DOI: 10.1016/j.colsurfb.2008.05.007

[8] Zhu Jiang, Wang Wentao, Wang Xiuli, et al. Green synthesis of a novel biodegradable copolymer base on cellulose and poly(p-dioxanone) in ionic liquid. Carbohydrate Polymers Vol. 76(2009), pp.139-144.

DOI: 10.1016/j.carbpol.2008.10.004

[9] Chunyu Chang, Bo Duan, Jie Cai, Lina Zhang. Superabsorbent hydrogels based on cellulose for smart swelling and controllable delivery. European Polymer Journal Vol. 46 (2010), pp.92-100.

DOI: 10.1016/j.eurpolymj.2009.04.033

[10] H.L. Abd El-Mohdy. Water sorption behavior of CMC/PAM hydrogels prepared by c-irradiation and release of potassium nitrate as agrochemical. Reactive & Functional Polymers Vol. 67 (2007), pp.1094-1102.

DOI: 10.1016/j.reactfunctpolym.2007.07.002

[11] Baljit Singh, Vikrant Sharma. Design of psyllium-PVA-acrylic acid based novel hydrogels for use in antibiotic drug delivery. International Journal of Pharmaceutics Vol. 389 (2010), pp.94-106.

DOI: 10.1016/j.ijpharm.2010.01.022

[12] Mehrdad Kokabi, Mohammad Sirousazar, Zuhair Muhammad Hassan. PVA-clay nanocomposite hydrogels for wound dressing. European Polymer Journal Vol. 43 (2007), pp.773-781.

DOI: 10.1016/j.eurpolymj.2006.11.030
