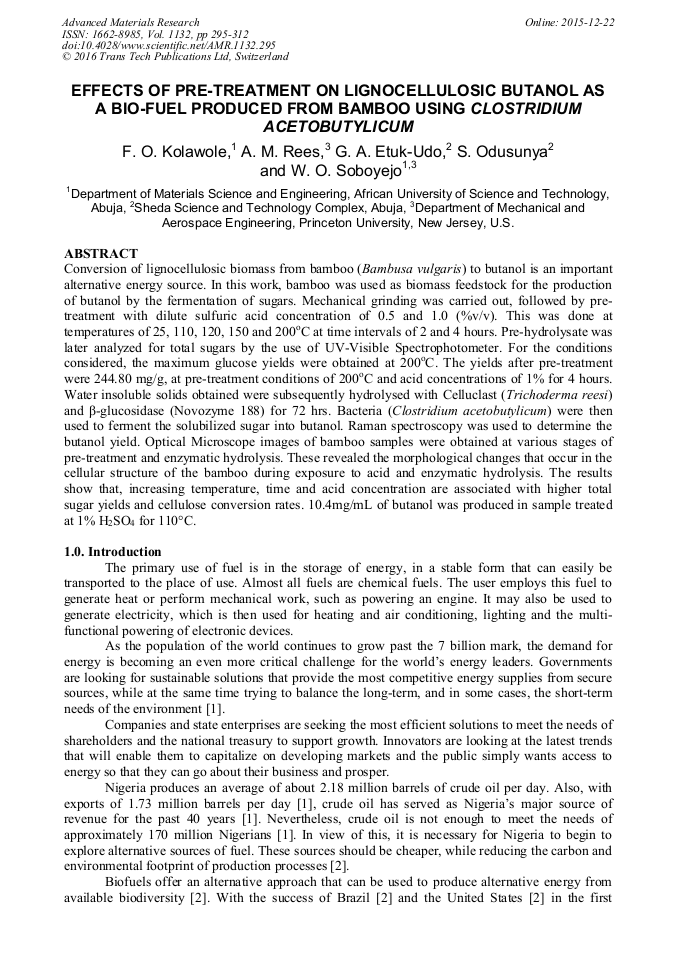

Effects of Pre-Treatment on Lignocellulosic Butanol as a Bio-Fuel Produced from Bamboo Using Clostridium acetobutylicum

Abstract:

Conversion of lignocellulosic biomass from bamboo (Bambusa vulgaris) to butanol is an important alternative energy source. In this work, bamboo was used as biomass feedstock for the production of butanol by the fermentation of sugars. Mechanical grinding was carried out, followed by pre-treatment with dilute sulfuric acid concentration of 0.5 and 1.0 (%v/v). This was done at temperatures of 25, 110, 120, 150 and 200°C at time intervals of 2 and 4 hours. Pre-hydrolysate was later analyzed for total sugars by the use of UV-Visible Spectrophotometer. For the conditions considered, the maximum glucose yields were obtained at 200°C. The yields after pre-treatment were 244.80 mg/g, at pre-treatment conditions of 200°C and acid concentrations of 1% for 4 hours. Water insoluble solids obtained were subsequently hydrolysed with Celluclast (Trichoderma reesi) and β-glucosidase (Novozyme 188) for 72 hrs. Bacteria (Clostridium acetobutylicum) were then used to ferment the solubilized sugar into butanol. Raman spectroscopy was used to determine the butanol yield. Optical Microscope images of bamboo samples were obtained at various stages of pre-treatment and enzymatic hydrolysis. These revealed the morphological changes that occur in the cellular structure of the bamboo during exposure to acid and enzymatic hydrolysis. The results show that, increasing temperature, time and acid concentration are associated with higher total sugar yields and cellulose conversion rates. 10.4mg/mL of butanol was produced in sample treated at 1% H₂SO₄ for 110°C.

• Periodical: Advanced Materials Research (Volume 1132)
• Pages: 295-312
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1132.295
• Online since: December 2015
• Authors: F.O. Kolawole, A.M. Rees, G.A. Etuk-Udo, Shola Odusunya, W.O. Soboyejo

References

[1] Gbadebo, Olusegun Odularu;. Chinedu Okonkwo,. Does energy consumption contribute to economic performance? Empirical evidence from Nigeria. Journal of Economics and International Finance. 2009, 1, 2.

[2] www. Accessscience. com. AccessScience |Encyclopedia Article | Alcohol fuel,. Retrieved 2008-11-06.

[3] Amanda M. M. Rees: Bamboo to Butanol: Production of Lignocellulosic Butanol through Fermentation by Clostridia, Senior Thesis, Department of Chemical and Biochemical Engineering, Princeton University, Princeton, New Jersey, USA. (2012).

[4] Sun, Y.; Cheng, J. Hydrolysis of lignocellulosic materials for ethanol production: a review. Bioresource Technology. 2002, 83, 1-11.

DOI: 10.1016/s0960-8524(01)00212-7

[5] Mutreja, R.; Das, D.; Goyal, D.; Goyal, A. Bioconversion of agricultural waste to ethanol by SSF using recombinant cellulase from Clostridium thermocellum. Enzyme Research. (2011).

DOI: 10.4061/2011/340279

[6] Ezeji, T.; Qureshi, N.; Blaschek, H. Butanol production from agricultural residues: impact of degradation products on Clostridium beijerinckii growth and butanol fermentation. Biotechnology and Bioengineering. 2007, 97, 1460- 1469.

DOI: 10.1002/bit.21373

[7] Glucose (HK) Assay Kit Technical Bulletin. Sigma.

[8] Deschatelets, L.; Yu, E. A simple pentose assay for biomass conversion studies. Appl. Microbiol. Biotechnology. 1986, 94, 397-385.

DOI: 10.1007/bf00294594

[9] Pingali, S.; Urban, V.; Heller, W.; McGaughey, J.; O'Neill, H.; Foston, M.; Myles, D.; Ragauskas, A.; Evans, B. Breakdown of Cell Wall Nanostucture in Dilute Acid Pretreated Biomass. Biomacromolecules. 2010, 11, 2329-2335.

DOI: 10.1021/bm100455h

[10] Shimokawa, T.; Ishida, M.; Yoshida, S.; Nojiri, M. Effects of growth stage on enzymatic saccharification and simultaneous saccharification and fermentation of bamboo shoots for bioethanol production.

DOI: 10.1016/j.biortech.2009.06.100

[11] Sun, Z-Y.; Tang, Y-Q.; Iwanaga, T.; Sho, T.; Kida, K. Production of fuel ethanol from bamboo by concentrated sulfuric acid hydrolysis followed by continuous ethanol fermentation. Bioresource technology. (2011).

DOI: 10.1016/j.biortech.2011.09.071

[12] Thirmal, C.; Dahman, Y. Comparisons of existing pretreatment, saccharification and fermentation processes for butanol production from agricultural residues. Canadian Journal of Chemical Engineering. 2011, 9999, 1-17.

DOI: 10.1002/cjce.20601

[13] Shih, C.; Smith, E. Determination of glucose and ethanol after enzymatic hydrolysis and fermentation of biomass using Raman spectroscopy. Analytica Chimica Acta. (2009).

DOI: 10.1016/j.aca.2009.09.012

[14] Colthup, N.; Daly, L.; Wiberley, S. Introduction to Infrared and Raman Spectroscopy. Academic Press: New York, (1964).

DOI: 10.1126/science.146.3649.1289

[15] Coughlan, M.P.; Ljungdahl, L.G. Comparative biochemistry of fungal and bacterial cellulolytic enzyme system. Biochemistry and Genetics of Cellulose Degradation; Aubert, J.; Benguin, P.; Millet, J. Ed. (1988).

[16] Huang, He, Hui Lui, and Yi-Ru Gan. Genetic Modification of Critical Enzymes and Involved Genes in Butanol Biosynthesis from Biomass., Biotechnology Advances 471. 1 (2010).

DOI: 10.1016/j.biotechadv.2010.05.015

[17] Lobovikov, M.; Paudel, S.; Piazza, M.; Ren, H.; Wu, J. World bamboo resources: A thematic study prepared in the framework of the Global Forest Resources Assessment 2005. Food and Agriculture Organization of the United Nations. (2007).

[18] Patakova, P.; Linhova, M.; Rychtera, M.; Paulova, L.; Melzoch, K. Novel and neglected issues of acetone-butanol-ethanol (ABE fermentation by Clostridia: Clostridum metabolic diversity, tools for process mapping and continuous fermentation systems. Biotechnology Advances. (2012).

DOI: 10.1016/j.biotechadv.2012.01.010

[19] Pingali, S.; Urban, V.; Heller, W.; McGaughey, J.; O'Neill, H.; Foston, M.; Myles, D.; Ragauskas, A.; Evans, B. Breakdown of Cell Wall Nanostucture in Dilute Acid Pretreated Biomass. Biomacromolecules. 2010, 11, 2329-2335.

DOI: 10.1021/bm100455h

[20] Zheng, Y.; Zhongli, P.; Zhang, R. Overview of biomass pre-treatment for cellulosic ethanol production. Int. J. Agricu. & Biol Eng. 2009, 2, 51-68.
