Shear Strength and Performance of Glass-to-Metal Brazed Joints

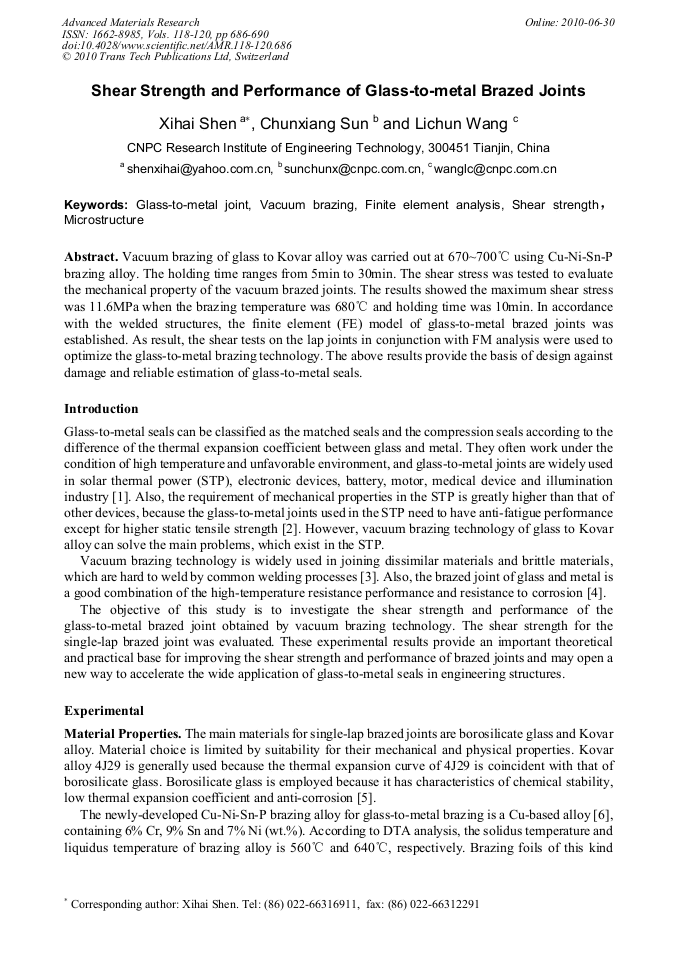

Article Preview

Vacuum brazing of glass to Kovar alloy was carried out at 670~700°C using Cu-Ni-Sn-P brazing alloy. The holding time ranges from 5min to 30min. The shear stress was tested to evaluate the mechanical property of the vacuum brazed joints. The results showed the maximum shear stress was 11.6MPa when the brazing temperature was 680°C and holding time was 10min. In accordance with the welded structures, the finite element (FE) model of glass-to-metal brazed joints was established. As result, the shear tests on the lap joints in conjunction with FM analysis were used to optimize the glass-to-metal brazing technology. The above results provide the basis of design against damage and reliable estimation of glass-to-metal seals.



Advanced Materials Research (Volumes 118-120)

Edited by:

L.Y. Xie, M.N. James, Y.X. Zhao and W.X. Qian






X. H. Shen et al., "Shear Strength and Performance of Glass-to-Metal Brazed Joints", Advanced Materials Research, Vols. 118-120, pp. 686-690, 2010

Online since:

June 2010




[1] HU Zhong wu, WANG Jing wei, YANG Qing hai: Chinese Journal of Power Sources Vol. 24 No. 4 (2000), p.251.

[2] ZHANG Yong ai, LIU Hao and YUAN Jian: Glass &Enamel Vol. 32 No. 6 (2004), p.34.

[3] Selcuk A, Atkinson A and Senerveratne D: Metal Abstrac Vol. 32 (1999), p.202.

[4] Armando Zanchetta, Pierre Lefort: Journal of the European Ceramic Society Vol. 15 (1995), p.233.

[5] X.H. Shen, X. Ling: Advanced Materials Research Vol. 44-46 (2008), p.765.

[6] B.W. Zhang, X.L. Shu, S.Y. Zhu, S.Z. Liao: Journal of Materials Processing Technology Vol. 9 (1999) p.90.

[7] Di XU, Xiang LING: Materials Science Forum Vol. 575-578 (2008), p.666.

[8] Y. Wang, J. C. Feng, L. X. Zhang, P. He and J. H. Zhang: Materials Science and Technology Vol. 23 No. 3 (2007), p.320.

[9] ABAQUS Analysis User's Manual. Version6. 5.
