Fatigue Life Prediction of Spring Buffer in GCD-1500 Cable Drill

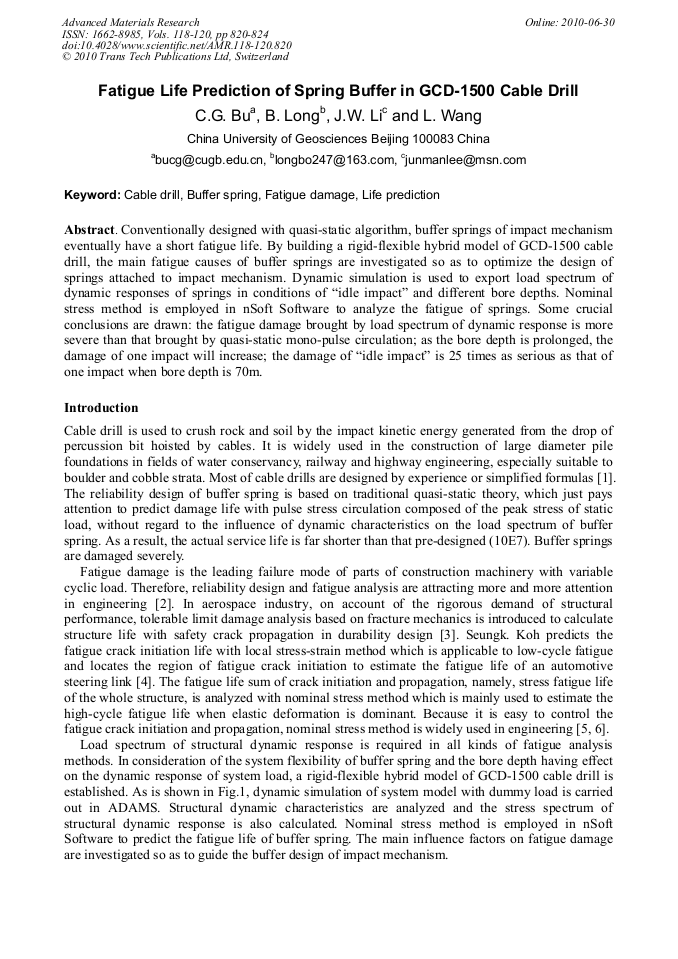

Article Preview

Abstract:

Conventionally designed with quasi-static algorithm, buffer springs of impact mechanism eventually have a short fatigue life. By building a rigid-flexible hybrid model of GCD-1500 cable drill, the main fatigue causes of buffer springs are investigated so as to optimize the design of springs attached to impact mechanism. Dynamic simulation is used to export load spectrum of dynamic responses of springs in conditions of “idle impact” and different bore depths. Nominal stress method is employed in nSoft Software to analyze the fatigue of springs. Some crucial conclusions are drawn: the fatigue damage brought by load spectrum of dynamic response is more severe than that brought by quasi-static mono-pulse circulation; as the bore depth is prolonged, the damage of one impact will increase; the damage of “idle impact” is 25 times as serious as that of one impact when bore depth is 70m.

You might also be interested in these eBooks
Materials and Product Technologies II View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 118-120)

Pages:

820-824

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.118-120.820

Citation:

Cite this paper

Online since:

June 2010

Authors:

Chang Gen Bu, Bo Long, J.W. Li, L. Wang

Keywords:

Buffer Spring, Cable Drill, Fatigue Damage, Life Prediction

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2010 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] H. M. Yang: Drilling Equipment (Geological Pubishing House, Beijing 1988).

Google Scholar

[2] J. Schijive: Int. J. Fatigue Vol. 25 (2003), p.679.

Google Scholar

[3] W. Zhuang, S. Barter, L. Molent: Int. J. Fatigue Vol. 29 (9-11) (2007), p.1647.

Google Scholar

[4] Seungk. Koh: Engineering Failure Analysis Vol. 16 (3) (2009), p.914.

Google Scholar

[5] B.R. Miu, W. H. Zhang, S. N. Xiao, D. C. Jin and J. Q . He: Journal of The China Railway Society Vol. 29 (4)(2007), p.38.

Google Scholar

[6] F. Lin, Y.X. Zhao: Advanced Materials Research Vol. 44-46(2008), p.935.

Google Scholar

[7] J.W. Li: The Modal Identification of the Hybrid System of GCD-1500 Percussive Drilling [D] (China University of Geosciences Beijing, China 2009).

Google Scholar

[8] H.Q. Ying: Waveform and spectrum analysis and data processing (China Railway Publishing House, Beijing 1983).

Google Scholar

[9] A. Fatemi, L. Yang: Int. J. Fatigue Vol. 20 (1) (1998), p.9.
