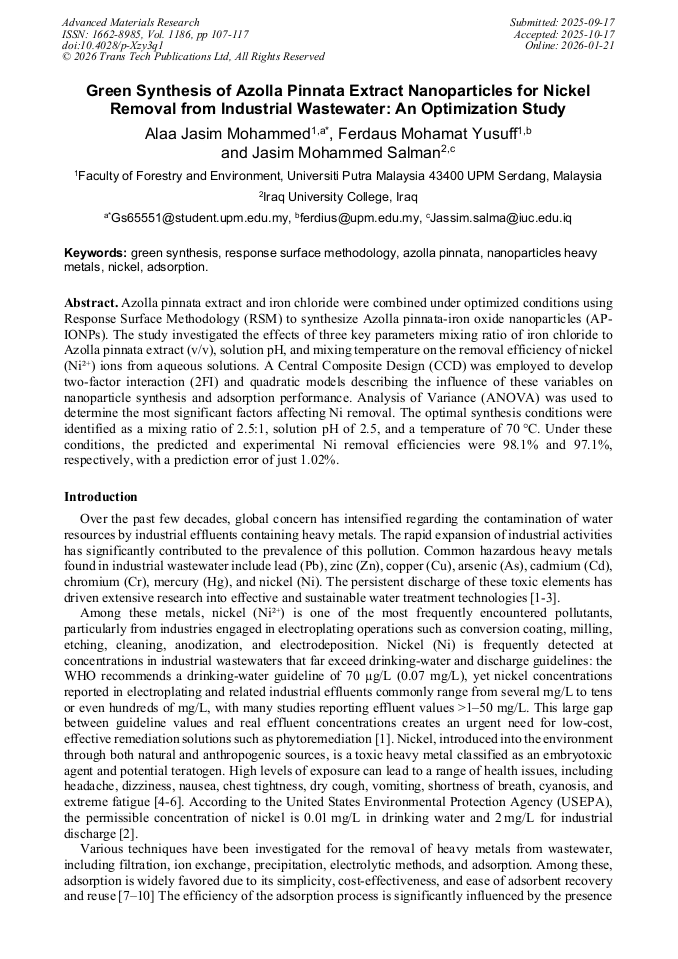

Green Synthesis of Azolla Pinnata Extract Nanoparticles for Nickel Removal from Industrial Wastewater: An Optimization Study

Abstract:

Azolla pinnata extract and iron chloride were combined under optimized conditions using Response Surface Methodology (RSM) to synthesize Azolla pinnata-iron oxide nanoparticles (AP-IONPs). The study investigated the effects of three key parameters mixing ratio of iron chloride to Azolla pinnata extract (v/v), solution pH, and mixing temperature on the removal efficiency of nickel (Ni²⁺) ions from aqueous solutions. A Central Composite Design (CCD) was employed to develop two-factor interaction (2FI) and quadratic models describing the influence of these variables on nanoparticle synthesis and adsorption performance. Analysis of Variance (ANOVA) was used to determine the most significant factors affecting Ni removal. The optimal synthesis conditions were identified as a mixing ratio of 2.5:1, solution pH of 2.5, and a temperature of 70 °C. Under these conditions, the predicted and experimental Ni removal efficiencies were 98.1% and 97.1%, respectively, with a prediction error of just 1.02%. Keywords: Green synthesis; Response surface methodology; Azolla pinnata; Nanoparticles Heavy metals; Nickel; Adsorption.

• Periodical: Advanced Materials Research (Volume 1186)
• Pages: 107-117
• DOI: https://doi.org/10.4028/p-Xzy3q1
• Online since: January 2026
• Authors: Alaa Jasim Mohammed, Ferdius Mohamat Yusuff, Jassim Mohammed Salman*
• Keywords: Adsorption, Azolla Pinnata, Green Synthesis, Nanoparticles Heavy Metals, Nickel, Response Surface Methodology

References

[1] J. Parades-Aguilar, V. Reyes-Martínez, G. Bustamante, F. J. Almendáriz-Tapia, G. Martínez-Meza, R. Vílchez-Vargas, & K. Calderón (2021). Removal of nickel (II) from wastewater using a zeolite-packed anaerobic bioreactor: Bacterial diversity and community structure shifts. Journal of Environmental Management, 279, 111558.

DOI: 10.1016/j.jenvman.2020.111558

[2] D. Schrenk, M. Bignami, L. Bodin, J. K. Chipman, J. Del Mazo, & E. Nielsen (2020). Update of the risk assessment of nickel in food and drinking water. Efsa Journal, 18(11).

DOI: 10.2903/j.efsa.2020.6268

[3] T. E. Oladimeji, M. Oyedemi, M. E. Emetere, O. Agboola, J. B. Adeoye & O. A. Odunlami, (2024). Review on the impact of heavy metals from industrial wastewater effluent and removal technologies. Heliyon, 10 (23).

DOI: 10.1016/j.heliyon.2024.e40370

[4] G. Genchi, A. Carocci, G. Lauria, M. S. Sinicropi & A. Catalano (2020). Nickel: Human health and environmental toxicology. International journal of environmental research and public health, 17 (3), 679.‏

DOI: 10.3390/ijerph17030679

[5] W. Begum, S. Rai, S. Banerjee, S. Bhattacharjee, M. H. Mondal, A. Bhattarai, B. Saha, (2022). A comprehensive review on the sources, essentiality and toxicological profile of nickel. RSC advances, 12 (15), 9139-9153.‏

DOI: 10.1039/d2ra00378c

[6] S. Buxton, E. Garman, K. E. Heim, T. Lyons-Darden, C. E. Schlekat, M. D. Taylor & A. R. Oller (2019). Concise review of nickel human health toxicology and ecotoxicology. Inorganics, 7 (7), 89.‏

DOI: 10.3390/inorganics7070089

[7] Y. Fei & Y. H. Hu, (2023). Recent progress in removal of heavy metals from wastewater: A comprehensive review. Chemosphere, 335, 139077.‏

DOI: 10.1016/j.chemosphere.2023.139077

[8] S. K. Gunatilake, (2015). Methods of removing heavy metals from industrial wastewater. Methods, 1(1), 14.

[9] Y. Fei & Y. H. Hu, (2023). Recent progress in removal of heavy metals from wastewater: A comprehensive review. Chemosphere, 335, 139077.‏

DOI: 10.1016/j.chemosphere.2023.139077

[10] S. I. Shofia, A. S. Vickram, A. Saravanan, V.C. Deivayanai & P. R. Yaashikaa, (2025). Sustainable separation technologies for heavy metal removal from wastewater: An upgraded review of physicochemical methods and its advancements. Sustainable Chemistry for the Environment.

DOI: 10.1016/j.scenv.2025.100264

[11] H. Hazrati, A.H. Moghaddam, M. Rostamizadeh, (2017). The influence of hydraulic retention time on cake layer specifications in the membrane bioreactor: Experimental and artificial neural network modeling, J. Environ. Chem. Eng. 5 3005–3013.

DOI: 10.1016/j.jece.2017.05.050

[12] J.M. Salman, A.J. Mohammed, Optimization Study on the Removal of Cadmium Ion onto Biomass Nanoparticles using Response Surface Methodology, (2023) 431–437.

[13] M. H. Mahmoudian, A. Azari, A. Jahantigh, M. Sarkhosh, M. Yousefi, |S. A. Razavinasab & M. Ghasemian, (2023). Statistical modeling and optimization of dexamethasone adsorption from aqueous solution by Fe3O4@ NH2-MIL88B nanorods: Isotherm, kinetics, and thermodynamic. Environmental Research, 236, 116773.

DOI: 10.1016/j.envres.2023.116773

[14] M. A. Gharaghani, M. Samaei, H. Mahdizadeh, A. Nasiri, M. Keshtkar, A. Mohammadpour & A. M. Khaneghah, (2024). An effective magnetic nanobiocomposite: Preparation, characterization and its application for adsorption removal of P-nitroaniline from aquatic environments. Environmental Research, 246, 118128.

DOI: 10.1016/j.envres.2024.118128

[15] G. Korsa, D. Alemu & A. Ayele, (2024). Azolla plant production and their potential applications. International Journal of Agronomy, 2024(1), 1716440.

DOI: 10.1155/2024/1716440

[16] Rashad, S. (2021). An overview on the aquatic fern Azolla spp. as a sustainable source of nutrients and bioactive compounds with resourceful applications. Egyptian Journal of Aquatic Biology and Fisheries, 25(1), 775-782.‏

DOI: 10.21608/ejabf.2021.150205

[17] W. Xu, T. Yang, S. Liu, L. Du, Q. Chen, X. Li & X. Tan, (2022). Insights into the Synthesis, types and application of iron Nanoparticles: The overlooked significance of environmental effects. Environment International, 158, 106980.‏

DOI: 10.1016/j.envint.2021.106980

[18] J.M. Salman, A.J. Mohammed, (2023) Optimization Study on the Removal of Cadmium Ion onto Biomass Nanoparticles using Response Surface Methodology, 431–437.

[19] P. Kumar, V. Sharma, J.P. Singh, A. Kumar, S. Chahal, K. Sachdev, K.H. Chae, A. Kumar, K. Asokan, D. Kanjilal, (2019). Investigations on magnetic and electrical properties of Zn doped Fe2O3 nanoparticles and their correlation with local electronic structures, J. Magn. Magn. Mater. 489 165398.

DOI: 10.1016/j.jmmm.2019.165398

[20] A. J. Mohammed, M. H. Ibrahim, S. Z. Zulkifli & J. M. Salman, (2021). Synthesis and Characterization of a Nano-Adsorbent Derivative Derived from Grape Seeds for Cadmium Ion Removal in an Aqueous Solution. Water, 13(20), 2896.

DOI: 10.3390/w13202896

[21] J. M. Salman, (2013). Preparation of Mesoporous‐Activated Carbon from Branches of Pomegranate Trees: Optimization on Removal of Methylene Blue Using Response Surface Methodology. Journal of Chemistry, 2013(1), 489670.

DOI: 10.1155/2013/489670

[22] J. M. Salman & B. H. Hameed, (2010). Effect of preparation conditions of oil palm fronds activated carbon on adsorption of bentazon from aqueous solutions. Journal of hazardous materials, 175(1-3), 133-137.

DOI: 10.1016/j.jhazmat.2009.09.139

[23] B. D. Yirsaw, M. Megharaj, Z. Chen & R. Naidu, (2016). Reduction of hexavalent chromium by green synthesized nano zero valent iron and process optimization using response surface methodology. Environmental Technology & Innovation, 5, 136-147.

DOI: 10.1016/j.eti.2016.01.005

[24] M. Savasari, M. Emadi, M. A. Bahmanyar & P. Biparva, (2015). Optimization of Cd (II) removal from aqueous solution by ascorbic acid-stabilized zero valent iron nanoparticles using response surface methodology. Journal of Industrial and Engineering Chemistry, 21, 1403-1409.

DOI: 10.1016/j.jiec.2014.06.014

[25] K. Bouattou, A. Ali-Nehari & W. Djamai, (2024). Assessment of the biological activities of Azolla pinnata growing in the North-West of Algeria. Bionatura Journal, 1(3).

DOI: 10.70099/bj/2024.01.03.14

[26] A. K. Meena, G. K. Mishra, S. Kumar, C. Rajagopal & P. N. Nagar, (2003). Adsorption of Ni (II) and Zn (II) from aqueous solution by chemically treated activated carbon. In National conference on carbon (Indo-carbon) Kanpoor (pp.131-141).

[27] J. M. Salman, V. O. Njoku & B. H. Hameed, (2011). Batch and fixed-bed adsorption of 2, 4-dichlorophenoxyacetic acid onto oil palm frond activated carbon. Chemical Engineering Journal, 174(1), 33-40.

DOI: 10.1016/j.cej.2011.08.024

[28] U. K. Garg, M. P. Kaur, V. K. Garg & D. Sud, (2008). Removal of nickel (II) from aqueous solution by adsorption on agricultural waste biomass using a response surface methodological approach. Bioresource technology, 99(5), 1325-1331.

DOI: 10.1016/j.biortech.2007.02.011

[29] U. K. Garg, M.P. Kaur, V.K. Garg, D. Sud, Removal of Nickel (II) from aqueous solution by adsorption on agricultural waste biomass using a response surface methodological approach. Bioresource Technology, Vol. 99, Iss. 5, 2006, pp.1325-1331.

DOI: 10.1016/j.biortech.2007.02.011

[30] M. Kamel, A. M. Bastaweesy & R. A. Hefny, (2025). Optimized Removal of Cr (VI) and Ni (II) From Wastewater Using Corncob-Derived Activated Carbon. Water, Air, & Soil Pollution, 236 (2), 1-22.

DOI: 10.1007/s11270-024-07711-3

[31] N. Rahmati, M. Rahimnejad, Pourali & S. K. Muallah, (2021). Effective removal of nickel ions from aqueous solution using multi-wall carbon nanotube functionalized by glycerol-based deep eutectic solvent. Colloid and Interface Science Communications, 40, 100347.

DOI: 10.1016/j.colcom.2020.100347

[32] A. C. Boukis, C., Galvita, V. V., Poelman, H., & Marin, G. B. (2021). Synthesis of ZnO–CoO/Al₂O₃ nanoparticles and its application as a catalyst in ethanol conversion to acetone. Results in Chemistry, 3, 100249.

DOI: 10.1016/j.rechem.2021.100249

[33] A. Ganguly, S. Pradhan & S. Sain, (2023). Methane activation on metal oxide nanoparticles: spectroscopic identification of reaction mechanism. Particulate Science and Technology, 41(5), 653–660.

DOI: 10.1080/02726351.2022.2129533

[34] S. Sahoo, A. Pradhan & P. Mohanty, (2023). Spectroscopic investigation of carbon dioxide interactions with transition metal-oxide nanoparticles. Chemical Engineering & Technology, 46(3), 587–594.

[35] S. Farhadi, H. Zaheri & H. Maleki, (2022). Employing synthesized MgO–SiO₂ nanoparticles as catalysts in ethanol conversion to 1,3-butadiene. International Journal of Nanoscience and Nanotechnology, 18(3), 157–166.

[36] M. Ali, A. Khan & S. Rehman, (2025). The impact of adding nanoparticles to biodiesel fuel prepared from waste sunflower oil on the performance and emission of diesel engines. Circular Economy, 4(2), 100138.

DOI: 10.1016/j.cec.2025.100138

[37] M. Hossain, A. Rahman & M. Karim, (2024). The influence of eggshell nanoparticles as a partial replacement of cement in concrete. Innovative Infrastructure Solutions, 9 (12), 1–11.
