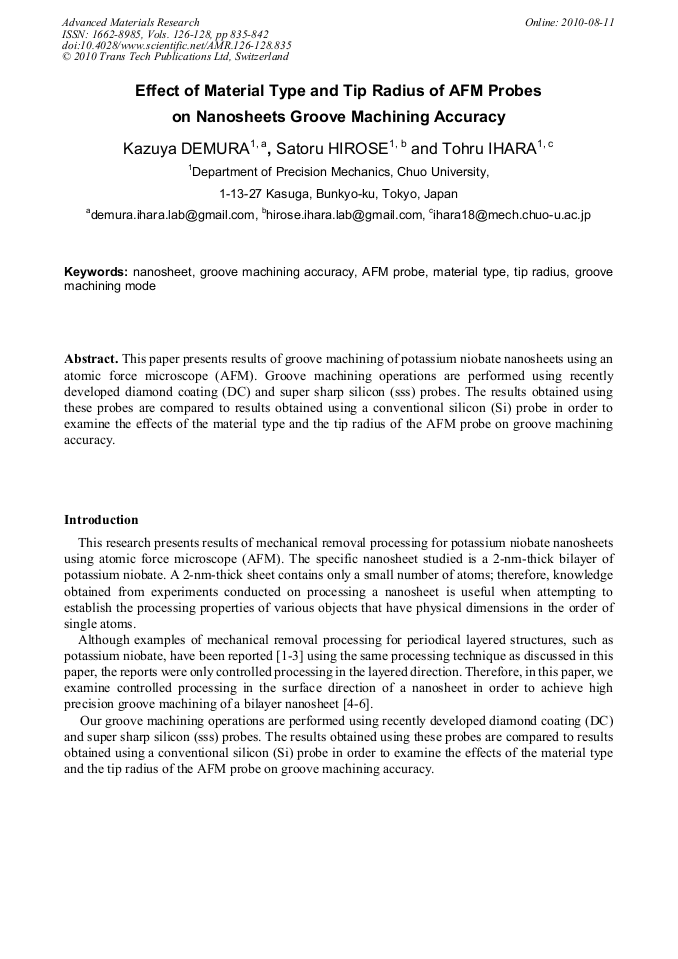

Effect of Material Type and Tip Radius of AFM Probes on Nanosheets Groove Machining Accuracy

Abstract:

This paper presents results of groove machining of potassium niobate nanosheets using an atomic force microscope (AFM). Groove machining operations are performed using recently developed diamond coating (DC) and super sharp silicon (sss) probes. The results obtained using these probes are compared to results obtained using a conventional silicon (Si) probe in order to examine the effects of the material type and the tip radius of the AFM probe on groove machining accuracy.

• Periodical: Advanced Materials Research (Volumes 126-128)
• Pages: 835-842
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.126-128.835
• Online since: August 2010
• Authors: Kazuya Demura, Satoru Hirose, Tohru Ihara
• Keywords: AFM Probe, Groove Machining Accuracy, Groove Machining Mode, Material Type, Nanosheet, Tip Radius

References

[1] Miyake, S., Ishii, M., Otake, T. and Tsushima, N., Nanometer-scale Mechanical Processing of Muscovite Mica by Atomic Force Microscope, Journal of the Japan Society of Precision Engineering, Vol. 63, No. 3, (1997), pp.426-430 (in Japanese).

DOI: 10.2493/jjspe.63.426

[2] Miyake, S., Otake, T. and Asano, M., Mechanical Processing Mica Using an Atomic Force Microscope, Journal of the Japan Society of Precision Engineering, Vol. 65, No. 4, (1999), pp.570-574 (in Japanese).

DOI: 10.2493/jjspe.65.570

[3] Miyake, S., Sekine, Y., Kim, J., Yamamoto, H., Development of Nanofabrication Technique Based on Wear Properties of Nanoperiod Multilayerd Films, Journal of the Japan Society of Precision Engineering, Vol. 66, No. 12, (2000).

[4] Sakai, T., Demura, K., Shindo, H., Ihara, T., Nanoscopic Mechanical Removal Processing of Nano-sheet by AFM Probe − High Precision in fine removal processing −, Journal of the Japan Society of Precision Engineering, Vol. 73, No. 7, (2007).

DOI: 10.2493/jjspe.73.798

[5] Sakai, T., Kawakami, Y., Demura, K., Ihara, T., Nanoscopic Mechanical Removal Processing of Nano-sheet by AFM Probe (2nd Report) − High Precision Groove Processing Mechanism and Examination to Optimal Processing Condition −, Journal of the Japan Society of Precision Engineering, Vol. 74, No. 6, (2008).

DOI: 10.2493/jjspe.74.611

[6] Demura, K., Kawakami, Y., Ihara, T., Nanoscopic Mechanical Removal Processing of Nano-sheet by AFM Probe (3nd Report) − Formula Based on Energy Dispersion for the Optimal Scanning Speed in the Groove Machining Process −, Journal of the Japan Society of Precision Engineering, Vol. 75, No. 3, (2009).

DOI: 10.2493/jjspe.75.385

[7] Y. Ando, Relation between friction and plastic deformation examined by using periodic asperity arrays fabricated on an AFM multipurpose cantilever, Tribol. Lett., 15(2000), pp.115-125.

[8] K. Kato and K. Hokkirigawa, Tribology Inter., 21-1(1988) 51.
