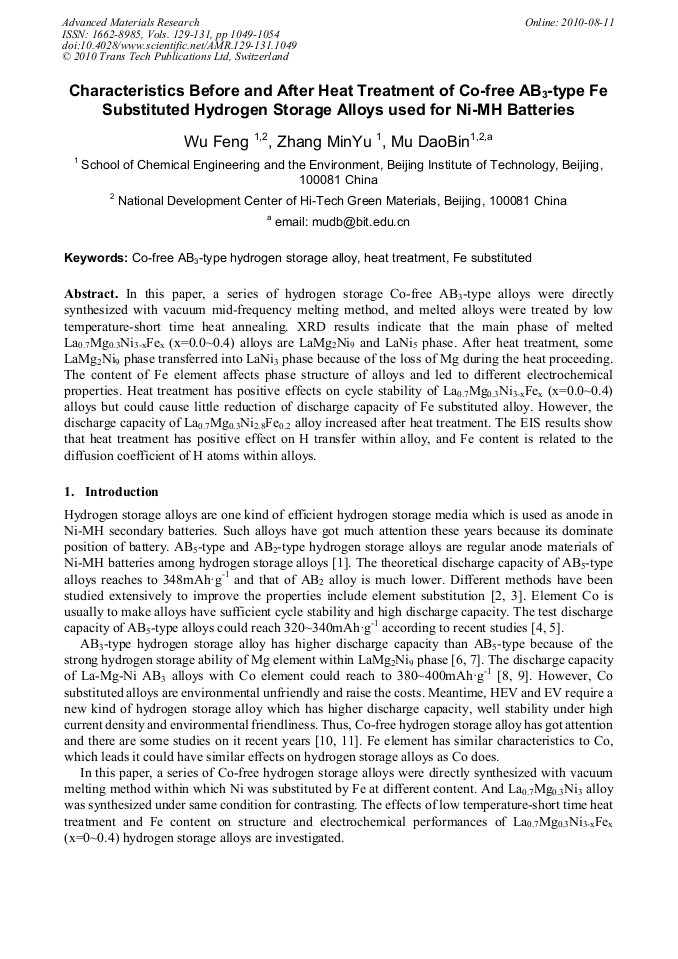

Characteristics Before and After Heat Treatment of Co-Free AB₃-Type Fe Substituted Hydrogen Storage Alloys Used for Ni-MH Batteries

Abstract:

In this paper, a series of hydrogen storage Co-free AB3-type alloys were directly synthesized with vacuum mid-frequency melting method, and melted alloys were treated by low temperature-short time heat annealing. XRD results indicate that the main phase of melted La0.7Mg0.3Ni3-xFex (x=0.0~0.4) alloys are LaMg2Ni9 and LaNi5 phase. After heat treatment, some LaMg2Ni9 phase transferred into LaNi3 phase because of the loss of Mg during the heat proceeding. The content of Fe element affects phase structure of alloys and led to different electrochemical properties. Heat treatment has positive effects on cycle stability of La0.7Mg0.3Ni3-xFex (x=0.0~0.4) alloys but could cause little reduction of discharge capacity of Fe substituted alloy. However, the discharge capacity of La0.7Mg0.3Ni2.8Fe0.2 alloy increased after heat treatment. The EIS results show that heat treatment has positive effect on H transfer within alloy, and Fe content is related to the diffusion coefficient of H atoms within alloys.

• Periodical: Advanced Materials Research (Volumes 129-131)
• Pages: 1049-1054
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.129-131.1049
• Online since: August 2010
• Authors: Feng Wu, Min Yu Zhang, Dao Bin Mu
• Keywords: Co-Free AB₃-Type Hydrogen Storage Alloy, Fe-Substituted, Heat Treatment

References

[1] J.J.G. Willems, K.H.J. Buschow, From permanent magnets to rechargeable hydride electrodes, J. Journal of the Less Common Metals 1987; 129; 13-30.

DOI: 10.1016/0022-5088(87)90029-4

[2] Reilly JJ, Adzic GD, Johnson JR, Vogt T, Mukerjee S, McBreen J, The correlation between composition and electrochemical properties of metal hydride electrodes J. Alloys Compd 569(82) (1999) 293-295.

DOI: 10.1016/s0925-8388(99)00413-2

[3] Mani N, Ramaprabhu S, Effect of substitutional elements on hydrogen absorption properties in Mm-based AB5 alloys, J. Alloys and Comps, 2004, 363(1-2): 275-291.

DOI: 10.1016/s0925-8388(03)00487-0

[4] L.F. Cheng , Y.X. Wang, R.B. Wang, Z.H. Pu, X.G. Zhang, D.N. He, Microstructure and electrochemical investigations of La0. 76−xCexMg0. 24Ni3. 15Co0. 245Al0. 105 (x = 0, 0. 05, 0. 1, 0. 2, 0. 3, 0. 4) hydrogen storage alloys, J. Hydrogen Energy 2009; 34(19): 8073-8078.

DOI: 10.1016/j.ijhydene.2009.07.096

2 4 6.

[1] [2] [3] 0 2 4 6.

[1] [2] [3] -Z'/ohm Z'/ohm x=0. 1 x=0. 0 x=0. 3 Z, /ohm x=0. 2 (a).

1 2 3 4 5 6 7 8 9 10.

[1] [2] [3] [4] [5] 0 1 2 3 4 5 6 7 8 9 10.

[1] [2] [3] [4] [5] 0 1 2 3 4 5 6 7 8 9 10.

[1] [2] [3] [4] [5] -Z'/ohm z, /ohm x=0. 1 x=0. 2 x=0. 3 x=0. 0 (b) Figure 4 The Nyquist patterns of melted (a) and heated (b) La0. 55Mg0. 45Ni(3-x)Fex(x=0~0. 4) alloys Table 2 the diffusion coefficient of heated La0. 55Mg0. 45Ni(3-x)Fex(x=0~0. 4) alloys at 523K for 5 hours Alloy X=0. 0 X=0. 1 X=0. 2 X=0. 3 σ 0. 572992 0. 983838 1. 100383 0. 44450 DH 2. 997×10-9 1. 016×10-9 2. 533×10-10 3. 992×10-9.

[5] R. Vijaya, R. Sundaresana, M.P. Maiyab, S. Srinivasa Murthy, Application of Mg-x wt% MmNi5 (x=10~70) nanostructured composites in a hydrogen storage device. J. Hydrogen Energy 2007; 32(13): 2390-2399.

DOI: 10.1016/j.ijhydene.2006.11.011

[6] X.B. Zhang, D.Z. Sun, W.Y. Yin, Y.J. Chai, M.S. Zhao, Effect of La/Ce ratio on the structure and electrochemical characteristics of La0. 7−xCexMg0. 3Ni2. 8Co0. 5 (x = 0. 1-0. 5) hydrogen storage alloys, J. Electrochimica Acta 2005; 50: 1957-(1964).

DOI: 10.1016/j.electacta.2004.09.016

[7] K. Kadir, T. Sakai, I. Uehara, Synthesis and structure determination of a new series of hydrogen storage alloys; RMg2Ni9 (R=La, Ce, Pr, Nd, Sm and Gd) built from MgNi2 Laves-type alternating with AB5 layers, J. Alloys and Compd. (1997).

DOI: 10.1016/s0925-8388(96)03132-5

[8] Yang-Huan ZHANG, Bao-Wei Li, Hui-Ping Ren, Zhong-Wang Wu, Xiao-Ping Dong and Xin-Lin Wang, Influences of the substitution of Fe for Ni on structures and electrochemical performances of the as-cast and quenched La0. 7Mg0. 3Co0. 45Ni2. 55−xFex (x = 0-0. 4) electrode alloys, J. Alloys Compd 2008; 460(1-2): 414-420.

DOI: 10.1016/j.jallcom.2007.05.056

[9] B. Liao, Y. Q. Lei , L. X. Chen, G. L. Lu, H. G. Pan, Q. D. Wang, A study on the structure and electrochemical properties of La2Mg(Ni0. 95M0. 05)9 (M = Co, Mn, Fe, Al, Cu, Sn) hydrogen storage electrode alloys, J. Alloys and Compd 2004; 376(1-2): 186-195.

DOI: 10.1016/j.jallcom.2003.12.011

[10] Xuedong Wei, Peng Zhang, Hui Dong, Yongning Liu, Jiewu Zhu, Guang Yu, Electrochemical performances of a Co-free La(NiMnAlFe)5 hydrogen storage alloy modified by surface coating with Cu, J. Alloys Compd 2008; 458(1-2): 583-587.

DOI: 10.1016/j.jallcom.2007.04.211

[11] Xuedong Wei, Sheshe Liu, Hui Dong, Peng Zhang, Yongning Liu, Jiewu Zhu, Guang Yu, Microstructures and electrochemical properties of Co-free AB5-type hydrogen storage alloys through substitution of Ni by Fe, J. Electrochimica Acta, 2007; 52(7): 2423-2428.

DOI: 10.1016/j.electacta.2006.08.067
