Surface Treatment of 45 Steels by Plasma Beam Alloying and Plasma Surface Quenching

Kai Yuan Shi; Shu Bing Hu; Wen Xu; Qi Wen Huang

doi:10.4028/www.scientific.net/AMR.129-131.1109

Paper Titles

Shock-Induced the Ignition Mechanism of Micrometer Aluminum/Propylene Oxide
p.1088

Dynamic Analysis for Rotary Detecting Table of ICTY
p.1093

Simulation Technologies for Tamper System of Asphalt-Paver Based on AMESim
p.1098

Influence Research of Velocity on Lubricating Properties of Sector Cavity Multi-Pad Hydrostatic Thrust Bearing
p.1104

Surface Treatment of 45 Steels by Plasma Beam Alloying and Plasma Surface Quenching
p.1109

Effects of Microstructural Evolution and Mechanical Properties on 440C-TiC Composite Steel by HIP Treatment
p.1114

Research on Velocity Field and Dynamic Pressure Effect of Oil Film of Hydrostatic Center Rack
p.1119

The Helical Gear with Equal Conjugate Curvature
p.1124

Physical Modeling of Cylinder Upsetting with Plasticine for Validation of FEM
p.1129

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 129-131Surface Treatment of 45 Steels by Plasma Beam...

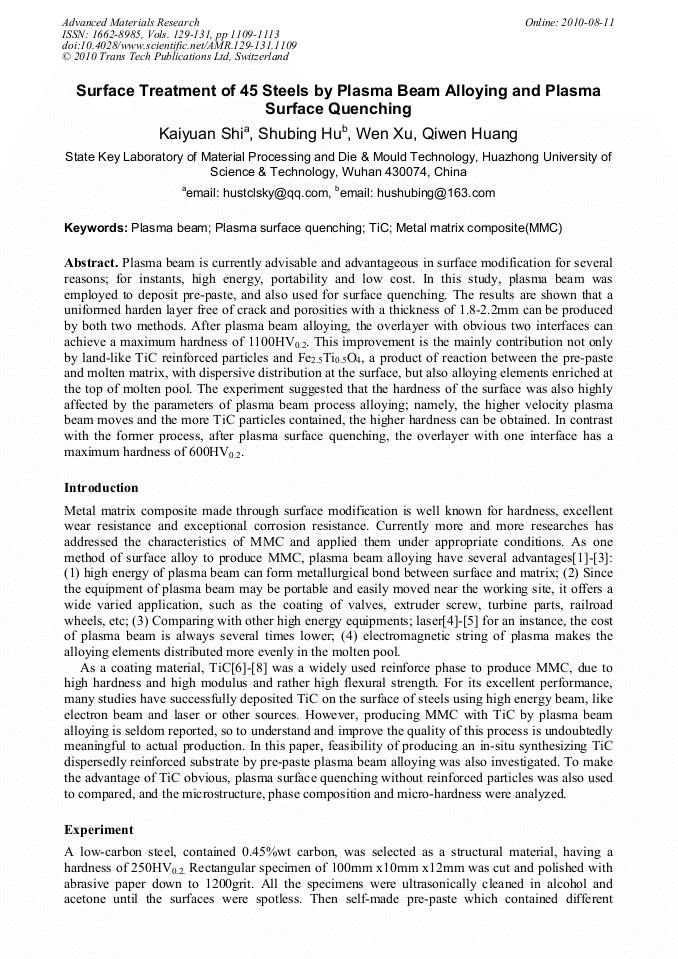

Surface Treatment of 45 Steels by Plasma Beam Alloying and Plasma Surface Quenching

Abstract:

Plasma beam is currently advisable and advantageous in surface modification for several reasons; for instants, high energy, portability and low cost. In this study, plasma beam was employed to deposit pre-paste, and also used for surface quenching. The results are shown that a uniformed harden layer free of crack and porosities with a thickness of 1.8-2.2mm can be produced by both two methods. After plasma beam alloying, the overlayer with obvious two interfaces can achieve a maximum hardness of 1100HV0.2. This improvement is the mainly contribution not only by land-like TiC reinforced particles and Fe2.5Ti0.5O4, a product of reaction between the pre-paste and molten matrix, with dispersive distribution at the surface, but also alloying elements enriched at the top of molten pool. The experiment suggested that the hardness of the surface was also highly affected by the parameters of plasma beam process alloying; namely, the higher velocity plasma beam moves and the more TiC particles contained, the higher hardness can be obtained. In contrast with the former process, after plasma surface quenching, the overlayer with one interface has a maximum hardness of 600HV0.2.
