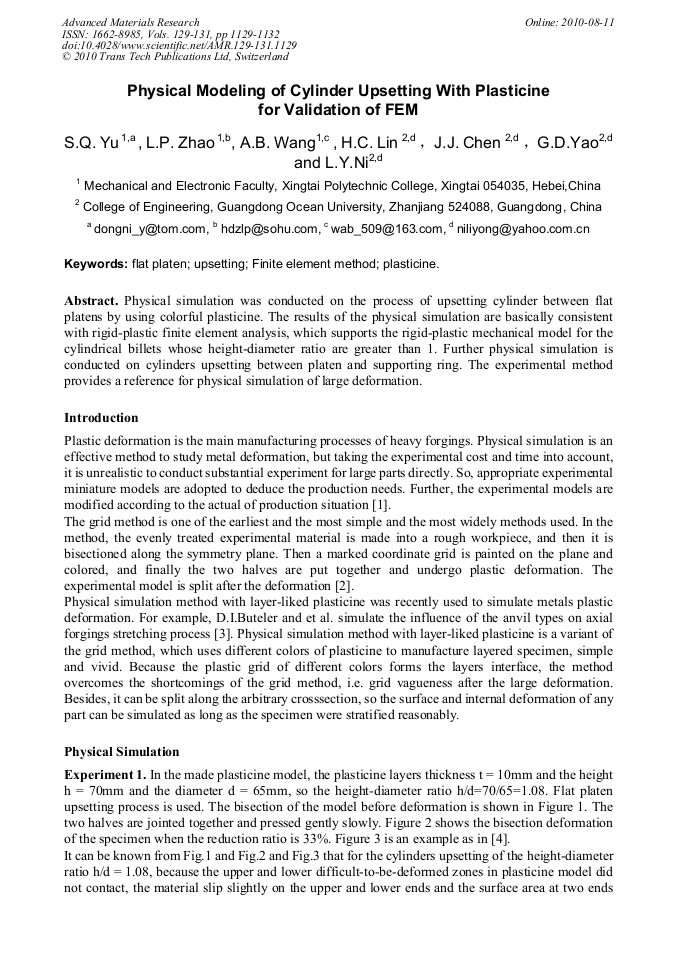

Physical Modeling of Cylinder Upsetting with Plasticine for Validation of FEM

Abstract:

Physical simulation was conducted on the process of upsetting cylinder between flat platens by using colorful plasticine. The results of the physical simulation are basically consistent with rigid-plastic finite element analysis, which supports the rigid-plastic mechanical model for the cylindrical billets whose height-diameter ratio are greater than 1. Further physical simulation is conducted on cylinders upsetting between platen and supporting ring. The experimental method provides a reference for physical simulation of large deformation.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 129-131)

Pages:

1129-1132

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.129-131.1129

Citation:

Cite this paper

Online since:

August 2010

Authors:

Suo Qing Yu, L.P. Zhao, A.B. Wang, H.C. Lin, J.J. Chen, G.D. Yao, Li Yong Ni

Keywords:

Finite Element Model (FEM), Flat Platen, Plasticine, Upsetting
