Comparison with Thermo Hydrodynamic Lubrication between 2D and 3D Model in Thrust Bearing by Computing Simulation

Abstract:

As the interface problem of discontinuity boundary condition between the oil film and the pad in thrust bearing, a conjugated solution method by using the temperature continuity and the heat flux continue is proposed. The three-dimensional calculated model of thrust bearing is constructed and solved by using finite difference method. Comparing with 2D model, the characteristics of the lubrication performance of 3D model are more different. The results show that the three-dimensional calculated model not only revealed the relation of temperature variation between the oil film layer and the pad in axial direction, but also exactly reflected real temperature distribution in the pad surface. In the same oil feed temperature condition, the minimum film thickness is 63.8μm and the maximum temperature on the pad surface reached 55°C for 3D mode, 72.6μm and 60°C for 2D mode.

You might also be interested in these eBooks

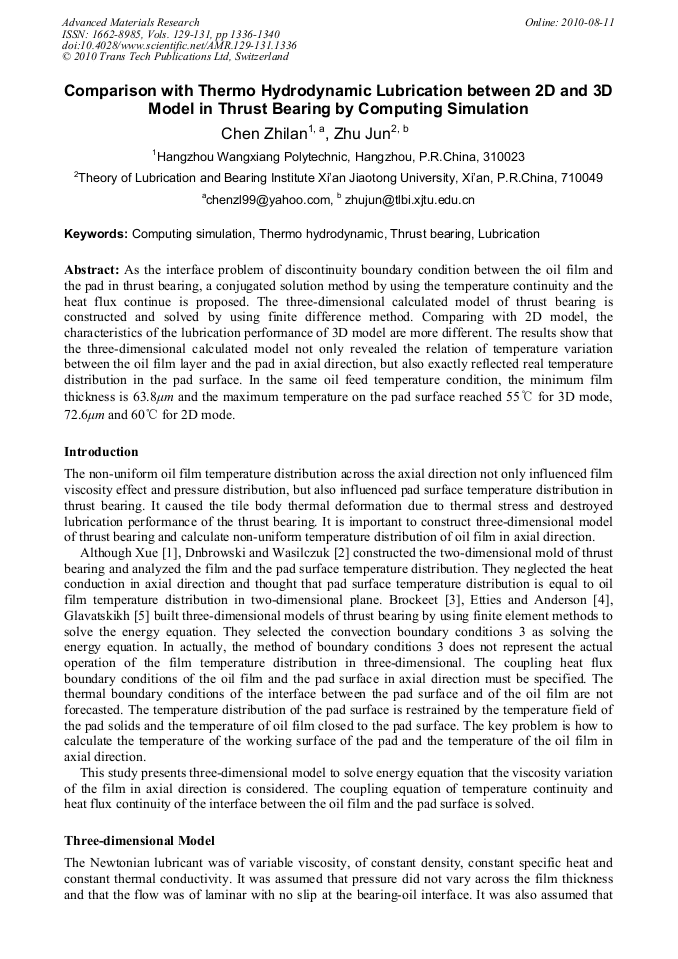

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 129-131)

Pages:

1336-1340

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.129-131.1336

Citation:

Cite this paper

Online since:

August 2010

Authors:

Zhi Lan Chen, Jun Zhu

Keywords:

Computing Simulation, Lubrication, Thermo Hydrodynamic, Thrust Bearing

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Xue Yongkuan: Study on Generalized Thermal Elastohydrodynamic Lubrication in Thrust Bearings of Hydro-Generator, Ph.D. Thesis, 1990, Xi'an Jiaotong University.

Google Scholar

[2] Dnbrowski L., and Wasilczuk M.: On the Accuracy of Theoretical Models of Hydrodynamic Thrust Bearings, in Proc. Of the Int. Conf. Balkantrib, Greece, June 1996, pp.619-626.

Google Scholar

[3] Brockeet T. S., Barrett L. B., and Allaire P. E.: Thermoelastic Analysis of Fixed Geometry Thrust Bearings Including Runner Deformayion, Trib. Trans., Vol. 39(1996), pp.555-562.

DOI: 10.1080/10402009608983566

Google Scholar

[4] Etties C. M., and Anderson H. G.: Three-Dimensional Thermoelastic Solutions of Thrust Bearings Using Code Marmac 1, ASME Jour. of Trib., Vol. 113(1991), pp.405-412.

DOI: 10.1115/1.2920636

Google Scholar

[5] Glavatskikh, S. B.: Steady-State Performance Characteristics of a Tilting Pad Thrust Bearing, ASME Jour. of Trib., Vol. 123(2001), pp.608-615.

DOI: 10.1115/1.1308041

Google Scholar
