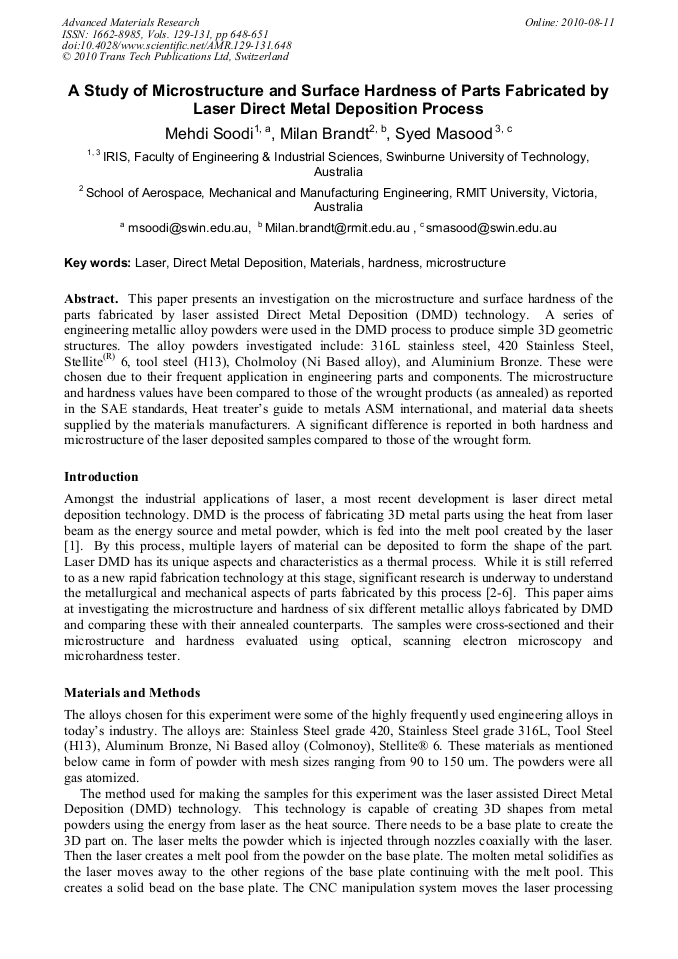

A Study of Microstructure and Surface Hardness of Parts Fabricated by Laser Direct Metal Deposition Process

Abstract:

This paper presents an investigation on the microstructure and surface hardness of the parts fabricated by laser assisted Direct Metal Deposition (DMD) technology. A series of engineering metallic alloy powders were used in the DMD process to produce simple 3D geometric structures. The alloy powders investigated include: 316L stainless steel, 420 Stainless Steel, Stellite(R) 6, tool steel (H13), Cholmoloy (Ni Based alloy), and Aluminium Bronze. These were chosen due to their frequent application in engineering parts and components. The microstructure and hardness values have been compared to those of the wrought products (as annealed) as reported in the SAE standards, Heat treater’s guide to metals ASM international, and material data sheets supplied by the materials manufacturers. A significant difference is reported in both hardness and microstructure of the laser deposited samples compared to those of the wrought form.

• Periodical: Advanced Materials Research (Volumes 129-131)
• Pages: 648-651
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.129-131.648
• Online since: August 2010
• Authors: Mehdi Soodi, Milan Brandt, Syed H. Masood
• Keywords: Direct Metal Deposition (DMD), Hardness, Laser, Material, Microstructure

References

[1] J. Mazumder. A. Schifferer. J. Choi: Direct Material Deposition: Designed macro and microstructure, Centre for laser Aided Intelligent Manufacturing, University of Michigan, 2250 G. G. Brown, 2350 Hayward, Ann Arbor, MI 48109-2125, USA, Materials Research Innovations (1999).

DOI: 10.1007/s100190050137

[2] L. Thivillon, D. Pervushin, Ph. Bertand, I. Smurov: Industrial Technology of laser assisted direct metal deposition, Ecole Nationale d'Ingenieurs de Saint-Etienne (Enise), DIPI Laboratory, Saint-Etienne, FR.

[3] Zhang, W. , Yao, J. , Peng, W., Dong, C., Tang, X.: Research on microstructure and properties of 2Cr13 stainless steel parts made by laser direct metal deposition, Research Center of Laser Processing Technology and Engineering, Key Laboratory of Mechanical Manufacture and Automation, Zhejiang University of Technology, Hangzhou 310014, China, Zhongguo Jiguang/Chinese Journal of Lasers Volume 35, Issue 11, November (2008).

DOI: 10.3788/cjl20083511.1830

[4] Yarrapareddy, E., Carbone, F., Valant, M., Kovacevic, R.: Mechanical and microstructural characterization of inconel 718 3D direct metal depositions by electron beam, International SAMPE Symposium and Exhibition (Proceedings), Volume 50, (2005).

[5] Angelastro, A. , Campanelli, S.L. , Ludovico, A.D.: Characterization of colmonoy 227-F samples obtained by direct laser metal deposition, Department of Mechanical and Management Engineering, Polytechnic of Bari, viale Japigia 126, 70126, Bari, Italy Advanced Materials Research Volume 83-86, (2010).

DOI: 10.4028/www.scientific.net/amr.83-86.842

[6] Qi, H., Azer, M., Ritter, A: Studies of standard heat treatment effects on microstructure and mechanical properties of laser net shape manufactured INCONEL 718, Metallurgical and Materials Transactions A: Physical Metallurgy and Materials Science Volume 40, Issue 10, (2009).

DOI: 10.1007/s11661-009-9949-3
