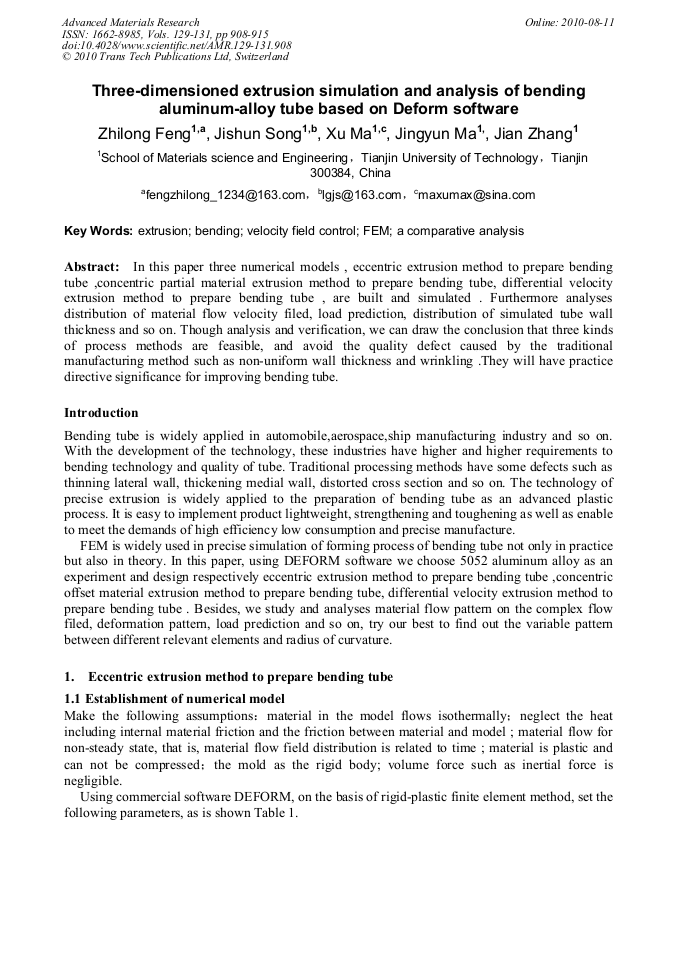

Three-Dimensioned Extrusion Simulation and Analysis of Bending Aluminum-Alloy Tube Based on Deform Software

Abstract:

In this paper three numerical models , eccentric extrusion method to prepare bending tube ,concentric partial material extrusion method to prepare bending tube, differential velocity extrusion method to prepare bending tube , are built and simulated . Furthermore analyses distribution of material flow velocity filed, load prediction, distribution of simulated tube wall thickness and so on. Though analysis and verification, we can draw the conclusion that three kinds of process methods are feasible, and avoid the quality defect caused by the traditional manufacturing method such as non-uniform wall thickness and wrinkling .They will have practice directive significance for improving bending tube.

• Periodical: Advanced Materials Research (Volumes 129-131)
• Pages: 908-915
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.129-131.908
• Online since: August 2010
• Authors: Zhi Long Feng, Ji Shun Song, Xu Ma, Jing Yun Ma, Zhang Jian
• Keywords: Bending, Comparative Analysis, Extrusion, Finite Element Model (FEM), Velocity Field Control

References

[1] Mei Zhan, He Yang, Bill Kong . Pipe Bending research status and development trend of [J]. Mechanical Science and Technology, 2004, 23 (12): 1509-1513.

[2] Muller, Klaus B. Bending of Extruded Profiles During Extrusion Process. International Journal of Machine Tools and Manufacture, v 46, n 11 SPEC. ISS., September, 2006, pp.1238-1242.

DOI: 10.1016/j.ijmachtools.2006.01.036

[3] Hua Zhang, Jianguo Hu, Ya Zhou. Tube Bending Process Simulation [J]. Metal Forming Process, 2004, 22 (2).

[4] Chen, F. -K., et al., Finite element analysis of multi-hole extrusion of aluminum-alloy tubes, J. Mater. Process . Tech. (2008), doi: 10. 1016/j. jmatprotec. 2007. 11. 292.

[5] Xiaoang Zhang, DaXin He, Huahui He, etc. Experimental analysis and finite element simulation of the wall thickness in tube bending[J]. Modern Manufacturing Engineering 2007, 11: 56-59.

[6] Klaus B. Muller. Bending of extruded profiles during extrusion process. International Journal of Machine Tools & Manufacture 46 (2006) 1238-1242.

DOI: 10.1016/j.ijmachtools.2006.01.036

[7] C. KAYA，S. BLACKBURN. Extrusion of alumina ceramic tubes with controlled bends，J. JOURNAL OF MATERIALS SCIENCE 40 (2005) 2007 - (2011).

DOI: 10.1007/s10853-005-1224-4

[8] Chen, F. -K., et al., Finite element analysis of multi-hole extrusion of aluminum-alloy tubes, J. Mater. Process. Tech. (2008), doi: 10. 1016/j. jmatprotec. 2007. 11. 292.

[9] Jingan Liu. Aluminum Extrusion Die Design, Manufacture, Use and Maintenance [M], Beijing: Metallurgy Industry Press, (2002).

[10] Shangjian Li. Metal forming process simulation [M], Beijing: Mechanical Industry Press, (2002).
