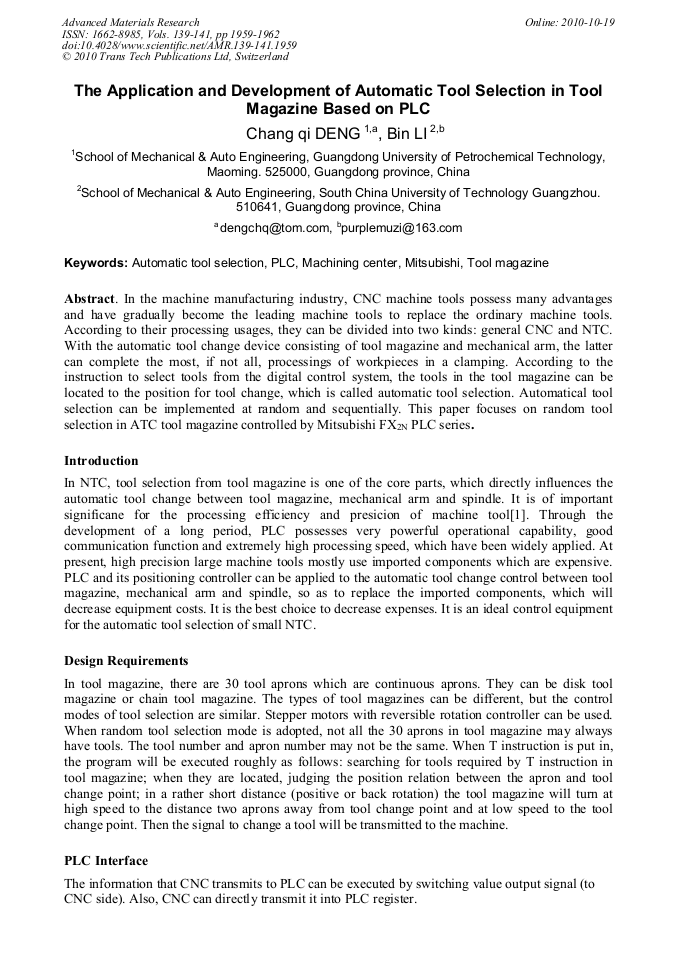

The Application and Development of Automatic Tool Selection in Tool Magazine Based on PLC

Abstract:

In the machine manufacturing industry, CNC machine tools possess many advantages and have gradually become the leading machine tools to replace the ordinary machine tools. According to their processing usages, they can be divided into two kinds: general CNC and NTC. With the automatic tool change device consisting of tool magazine and mechanical arm, the latter can complete the most, if not all, processings of workpieces in a clamping. According to the instruction to select tools from the digital control system, the tools in the tool magazine can be located to the position for tool change, which is called automatic tool selection. Automatical tool selection can be implemented at random and sequentially. This paper focuses on random tool selection in ATC tool magazine controlled by Mitsubishi FX2N PLC series.

• Periodical: Advanced Materials Research (Volumes 139-141)
• Pages: 1959-1962
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.139-141.1959
• Online since: October 2010
• Authors: Chang Qi Deng, Bin Li
• Keywords: Automatic Tool Selection, Machining Center, Mitsubishi, Programmable Logic Controller (PLC), Tool Magazine

References

[1] W.F. Chen: Digital Control Technology of Machine Tool and Its Application (Science Press, China 2005).

[2] X.G. Liao and Q.Q. Zhu Digital Control Machine Tool (Central China University of Science and Technology Press, China 2007).

[3] MITSUBISHI ELECTRIC CORPORATION. FX Series Programmable Controllers Programming Manual(Japan 2000).

[4] MITSUBISHI ELECTRIC CORPORATION. FX2N Series Programmable Controllers Hardware Manual, (Japan 1999).

[5] MITSUBISHI ELECTRIC CORPORATION. FX2N-2DA Special Function Block User's Guide(Japan 2001).

[6] MITSUBISHI ELECTRIC CORPORATION. FX2N-4DA Special Function Block User's Guide(Japan 1997) Fig. 4 Program flowchart.
