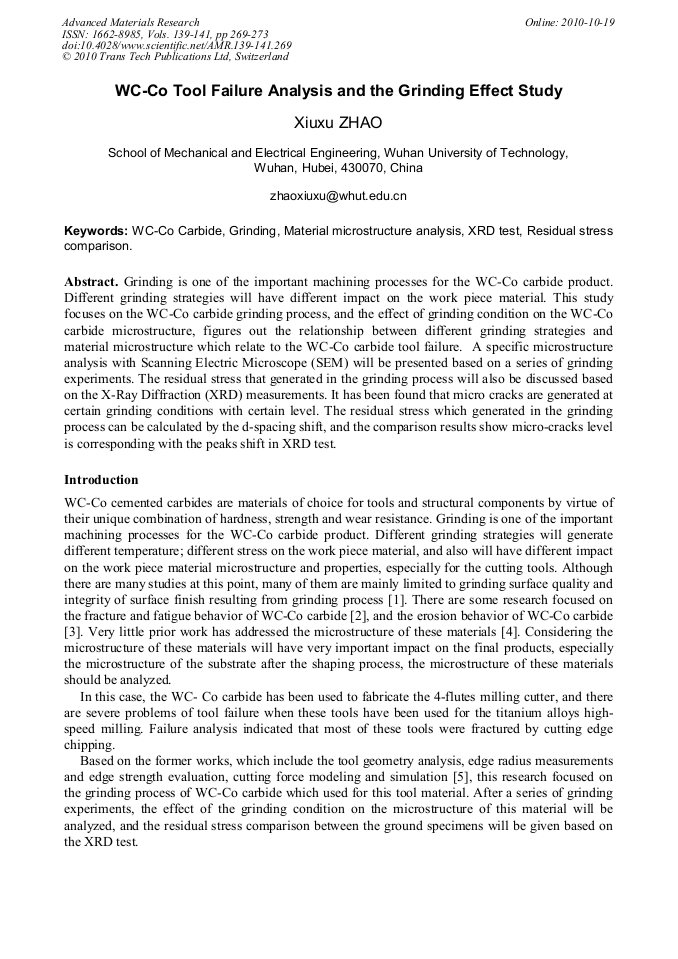

WC-Co Tool Failure Analysis and the Grinding Effect Study

Abstract:

Grinding is one of the important machining processes for the WC-Co carbide product. Different grinding strategies will have different impact on the work piece material. This study focuses on the WC-Co carbide grinding process, and the effect of grinding condition on the WC-Co carbide microstructure, figures out the relationship between different grinding strategies and material microstructure which relate to the WC-Co carbide tool failure. A specific microstructure analysis with Scanning Electric Microscope (SEM) will be presented based on a series of grinding experiments. The residual stress that generated in the grinding process will also be discussed based on the X-Ray Diffraction (XRD) measurements. It has been found that micro cracks are generated at certain grinding conditions with certain level. The residual stress which generated in the grinding process can be calculated by the d-spacing shift, and the comparison results show micro-cracks level is corresponding with the peaks shift in XRD test.

• Periodical: Advanced Materials Research (Volumes 139-141)
• Pages: 269-273
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.139-141.269
• Online since: October 2010
• Authors: Xiu Xu Zhao
• Keywords: Grinding, Material Microstructure Analysis, Residual Stress Comparison, WC-Co Carbide, XRD Test

References

[1] Ling Yin · J.P. Pickering · K. Ramesh · H. Huang · A.C. Spowage · E.Y.J. Vancoille , Planar nanogrinding of a fine grained WC-Co composite for an optical surface finish, Int J Adv Manuf Technol (2005) 26, pp.766-773.

DOI: 10.1007/s00170-004-2056-0

[2] J. K. N. Murthy, D. S. Rao and B. Venkataraman , Effect of grinding on the erosion behaviour of a WC-Co-Cr coating deposited by HVOF and detonation gun spray processes, Wear, Volume 249, Issue 7, July 2001, pp.592-600.

DOI: 10.1016/s0043-1648(01)00682-2

[3] Ling Yin, A. C. Spowage, K. Ramesh, H. Huang, J. P. Pickering and E. Y. J. Vancoille, Influence of microstructure on ultraprecision grinding of cemented carbides, International Journal of Machine Tools and Manufacture, Volume 44, Issue 5, April 2004, Pages pp.533-543.

DOI: 10.1016/j.ijmachtools.2003.10.022

[4] B. Casas, Y. Torres and L. Llanes, Fracture and fatigue behavior of electrical-discharge machined cemented carbides, International Journal of Refractory Metals and Hard Materials , Volume 24, Issues 1-2 , January-March 2006, Pages pp.162-167.

DOI: 10.1016/j.ijrmhm.2005.04.007

[5] ZHAO Xiuxu , MEYER Kevin , HE Rui, YU Cindy, NI Jun , Tool Failure Analysis in High Speed Milling of Titanium Alloys, Proceeding of the 1st International Conference of Digital Manufacturing, Wuhan, China, Oct. 2006, pp.137-142.

[6] D. HAN, J. J. MECHOLSKY, Fracture analysis of cobalt-bonded tungsten carbide composites, JOURNAL OF MATERIALS SCIENCE 25 (1990) pp.4949-4956.

DOI: 10.1007/bf00580112

[7] F. F. LANGE, J. Amer. Ceram. Soc. 66 (1983) 396. R. W. RICE, in Processing of Crystalline Ceramics, edited by H.H. Palmour, R. F. Davis and T. M. Hare (Plenum, New York 1978) p.303.

[8] J. HEINRICH and D. MUNZ, Amer. Ceram. Soc. Bull. 59 (1980) 1221. J. P. SINGH, Adv. Ceram. Mater. 3 (1988) 18.

[9] B.D. Cullity, Elements of X-ray Diffraction (2nd ed. ), Addison-Wesley, MA (1978).

[10] C. Kim In: J.C. Russ, C.S. Barrett, P.K. Predecki and D.E. Leyden, Editors, Advances in X-ray Analysis vol. 25, University of Denver/Plenum Press, New York (1982) p.343.
