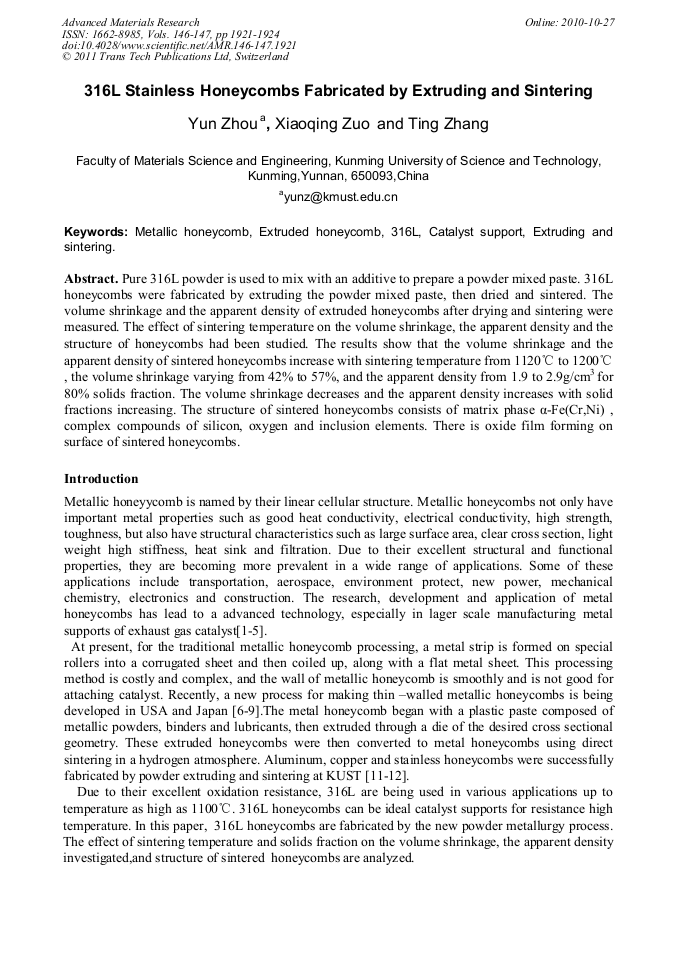

316L Stainless Honeycombs Fabricated by Extruding and Sintering

Abstract:

Pure 316L powder is used to mix with an additive to prepare a powder mixed paste. 316L honeycombs were fabricated by extruding the powder mixed paste, then dried and sintered. The volume shrinkage and the apparent density of extruded honeycombs after drying and sintering were measured. The effect of sintering temperature on the volume shrinkage, the apparent density and the structure of honeycombs had been studied. The results show that the volume shrinkage and the apparent density of sintered honeycombs increase with sintering temperature from 1120°C to 1200°C , the volume shrinkage varying from 42% to 57%, and the apparent density from 1.9 to 2.9g/cm3 for 80% solids fraction. The volume shrinkage decreases and the apparent density increases with solid fractions increasing. The structure of sintered honeycombs consists of matrix phase α-Fe(Cr,Ni) , complex compounds of silicon, oxygen and inclusion elements. There is oxide film forming on surface of sintered honeycombs.

• Periodical: Advanced Materials Research (Volumes 146-147)
• Pages: 1921-1924
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.146-147.1921
• Online since: October 2010
• Authors: Yun Zhou, Xiao Qing Zuo, Ting Zhang
• Keywords: 316L, Catalyst Support, Extruded Honeycomb, Extruding, Metallic Honeycomb, Sintering

References

[1] B.M. Dempsey, S. Eisele, D.L. McDowell: Int. J. Heat Mass Transfer. Vol. 48 (2005), p.527.

[2] A. M. Hayes, A.J. Wang, B. M. Dempsey, D. L. McDowell: Mech. Mater. Vol. 36 (2004), p.691.

[3] T. Uda, M. Tanaka, K. Munakata: Fusion Engineering and Design, Vol. 83 (2008), p.1715.

[4] C. G. Visconti, E. Tronconi, L. Lietti, et al: Applied Catalysis A: General, Vol. 370( 2009), p.93.

[5] Seely, L Richard, U.S. Patent 6, 302, 679(2001).

[6] Y. Mikio, F. Masuhiro, F. Nobuhiro, WO 9, 417, 911 (1994).

[7] J. Cochran, K.J. Lee, , D. McDowell, T. Sanders, H, Multifunctional Metallic Honeycombs by thermal chemical processing. In: Processing and Properties of Lightweight Cellular Metals and Structures, edited by A. Ghosh,T. Sanders,D. Claar , TMS，2002, p.127.

[8] J. L. Clark，J Cochran，H. Thomas，K. J. Lee, Metal Honeycomb from Oxide paste：Maraging Steel and Super Invar structure and properties, In: Processing and Properties of Lightweight Cellular Metals and Structures, edited by A. Ghosh,T. Sanders,D. Claar, TMS，2002, p.116.

[9] A. M. Hayes, D. McDowell, J. Cochran, Properties of Maraging Steel Honeycomb under Compressive Quasistatic and Dynamic Loading, In: Processing and Properties of Lightweight Cellular Metals and Structures , edited by A. Ghosh,T. Sanders,D. Claar , TMS 2002, p.137.

[10] K.M. Hurysz, J. Cochran, T. Sanders, Modeling Powder Extrusion Pastes for Forming Light Weight Multifunctional Structures, In: In: Processing and Properties of Lightweight Cellular Metals and Structures , edited by A. Ghosh,T. Sanders,D. Claar, TMS 2002, p.167.

[11] Y. Zhou, X.Q. Zuo, J.H. Sun, J. Mei, J.L. Sun: Materials Science and Engineering A, Vol. 457 (2007), p.329.

[12] Y. Zhou, X.Q. Zuo, X.Q. Zhang, J. Mei, J.L. Sun: Journal of Materials Science & Engineering (in Chinese), Vol. 23(2005), p.504.
