Improved Photoelectrochemical Properties of Cu-Loaded TiO2 Nanotubes

Xin Sheng Yang; Hern Kim

doi:10.4028/www.scientific.net/AMR.148-149.1083

Paper Titles

Sol-Gel Synthesis and Characterization of BaAl₂O₄ and Co: BaAl₂O₄ Nanoparticles
p.1067

Study on Wall Thickness Eccentricity of Seamless Steel Tube
p.1071

Robust Multiscale Design Using PATC and WSRSM
p.1075

Nanometer Anatase Titania Synthesis by Reverse Titration Method and Evaluation of their Photocatalytic Activity
p.1079

Improved Photoelectrochemical Properties of Cu-Loaded TiO₂ Nanotubes
p.1083

Fluorescent Properties of Zn-Al Hydrotalcite and its Modified Products
p.1087

Structure and Dielectric Tunability of Ba (Ti_1-yZr_y)O₃ Ferroelectric Ceramics
p.1091

Novel Base Catalysts by Nitridation of Zeolite Y: Characterization and Catalytic Evaluation
p.1096

Preparation and Characterization of the Oxime Carbapalladacycle Complex Grafted onto Mesoporous SiO₂@Fe₃O₄ Nanocomposite for the Heck Reaction
p.1100

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 148-149Improved Photoelectrochemical Properties of...

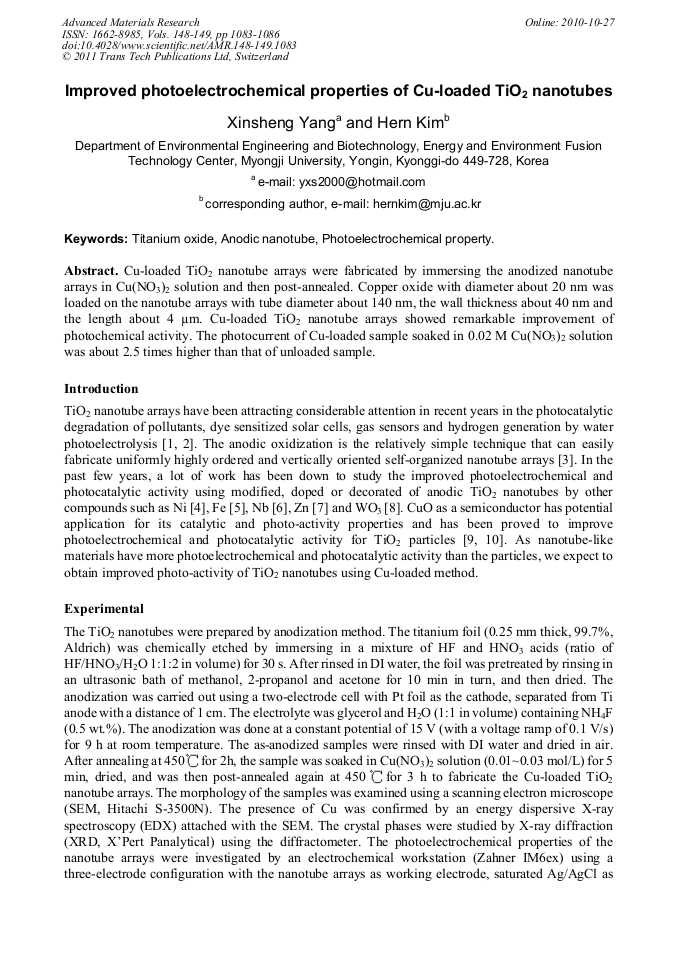

Improved Photoelectrochemical Properties of Cu-Loaded TiO₂ Nanotubes

Abstract:

Cu-loaded TiO2 nanotube arrays were fabricated by immersing the anodized nanotube arrays in Cu(NO3)2 solution and then post-annealed. Copper oxide with diameter about 20 nm was loaded on the nanotube arrays with tube diameter about 140 nm, the wall thickness about 40 nm and the length about 4 µm. Cu-loaded TiO2 nanotube arrays showed remarkable improvement of photochemical activity. The photocurrent of Cu-loaded sample soaked in 0.02 M Cu(NO3)2 solution was about 2.5 times higher than that of unloaded sample.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 148-149)

Pages:

1083-1086

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.148-149.1083

Citation:

Cite this paper

Online since:

October 2010

Authors:

Xin Sheng Yang, Hern Kim

Keywords:

Anodic Nanotube, Photoelectrochemical Property, Titanium Oxide

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] J. M. Macak, H. Tsuchiya, A. Ghicov, K. Yasuda, R. Hahn, S. Bauer, P. Schmuki: Curr. Opin. Solid State Mater. Sci. Vol. 11 (2007), p.3.

Google Scholar

[2] G. L. Mor, O. K. Varghese, M. Paulose, K. Shankar, C. A. Grimes: Sol. Energy Mater. Sol. Cells Vol. 90 (2006), p. (2011).

Google Scholar

[3] K. Kant and D. Losic: Phys. Status Solidi PRL Vol. 3 (2009), p.139.

Google Scholar

[4] Y. Zhang, Y. Yang, P. Xiao, X. Zhang, L. Lu, L. Li: Mater. Lett. Vol. 63 (2009), p.2429.

Google Scholar

[5] L. Sun, J. Li, C. L. Wang, S. F. Li, H. B. Chen, C. J. Lin: Sol. Energy Mater. Sol. Cells Vol. 93 (2009), p.1875.

Google Scholar

[6] D. Ding, C. Ning, L. Huang, F. Jin, Y. Hao, S. Bai, Y. Li, M. Li, D. Mao: Nanotechnology Vol. 20 (2009), p.305103.

DOI: 10.1088/0957-4484/20/30/305103

Google Scholar

[7] H. Zhao, Y. Chen, X. Quan, X. Ruan: Chin. Sci. Bull. Vol. 52 (2007), p.1456.

Google Scholar

[8] A. Benoit, I. Paramasivam, Y. -C. Nah, P. Roy, P. Schmuki: Electrochem. Commun. Vol. 11 (2009), p.728.

Google Scholar

[9] N. L. Wu, M. S. Lee: Int. J. Hydrogen Energy Vol. 29 (2004), p.1601.

Google Scholar

[10] V. Gombac, et al. : J. Phys. Chem. A. Vol. 114 (2010), p.3916.

Google Scholar

[11] K. Yasuda, J. M. Macak, S. Berger, A. Ghicov, P. Schmuki: J. Electrochem. Soc. Vol. 154 (2009), p. C472.

Google Scholar
