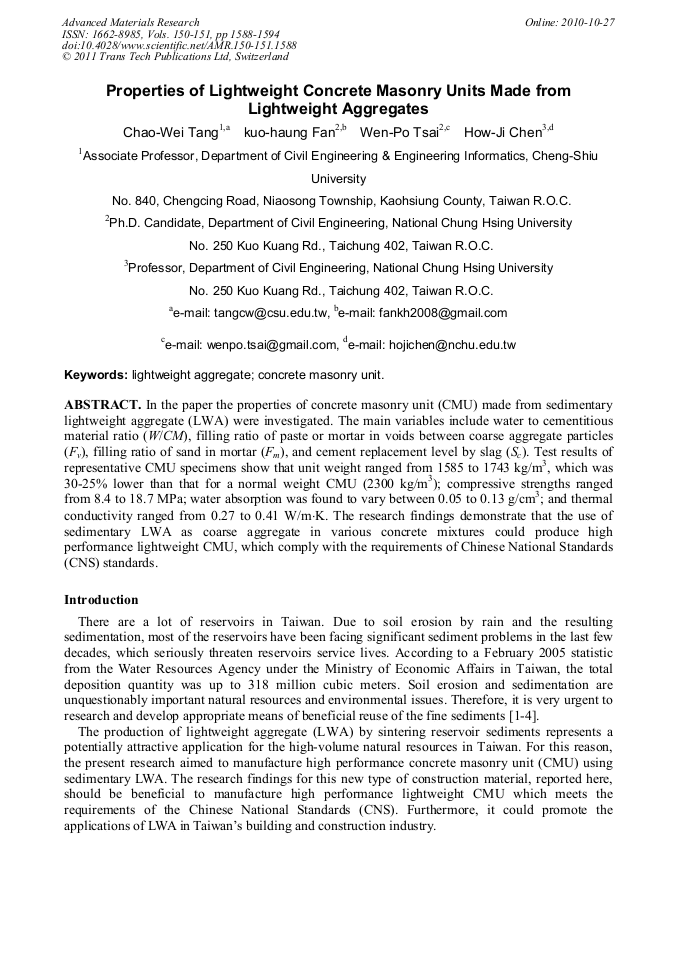

Properties of Lightweight Concrete Masonry Units Made from Lightweight Aggregates

Abstract:

In the paper the properties of concrete masonry unit (CMU) made from sedimentary lightweight aggregate (LWA) were investigated. The main variables include water to cementitious material ratio (W/CM), filling ratio of paste or mortar in voids between coarse aggregate particles (Fv), filling ratio of sand in mortar (Fm), and cement replacement level by slag (Sc). Test results of representative CMU specimens show that unit weight ranged from 1585 to 1743 kg/m3, which was 30-25% lower than that for a normal weight CMU (2300 kg/m3); compressive strengths ranged from 8.4 to 18.7 MPa; water absorption was found to vary between 0.05 to 0.13 g/cm3; and thermal conductivity ranged from 0.27 to 0.41 W/mK. The research findings demonstrate that the use of sedimentary LWA as coarse aggregate in various concrete mixtures could produce high performance lightweight CMU, which comply with the requirements of Chinese National Standards (CNS) standards.

• Periodical: Advanced Materials Research (Volumes 150-151)
• Pages: 1588-1594
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.150-151.1588
• Online since: October 2010
• Authors: Chao Wei Tang, Kuo Haung Fan, Wen Po Tsai, How Ji Chen
• Keywords: Concrete Masonry Unit, Lightweight Aggregate

References

[1] Mun KJ. Development and tests of lightweight aggregate using sewage sludge for nonstructural concrete. Construction and Building Materials 2007; 22: 1583–1588.

DOI: 10.1016/j.conbuildmat.2005.09.009

[2] Tay JH, Show KY. Resource recovery of sludge as a building and construction material – a future trend in sludge management. Water Sci. Technol. 1997; 36 (11): 256–266.

DOI: 10.2166/wst.1997.0419

[3] Chiou IJ, Wang KS, Chen CH, Lin, YT. Lightweight aggregate made from sewage sludge and incinerated ash. Waste Management 2006; 26: 1453–1461.

DOI: 10.1016/j.wasman.2005.11.024

[4] Andrade LB, Rocha JC, Cheriaf M. Evaluation of concrete incorporating bottom ash as a natural aggregates replacement. Waste Management 2007; 27: 1190–1199.

DOI: 10.1016/j.wasman.2006.07.020

[5] Holm TA., Ries JP. Reference Manual for the Properties and Applications of Expanded Shale, Clay and Slate Lightweight Aggregate. Prepared by Expanded Shale, Clay and Slate Institute, (2007).

[6] CNS 7332. Method of determination for thermal conductivity of heat insulating materials by means of comparison with a standard plate of known conductivity. Bureau of Standards, Metrology & Inspection, M.O.E.A., R.O.C.; (2007).

[7] CNS 8905. Hollow concrete blocks. Bureau of Standards, Metrology & Inspection, M.O.E.A., R.O.C.; (2007).
