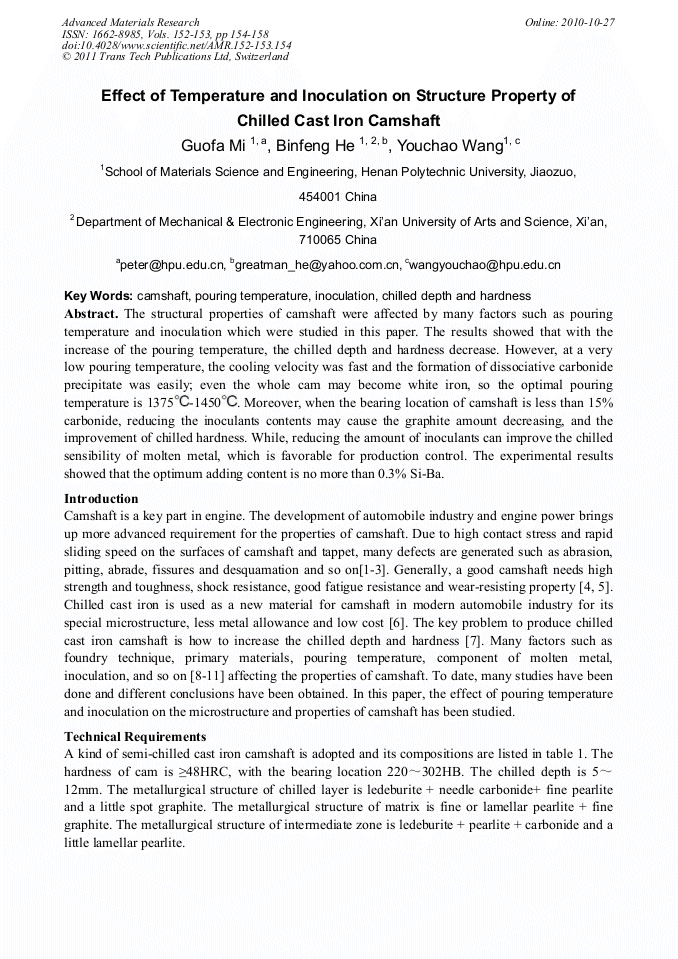

Effect of Temperature and Inoculation on Structure Property of Chilled Cast Iron Camshaft

Abstract:

The structural properties of camshaft were affected by many factors such as pouring temperature and inoculation which were studied in this paper. The results showed that with the increase of the pouring temperature, the chilled depth and hardness decrease. However, at a very low pouring temperature, the cooling velocity was fast and the formation of dissociative carbonide precipitate was easily; even the whole cam may become white iron, so the optimal pouring temperature is 1375 -1450 . Moreover, when the bearing location of camshaft is less than 15% carbonide, reducing the inoculants contents may cause the graphite amount decreasing, and the improvement of chilled hardness. While, reducing the amount of inoculants can improve the chilled sensibility of molten metal, which is favorable for production control. The experimental results showed that the optimum adding content is no more than 0.3% Si-Ba.

• Periodical: Advanced Materials Research (Volumes 152-153)
• Pages: 154-158
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.152-153.154
• Online since: October 2010
• Authors: Guo Fa Mi, Bin Feng He, You Chao Wang
• Keywords: Camshaft, Chilled Depth, Hardness, Inoculation, Pouring Temperature

References

[1] Li Ping, Wei Bo-kang et al: Modern Cast Iron Vol. 1(2002), p.33～36.

[2] Cai Qi-zhou, Wei Bo-kang et al: Modern Cast Iron Vol. 5(2005), p.9～12.

[3] Jin Yong-xi: Modern Cast Iron Vol. 5(2005), p.1～8.

[4] Fan Hong-yuan, Li Wei et al: China Foundry Machinery & Technology Vol. 5(2001), p.13～16.

[5] Zhang Zhi-jun: Heat Treatment of Metals Vol. 10(1999), p.31～32.

[6] Du Jun, Liu Yao-hui et al: Modern Cast Iron Vol. 1(2002), p.24～28.

[7] Pan Li-gu: China Foundry Machinery & Technology Vol. 3(2005), p.38～40.

[8] Pan Li-gu: China Foundry Machinery & Technology Vol. 3(2006), p.55～57.

[9] Zhao Shu-cheng: China Foundry Machinery & Technology Vol. 3(2001), p.3～7.

[10] Li Ping, Wei Bo-kang et al: China Foundry Machinery & Technology Vol. 5(2004), p.7～11.

[11] Xu Shi-zhong, Wang Wang: Modern Cast Iron Vol. 4(2003), p.44～45.

[12] Zhang Zhao-yun, Xu Chun-jie et al: Foundry Technology Vol. 24(2003), p.283～284.

[13] Li Ping, Wei Bo-kang et al: China Foundry Machinery & Technology Vol. 6(2003), p.35～37.

[14] Liu Sanxing, Xie Qingyun: Hot Working Technology Vol. 1(1994), p.34～35.

[15] He Jiang-ai, Zhao Pei-lin et al: Journal of Northeastern University (Natural Science) Vol. 26(2005), p.359～362.
