Preparation and Performance of Single Walled Carbon Nanotubes Supported Anode Catalysts (20%Pt-10%Ru) of Direct Methanol Fuel Cell

Bo Quan Jiang; Zhen Yu Gong; Min Wei Wang

doi:10.4028/www.scientific.net/AMR.156-157.1227

Paper Titles

Characters of Nickel-Loaded Activated Carbon Fibers and Adsorption Experiments of Gaseous Mercury
p.1211

Characterization of Coconut Shell Activated Carbon Obtained from By-Product of Preparation Process of Bio-Oil with Fast Pyrolysis
p.1215

Preparation and Electrochemical Performance of Li₃V₂(PO₄)₃ Cathode Materials by Microwave-Heated Sol-Gel Method
p.1219

Virtual Manufacture of the Twist Drill Flute in UG
p.1223

Preparation and Performance of Single Walled Carbon Nanotubes Supported Anode Catalysts (20%Pt-10%Ru) of Direct Methanol Fuel Cell
p.1227

Energy Consumption Analysis of Variable Flow Pump under Different Pipe Network
p.1232

Study on Tool Path Algorithm for Mushroom Blade Boot in 4_Axis Machining
p.1238

Parametric Design on Belt Conveyor Drums Based on VBA
p.1243

The Characteristics and Application of Water Quenched Slag Particles (WQSP) as Filter Media
p.1247

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 156-157Preparation and Performance of Single Walled...

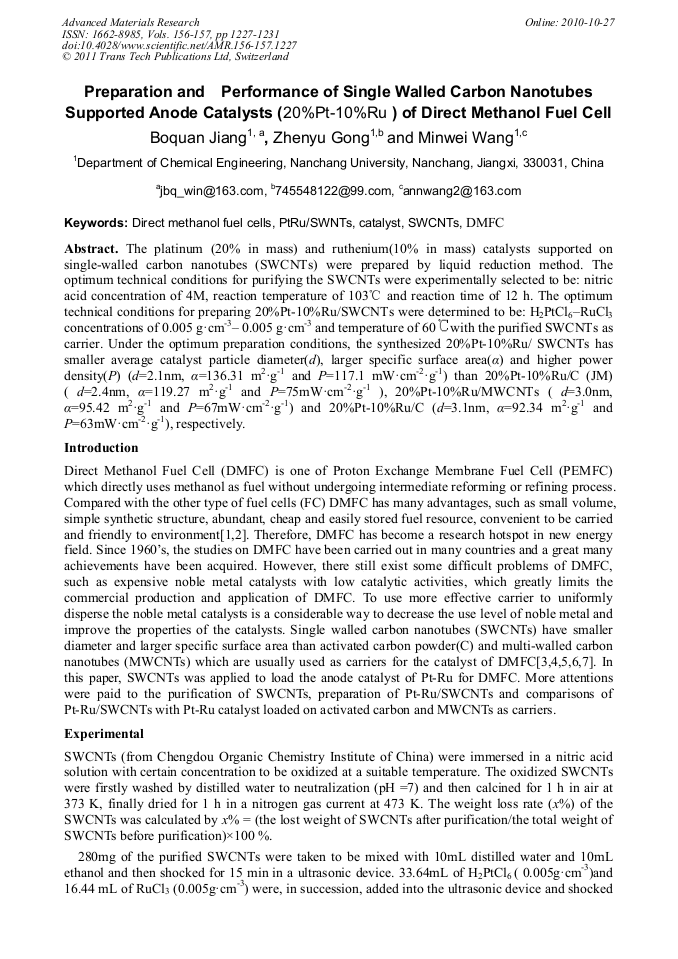

Preparation and Performance of Single Walled Carbon Nanotubes Supported Anode Catalysts (20%Pt-10%Ru) of Direct Methanol Fuel Cell

Abstract:

The platinum (20% in mass) and ruthenium(10% in mass) catalysts supported on single-walled carbon nanotubes (SWCNTs) were prepared by liquid reduction method. The optimum technical conditions for purifying the SWCNTs were experimentally selected to be: nitric acid concentration of 4M, reaction temperature of 103°C and reaction time of 12 h. The optimum technical conditions for preparing 20%Pt-10%Ru/SWCNTs were determined to be: H2PtCl6–RuCl3 concentrations of 0.005 g·cm-3– 0.005 g·cm-3 and temperature of 60 with the purified SWCNTs as carrier. Under the optimum preparation conditions, the synthesized 20%Pt-10%Ru/ SWCNTs has smaller average catalyst particle diameter(d), larger specific surface area(α) and higher power density(P) (d=2.1nm, α=136.31 m2·g-1 and P=117.1 mW·cm-2·g-1) than 20%Pt-10%Ru/C (JM) ( d=2.4nm, α=119.27 m2·g-1 and P=75mW·cm-2·g-1 ), 20%Pt-10%Ru/MWCNTs ( d=3.0nm, α=95.42 m2·g-1 and P=67mW·cm-2·g-1) and 20%Pt-10%Ru/C (d=3.1nm, α=92.34 m2·g-1 and P=63mW·cm-2·g-1), respectively.
