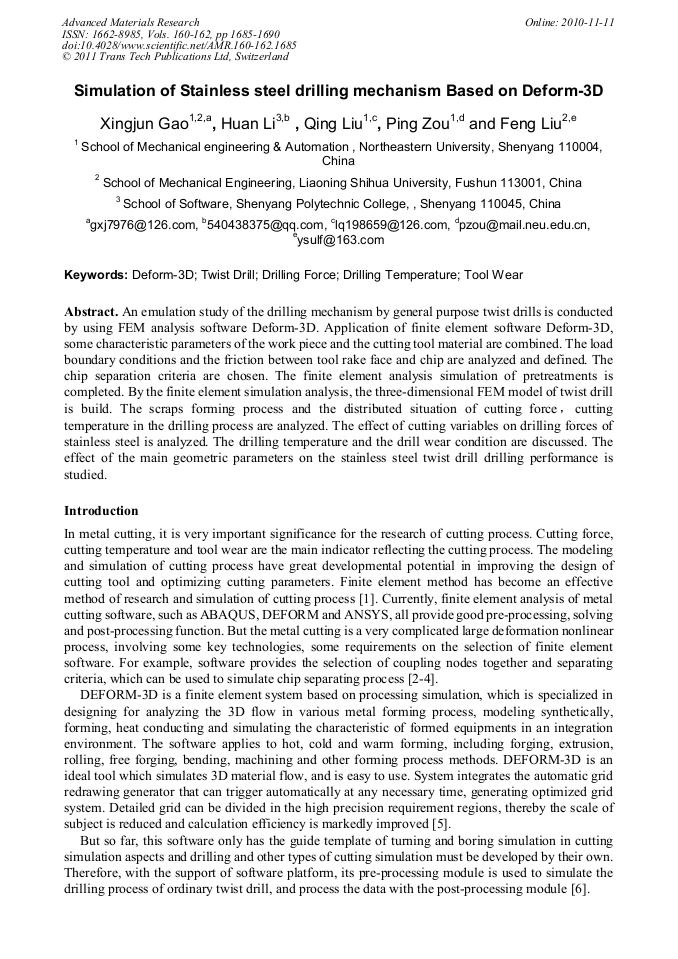

Simulation of Stainless Steel Drilling Mechanism Based on Deform-3D

Abstract:

An emulation study of the drilling mechanism by general purpose twist drills is conducted by using FEM analysis software Deform-3D. Application of finite element software Deform-3D, some characteristic parameters of the work piece and the cutting tool material are combined. The load boundary conditions and the friction between tool rake face and chip are analyzed and defined. The chip separation criteria are chosen. The finite element analysis simulation of pretreatments is completed. By the finite element simulation analysis, the three-dimensional FEM model of twist drill is build. The scraps forming process and the distributed situation of cutting force，cutting temperature in the drilling process are analyzed. The effect of cutting variables on drilling forces of stainless steel is analyzed. The drilling temperature and the drill wear condition are discussed. The effect of the main geometric parameters on the stainless steel twist drill drilling performance is studied.

• Periodical: Advanced Materials Research (Volumes 160-162)
• Pages: 1685-1690
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.160-162.1685
• Online since: November 2010
• Authors: Xing Jun Gao, Huan Li, Qing Liu, Ping Zou, Feng Liu
• Keywords: Deform 3D, Drilling Force, Drilling Temperature, Tool Wear, Twist Drill

References

[1] T. Li, L.Z. Gu: Tool Engineering Vol. 42 (2008), p.14 (in Chinese).

[2] K. Komvopoulos, A. Erpenbeck: J. Eng. Ind. Vol. 113 (1991), p.25.

[3] Z.G. Huang, Y.L. Ke: China Mechanical Engineering Vol. 14 (2003), p.846 (in Chinese).

[4] W.J. Deng, W. Xia: Tool Engineering Vol. 38 (2004), p.20.

[5] C.M. Li, X.L. Wang and H.J. Yan: DEFORM5. 03 examples guide tutorial of metal forming finite element analysis (Machinery Industry Press, China 2006).

[6] J. Yang, L.P. Zhou and N.Z. Wu: Tool Engineering Vol. 41 (2007), p.50.

[7] T.M. Hossainy, M.H. Shazly and M. Rabou: Mater Manuf Processes Vol. 16 (2001), p.803.

[8] G. Warnecke, J.D. Oh: CIRP Ann Vol. 51 (2002), p.79.

[9] R.R. Chen: Principles of Metal Cutting (Machinery Industry Press, China 1992).

[10] H.R. Xu, Y. Cao and J. Zhang: Precise Manufacturing & Automation Vol. 164 (2005), p.21 (in Chinese).

[11] Q.P. Yang: Huo Li Vol. 9 (2009), p.76 (in Chinese).

[12] X.B. Wang, H. Lei: Tool Engineering Vol. 33 (1999), p.11 (in Chinese).

[13] Y.P. Zhang: Tool Engineering Vol. 41 (2007), p.55 (in Chinese).
