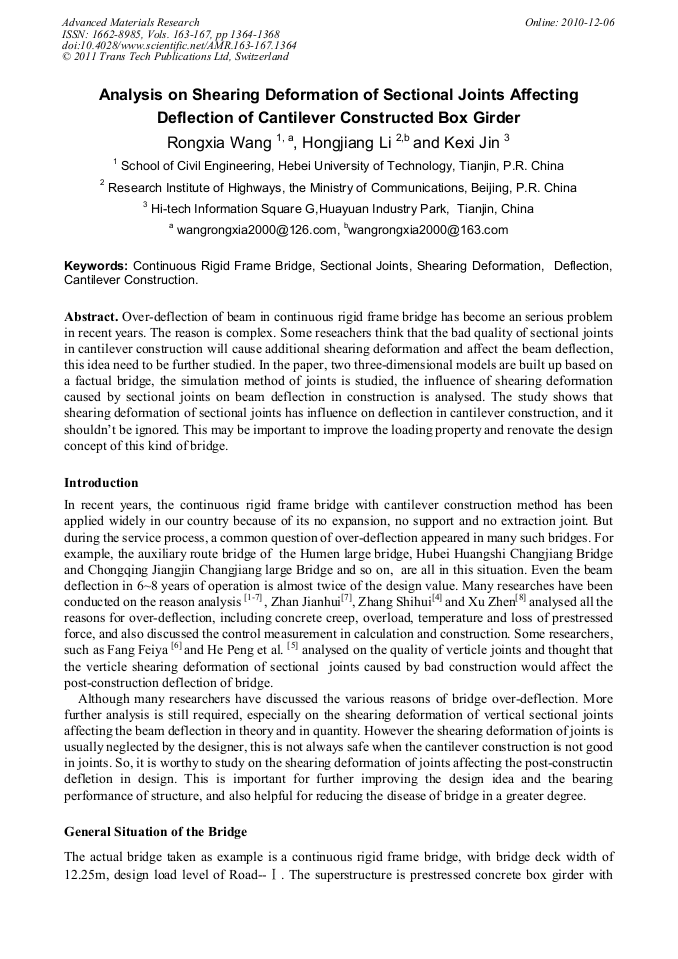

Analysis on Shearing Deformation of Sectional Joints Affecting Deflection of Cantilever Constructed Box Girder

Abstract:

Over-deflection of beam in continuous rigid frame bridge has become an serious problem in recent years. The reason is complex. Some reseachers think that the bad quality of sectional joints in cantilever construction will cause additional shearing deformation and affect the beam deflection, this idea need to be further studied. In the paper, two three-dimensional models are built up based on a factual bridge, the simulation method of joints is studied, the influence of shearing deformation caused by sectional joints on beam deflection in construction is analysed. The study shows that shearing deformation of sectional joints has influence on deflection in cantilever construction, and it shouldn’t be ignored. This may be important to improve the loading property and renovate the design concept of this kind of bridge.

• Periodical: Advanced Materials Research (Volumes 163-167)
• Pages: 1364-1368
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.163-167.1364
• Online since: December 2010
• Authors: Rong Xia Wang, Hong Jiang Li, Ke Xi Jin
• Keywords: Cantilever Construction, Continuous Rigid Frame Bridge, Deflection, Sectional Joint, Shearing Deformation

References

[1] Liu Shanhong, Qian Yongjiu: Journal of Chongqing Jiaotong University. Vol. 24(2005), p.19.

[2] Sun Junchao : Shanxi Architecture, in chinese . Vol. 33(2005), p.339.

[3] Wang Fawu : The study on the control of long-term deflection of large span prestressed concrete beam bridge. Master's degree paper of Tongji University(2006), p.60~80.

[4] Zhang Shihui: The analysis on reason of the overdeflection and construction control of large span prestressed concrete continuous rigid frame bridge. Master's degree paper of Chongqing Jiaotong University (2007).

[5] He Peng, Zhou Zhixiang: Journal of Chongqing Jiaotong University, Vol. 23 (2004), P. 2~9.

[6] Fang Feiya: Shanghai Highway(2007), p.31~33.

[7] Zhan Jianhui, Chen Hui: Journal of China and Foreign Highway, Vol. 25(2005), p.56~58.

[8] Xu Zhen, Zhang Xuesong, Xu Junlan: Journal of Chongqing Jiaotong University, Vol . 26(2007), p.9~13.
