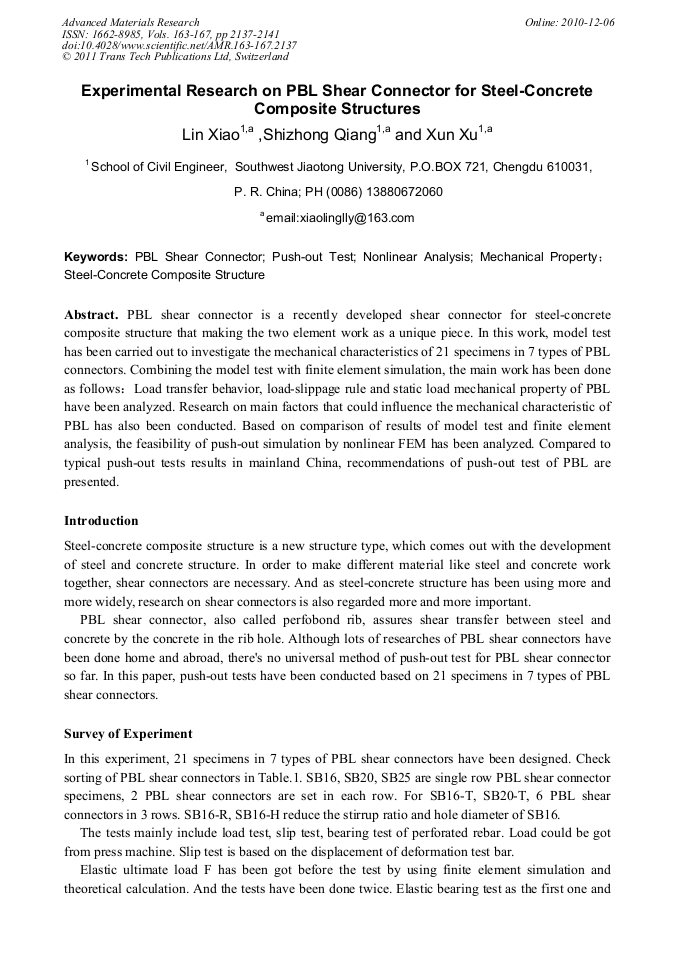

Experimental Research on PBL Shear Connector for Steel-Concrete Composite Structures

Abstract:

PBL shear connector is a recently developed shear connector for steel-concrete composite structure that making the two element work as a unique piece. In this work, model test has been carried out to investigate the mechanical characteristics of 21 specimens in 7 types of PBL connectors. Combining the model test with finite element simulation, the main work has been done as follows：Load transfer behavior, load-slippage rule and static load mechanical property of PBL have been analyzed. Research on main factors that could influence the mechanical characteristic of PBL has also been conducted. Based on comparison of results of model test and finite element analysis, the feasibility of push-out simulation by nonlinear FEM has been analyzed. Compared to typical push-out tests results in mainland China, recommendations of push-out test of PBL are presented.

• Periodical: Advanced Materials Research (Volumes 163-167)
• Pages: 2137-2141
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.163-167.2137
• Online since: December 2010
• Authors: Lin Xiao, Shi Zhong Qiang, Xun Xu
• Keywords: Mechanical Property, Non-Linear Analysis, PBL Shear Connector, Push-Out Test, Steel-Concrete Composite Structure

References

[1] Chen W.F. (1982). Concrete Elasticity and Failure Criteria,. Plasticity in reinforced concrete. McGraw-Hill, New York.

[2] E,C. Oguejiofor., and M,U. Hosain. (1994). A parametric study of perfoband rib shear connectors, . Canadian Journal of Civil Engineering. 21<4>, 614-625.

DOI: 10.1139/l94-063

[3] Jiang.J. J, Lu,X. Z and Ye.L.P. (2004). Finite Element Analysis of reinforced Concrete . Tsinghua University Press, Beijing.

[4] Nishiumi,K. (1999). Shear Strength of Perfobond Rib Shear Connector under the Confinement,. Journal of the Japan Society of Civil Engineers, Tokyo, No. 633.

DOI: 10.2208/jscej.1999.633_193

[5] Southwest Jiaotong University. (2003). Research and Model Test of Shear Connector in the Steel-Concrete Composite Segment of the 3RD Nanjing Yangtze River Bridge's Tower, Chengdu.

[6] Zong ,Z.H., and Che, H.M. (1999). Experimental Study of Shear Connector under Static and Fatigue Loading, Journal of Fuzhou University(Natural Science), Fuzhou, Vol. 27, No. 6: 61-66.

[7] Zhang Q.H., and Li,Q. (2005). Three-Dimensional Nonlinear FEA of PBL Shear connectors, Journal of Southwest Jiaotong University, Chengdu, Vol. 40, No. 5.

[8] Hu,J.H., Ye,M.X., and Huang,Q. (2006). Model Test of Bearing Capacity of PBL Shear Connector, Chinese Road Transaction, BeiJing, Vol. 19, No. 6.
