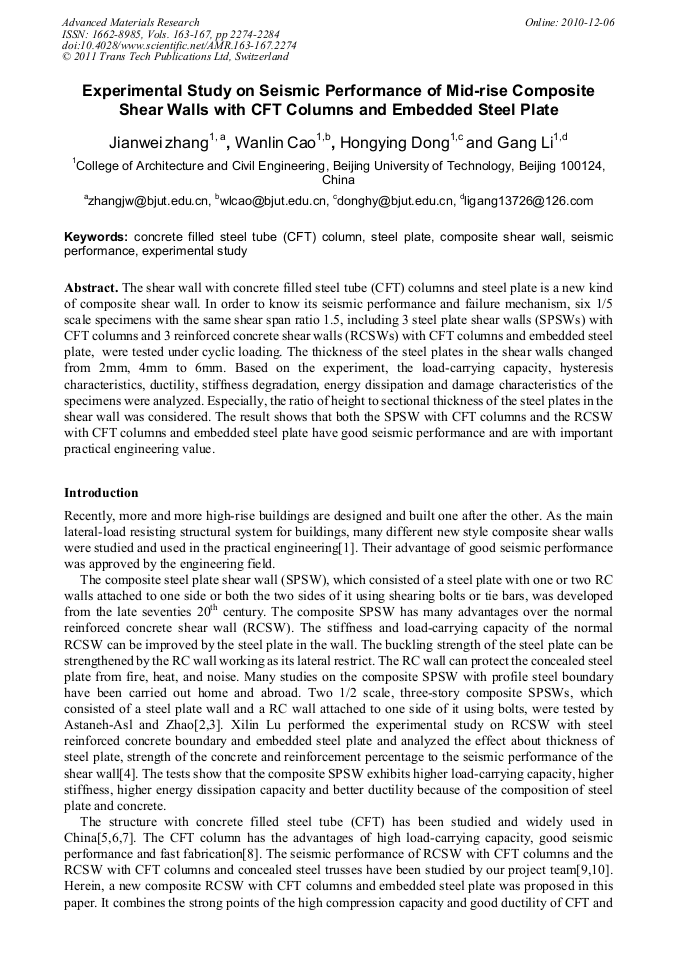

Experimental Study on Seismic Performance of Mid-Rise Composite Shear Walls with CFT Columns and Embedded Steel Plate

Abstract:

The shear wall with concrete filled steel tube (CFT) columns and steel plate is a new kind of composite shear wall. In order to know its seismic performance and failure mechanism, six 1/5 scale specimens with the same shear span ratio 1.5, including 3 steel plate shear walls (SPSWs) with CFT columns and 3 reinforced concrete shear walls (RCSWs) with CFT columns and embedded steel plate, were tested under cyclic loading. The thickness of the steel plates in the shear walls changed from 2mm, 4mm to 6mm. Based on the experiment, the load-carrying capacity, hysteresis characteristics, ductility, stiffness degradation, energy dissipation and damage characteristics of the specimens were analyzed. Especially, the ratio of height to sectional thickness of the steel plates in the shear wall was considered. The result shows that both the SPSW with CFT columns and the RCSW with CFT columns and embedded steel plate have good seismic performance and are with important practical engineering value.

• Periodical: Advanced Materials Research (Volumes 163-167)
• Pages: 2274-2284
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.163-167.2274
• Online since: December 2010
• Authors: Jian Wei Zhang, Wan Lin Cao, Hong Ying Dong, Gang Li
• Keywords: Composite Shear Wall, Concrete Filled Steel Tube Column, Experimental Study, Seismic Performance, Steel Plate

References

[1] Min Wang, Wanlin Cao and Jianwei Zhang. Journal of Earthquake Engineering and EngineeringVibration. Vol. 27(5) (2007), pp.80-87. ( in Chinese ).

[2] A. Astaneh-Asl and Q. Zhao. Seismic studies of an innovative and traditional composite shear walls. Composite and Hybrid Structures. Los Angeles, California: Association for International Cooperation and Research in Steel-Concrete Composite Structures, pp.1009-1024(2000).

[3] Q. Zhaoand A. Astaneh-Asl. Journal of Structural Engineering. Vol. 130(2) (2004), pp.271-284.

[4] Xilin Lu , Chunjie Gan, et al. Journal of Building Structures. Vol. 30(5) (2009), pp.89-96. ( in Chinese ).

[5] Zhongxian Li, Chengxiang Xu, Dong Wang, et al. Building Structure. ，Vol. 34(S1)(2004), pp.3-6. ( in Chinese ).

[6] Linhai Han, Zhong Tao and Wei Liu. Journal of Fuzhou University (NaturaL Science). Vol. 29(S6) (2001), pp.24-34. ( in Chinese ).

[7] Linhai Han. Industrial Construction. Vol. 28(S10) (1998), pp.1-5. ( in Chinese ).

[8] Shaohuai Cai. China Civil Engineering Journal. Vol. 32(S4) (1999), pp.17-25. ( in Chinese ).

[9] Wanlin Cao, Min Wang, Shaohe Wang, et al. Engineering Mechanics. Vol. 25(S1) (2008), pp.58-70. ( in Chinese ).

[10] Wanlin Cao, Yabin Yang and Jianwei Zhang. Journal of Southeast University(NaturaL Science). Vol. 39(S6) (2009), pp.1187-1192. ( in Chinese ).
